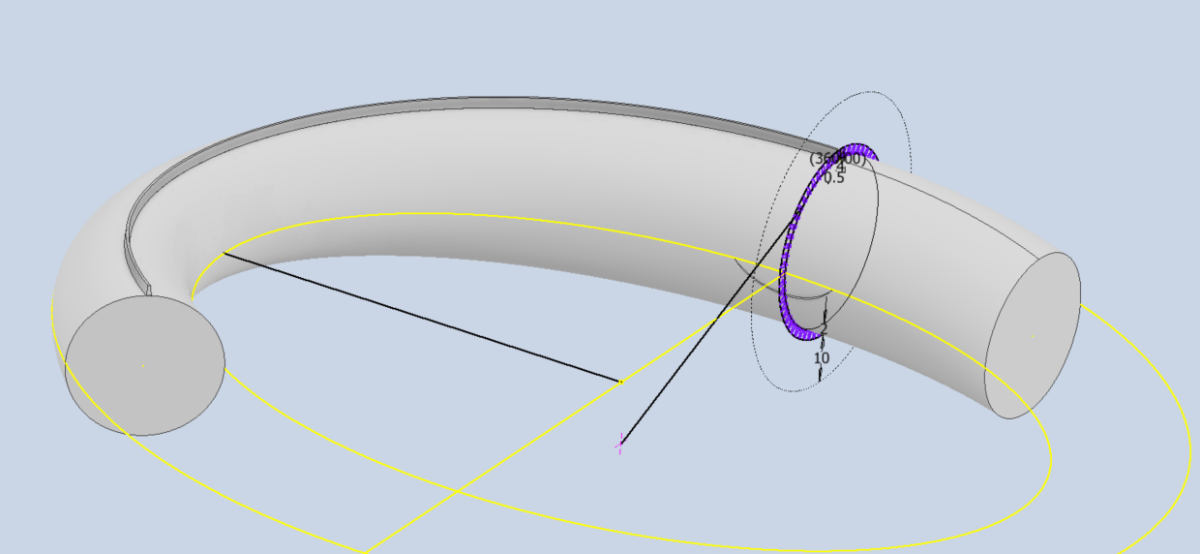

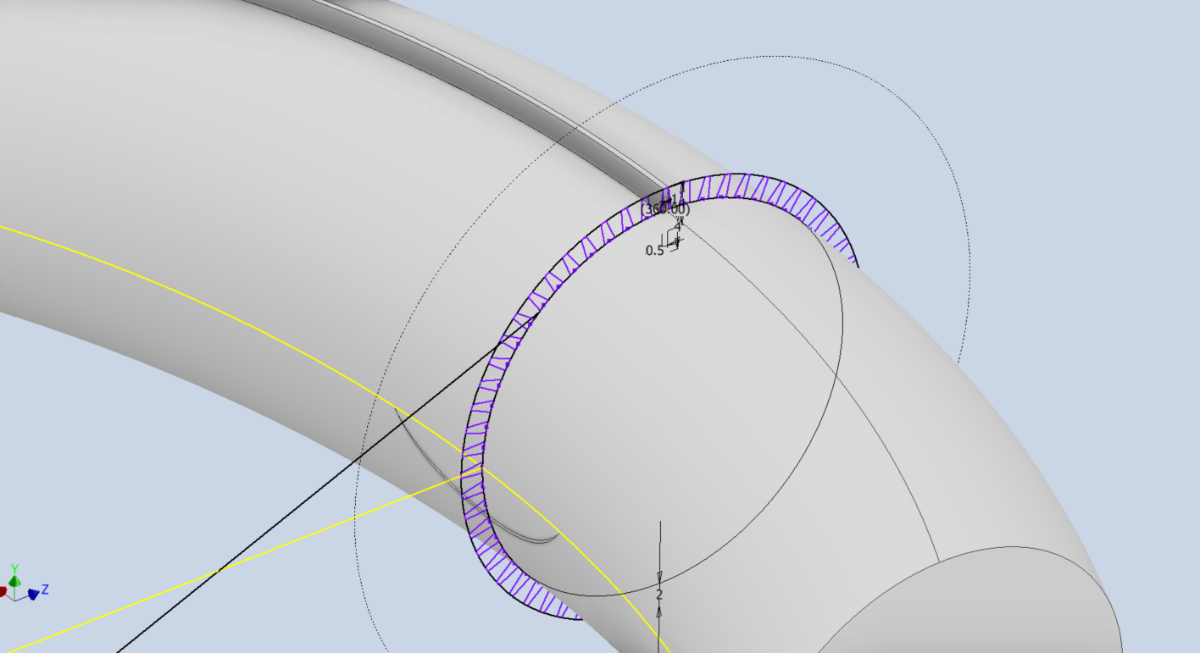

LMW Posted March 20 Posted March 20 Hello all, I am using inventor 2024 and I'm having trouble creating some geometry features. I have a Geometry which is a ring but instead of 2 concentric circle as the rails (2D version), the rails are two ellipses or different proportions. I want to cover it in ridges that run the length of the ring section and repeat all the way around the body of the shape. I have managed to sweep one ridge along the correct path. Does anyone know how I can make this ridge a pattern and have it repeating circular all the way around the ring body? I have tried using the circular pattern function with the ridge as a feature and the central elipse (half way bwteen the two rails) as the axis but inventor doesnt want to use a curve as an axis in this function. Quote
SLW210 Posted March 20 Posted March 20 I have moved your thread to the Autodesk Inventor Forum. Please post in the appropriate Forum. You also show AutoCAD 2024 as your CAD software. Quote
