Boundary Points - Lisp(need help)

[oliver]

i'm just asking a little favor or help..for routine lisp for boundary point..which is i could select an option wether outer nums. or innner nums..generally clockwise rotation as shown in figure attached..also pickone corner for reference for numbering.



[Lee Mac]

I suppose this is a starting point...



(defun c:bound  (/ cEnt cObj i j)
 (if (and (setq cEnt (car (entsel "\nSelect Curve: ")))
          (member (cdr (assoc 0 (entget cEnt)))
                  '("POLYLINE" "LWPOLYLINE" "REGION")))
   (progn
     (setq cObj (vlax-ename->vla-object cEnt)
           i    (vlax-curve-getStartParam cObj) j 1)
     (while (<= i (- (vlax-curve-getEndParam cObj)
                     (if (vlax-curve-isClosed cObj) 1 0)))
       (Make_Text (vlax-curve-getPointatParam cObj i) (itoa j) 0.0)
       (setq i (1+ i) j (1+ j))))
   (princ "\n<!> Incompatible Curve Selected <!>"))
 (princ))

(defun Make_Text  (pt val rot)
 (entmake (list '(0 . "TEXT")
                '(8 . "0")
                (cons 10 pt)
                (cons 40 (getvar "TEXTSIZE"))
                (cons 1 val)
                (cons 50 rot)
                (cons 7 (getvar "TEXTSTYLE"))
                '(71 . 0)
                '(72 . 1)
                '(73 . 2)
                (cons 11 pt))))

[oliver]

I suppose this is a starting point...



(defun c:bound  (/ cEnt cObj i j)
 (if (and (setq cEnt (car (entsel "\nSelect Curve: ")))
          (member (cdr (assoc 0 (entget cEnt)))
                  '("LINE" "POLYLINE" "LWPOLYLINE" "REGION")))
   (progn
     (setq cObj (vlax-ename->vla-object cEnt)
           i    (vlax-curve-getStartParam cObj) j 1)
     (while (<= i (- (vlax-curve-getEndParam cObj)
                     (if (vlax-curve-isClosed cObj) 1 0)))
       (Make_Text (vlax-curve-getPointatParam cObj i) (itoa j) 0.0)
       (setq i (1+ i) j (1+ j))))
   (princ "\n<!> Incompatible Curve Selected <!>"))
 (princ))

(defun Make_Text  (pt val rot)
 (entmake (list '(0 . "TEXT")
                '(8 . "0")
                (cons 10 pt)
                (cons 40 (getvar "TEXTSIZE"))
                (cons 1 val)
                (cons 50 rot)
                (cons 7 (getvar "TEXTSTYLE"))
                '(71 . 0)
                '(72 . 1)
                '(73 . 2)
                (cons 11 pt))))

it seems it was familiar with divide blocks..this is not what i meant..

anyone else..



oliver

[NH3man!]

Perhaps you could explain a bit more detail. Lee is very good at this and very fast. I know if you can describe what you want he can more than likely put it into a .lsp.

[Lee Mac]

Oliver, my code just put a number on each on the vertices of the object you have selected.



I thought this is what you are looking for?

[Lee Mac]

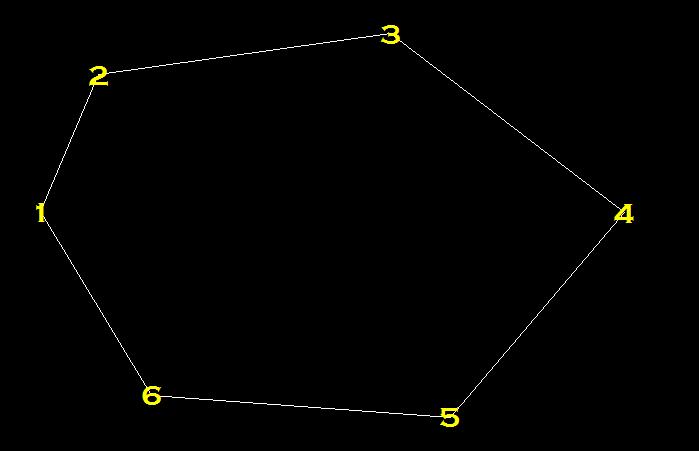

An example of the result of my posted code:







I thought this is what you were looking to achieve?

[oliver]

ok..i got it..but here is a little problem regarding the text size ht.





thanks

[Lee Mac]

My code just uses the TEXTSIZE variable as set in your drawings - what size would you like it?

[Lee Mac]

Going by the TextSize as quoted in your drawing (3):



(defun c:bound  (/ cEnt cObj i j)
 (if (and (setq cEnt (car (entsel "\nSelect Curve: ")))
          (member (cdr (assoc 0 (entget cEnt)))
                  '("POLYLINE" "LWPOLYLINE" "REGION")))
   (progn
     (setq cObj (vlax-ename->vla-object cEnt)
           i    (vlax-curve-getStartParam cObj) j 1)
     (while (<= i (- (vlax-curve-getEndParam cObj)
                     (if (vlax-curve-isClosed cObj) 1 0)))
       (Make_Text (vlax-curve-getPointatParam cObj i) (itoa j) 0.0)
       (setq i (1+ i) j (1+ j))))
   (princ "\n<!> Incompatible Curve Selected <!>"))
 (princ))

(defun Make_Text  (pt val rot)
 (entmake (list '(0 . "TEXT")
                '(8 . "0")
                (cons 10 pt)
                (cons 40 3)
                (cons 1 val)
                (cons 50 rot)
                (cons 7 (getvar "TEXTSTYLE"))
                '(71 . 0)
                '(72 . 1)
                '(73 . 2)
                (cons 11 pt))))
