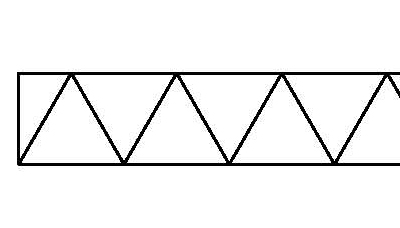

jwlebak Posted April 10, 2009 Posted April 10, 2009 Hi, I've been searching the internet and trying to do it myself in autocad for a bit now but am not having much luck. I am trying to create the hatch provided in the jpg without drawing it. It is essentially a zig-zag that creates "triangles" at 60 degree angles. Any help would be greatly appreciated. This hatch is featured in "detail magazine" their hatches are all extremely clear and easy to read. Ive been trying to replicate these for use in my drawings. Thanks in advance. Josh Quote
fuccaro Posted April 10, 2009 Posted April 10, 2009 Hello Jwlebak, welcome in the forum! Draw the pattern in AutoCAD and use the Super HAtch to convert it to a hatch. Also it is possible to write a user pattern "by hand", I did so in the old times - but these days I would not bother with that. Quote
hugha Posted April 14, 2009 Posted April 14, 2009 Try the NET3 standard hatch pattern (lines at 0, 60 and 120 deg). Quote
