Lisp to draw 2 lines on a line

[Mohamed_Essam_2000]

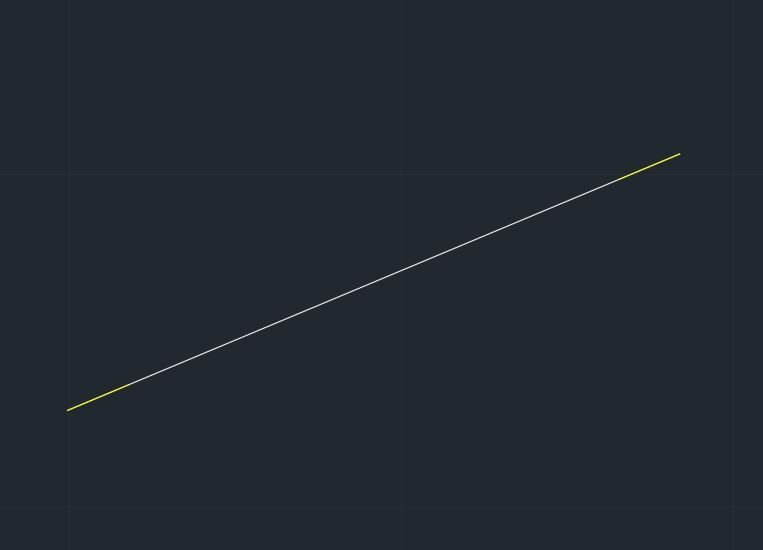

Need a lisp to draw a line (2mm length and yellow colored) from the end point of the selected line towards the other end point.

[fuccaro]

(defun c:pp()
  (setq line (entget (car (entsel "select line to be extended ")))
    dist 2.0
    pa (cdr (assoc 10 line))
    pb (cdr (assoc 11 line))
    lay (assoc 8 line)
    len (distance pa pb)
    rl (/ dist len)
    pc (mapcar '(lambda(a b)(+ b (* rl (- b a)))) pa pb)
    pd (mapcar '(lambda(a b)(- a (* rl (- b a)))) pa pb)
    )
  (entmake (list '(0 . "LINE")(cons 10 pb)(cons 11 pc)'(62 . 2) lay ))
  (entmake (list '(0 . "LINE")(cons 10 pa)(cons 11 pd)'(62 . 2) lay ))
  )



[Mohamed_Essam_2000]

21 minutes ago, fuccaro said:

(defun c:pp()
  (setq line (entget (car (entsel "select line to be extended ")))
    dist 2.0
    pa (cdr (assoc 10 line))
    pb (cdr (assoc 11 line))
    lay (assoc 8 line)
    len (distance pa pb)
    rl (/ dist len)
    pc (mapcar '(lambda(a b)(+ b (* rl (- b a)))) pa pb)
    pd (mapcar '(lambda(a b)(- a (* rl (- b a)))) pa pb)
    )
  (entmake (list '(0 . "LINE")(cons 10 pb)(cons 11 pc)'(62 . 2) lay ))
  (entmake (list '(0 . "LINE")(cons 10 pa)(cons 11 pd)'(62 . 2) lay ))
  )



Thank you, bro.

but if I finally want to delete the original line (the white line).

It will be better if the multi selection is enabled, so that we can select many lines and apply this lisp.

[fuccaro]

(defun c:pp()
  (setq oldLine (car (entsel "select line to be extended "))
	line (entget oldLine)
	dist 2.0
	pa (cdr (assoc 10 line))
	pb (cdr (assoc 11 line))
	lay (assoc 8 line)
	len (distance pa pb)
	rl (/ dist len)
	pc (mapcar '(lambda(a b)(+ b (* rl (- b a)))) pa pb)
	pd (mapcar '(lambda(a b)(- a (* rl (- b a)))) pa pb)
	)
  (entmake (list '(0 . "LINE")(cons 10 pb)(cons 11 pc)'(62 . 2) lay ))
  (entmake (list '(0 . "LINE")(cons 10 pa)(cons 11 pd)'(62 . 2) lay ))
  (entdel oldLine)
  )

This will delete the original line.

[Mohamed_Essam_2000]

12 minutes ago, fuccaro said:

(defun c:pp()
  (setq oldLine (car (entsel "select line to be extended "))
	line (entget oldLine)
	dist 2.0
	pa (cdr (assoc 10 line))
	pb (cdr (assoc 11 line))
	lay (assoc 8 line)
	len (distance pa pb)
	rl (/ dist len)
	pc (mapcar '(lambda(a b)(+ b (* rl (- b a)))) pa pb)
	pd (mapcar '(lambda(a b)(- a (* rl (- b a)))) pa pb)
	)
  (entmake (list '(0 . "LINE")(cons 10 pb)(cons 11 pc)'(62 . 2) lay ))
  (entmake (list '(0 . "LINE")(cons 10 pa)(cons 11 pd)'(62 . 2) lay ))
  (entdel oldLine)
  )

This will delete the original line.

But the total length will not be extended.

the total length is required to be constant.

I mean, the yellow line will start from the end-point of the oldline towards the other end-point.

Edited yesterday at 12:36 PM by Mohamed_Essam_2000

[fuccaro]

Yes, in the original request I missed that "towards the other end point".

[fuccaro]

So... this can process more lines at a time.

(defun c:pp()
  (setq dist 2.0 lines (ssget '((0 . "LINE"))) n (sslength lines))
  (repeat n
    (setq l1 (ssname lines (setq n (1- n)))
	  line (entget l1)
	  pa (cdr (assoc 10 line))
	  pb (cdr (assoc 11 line))
	  lay (assoc 8 line)
	  len (distance pa pb)
	  rl (/ dist len)
	  pc (mapcar '(lambda(a b)(+ b (* rl (- a b)))) pa pb)
	  pd (mapcar '(lambda(a b)(- a (* rl (- a b)))) pa pb)
	  )
    (entmake (list '(0 . "LINE")(cons 10 pb)(cons 11 pc)'(62 . 2) lay ))
    (entmake (list '(0 . "LINE")(cons 10 pa)(cons 11 pd)'(62 . 2) lay ))
    (entdel l1)
    )
  )



[Mohamed_Essam_2000]

2 minutes ago, fuccaro said:

So... this can process more lines at a time.

(defun c:pp()
  (setq dist 2.0 lines (ssget '((0 . "LINE"))) n (sslength lines))
  (repeat n
    (setq l1 (ssname lines (setq n (1- n)))
	  line (entget l1)
	  pa (cdr (assoc 10 line))
	  pb (cdr (assoc 11 line))
	  lay (assoc 8 line)
	  len (distance pa pb)
	  rl (/ dist len)
	  pc (mapcar '(lambda(a b)(+ b (* rl (- a b)))) pa pb)
	  pd (mapcar '(lambda(a b)(- a (* rl (- a b)))) pa pb)
	  )
    (entmake (list '(0 . "LINE")(cons 10 pb)(cons 11 pc)'(62 . 2) lay ))
    (entmake (list '(0 . "LINE")(cons 10 pa)(cons 11 pd)'(62 . 2) lay ))
    (entdel l1)
    )
  )



Thank you very much, bro.

[fuccaro]

Be happy!

[BIGAL]

@Mohamed_Essam_2000 just a comment in future for similar request it would be more helpful if you refer to the task as "from start point towards end point", this makes it clear which end to draw from, the reason I say this is often use select an end to determine the direction you want to draw in, this allows for swapping of line direction if needed.



As shown by @fuccaro the start point for a line  is dxf (cdr (assoc 10 line))  or VL (vlax-curve-getstartPoint obj) or (getpropertyvalue (car (entsel)) "startpoint")

Edited yesterday at 10:31 PM by BIGAL

[Mohamed_Essam_2000]

17 hours ago, BIGAL said:

@Mohamed_Essam_2000 just a comment in future for similar request it would be more helpful if you refer to the task as "from start point towards end point", this makes it clear which end to draw from, the reason I say this is often use select an end to determine the direction you want to draw in, this allows for swapping of line direction if needed.



As shown by @fuccaro the start point for a line  is dxf (cdr (assoc 10 line))  or VL (vlax-curve-getstartPoint obj) or (getpropertyvalue (car (entsel)) "startpoint")

I agree with you.

Ok, I will.
