Flatten issue with drawing

[3dwannab]

I've recently started a new job and tidying up the detail library.



The majority of the drawing is a mess and was at all different elevations. So I started by using superflatten lisp found over on theswamp but it seems that when using the below code afterward it sends the objects to the X plane which shouldn't happen.



See the attached drawing.



The code that I'm using is:

;;  Moves all visible objects to 0.0000 on the Z plane AKA Coplanar
(defun C:NONZ ()
  (vl-cmdf ".undo" "BEGIN") ; Added Crude Error Trap AKA UNDO
  (setvar "cmdecho" 1) ; turn off vl-cmdf echoing
  (vl-cmdf "zoom" "extents")
  (vl-cmdf "move" "all" "" "0,0,0" "0,0,1e99")
  (vl-cmdf "move" "all" "" "0,0,0" "0,0,-1e99")
  (vl-cmdf "zoom" "previous")
  (setvar "cmdecho" 1)
  (vl-cmdf ".undo" "END")
)
 ;



Flatten Issue.dwg

Edited October 8 by 3dwannab

[Steven P]

Seams to work better if you move the drawing to the origin instead of (120290, -60614)

[3dwannab]

18 minutes ago, Steven P said:

Seams to work better if you move the drawing to the origin instead of (120290, -60614)



Can you try the attached? It doesn't work for me.

test.dwg

[eldon]

It might be that there are many objects that are not parallel the the UCS.



Your lisp just moves everything to a very great height vertically. If something is not parallel to the UCS, then it moves in a direction vertical to its own UCS but not to the current UCS.



I don't know how to fix this, but someone clever probably knows how. I would just redraw the leaders, dimensions and hatches.

[Steven P]

Just trying that, it isn't working.... but you've told me that all ready. Looks like the hatches are hatching 3d lines - If I redraw the boundaries, hatch and then NONZ the new hatch does as expected.



Just thinking as a fix, select all hatches - selection set - redraw the hatch, delete the original with the hatch points all at z=0, or recreate the boundaries and new hatch from there





[3dwannab]

It would be a huge undertaking on the existing detail library in the office to redraw everything but I guess that's what I'm going to have to do. I wasn't aware that objects can still have their own UCS. I don't understand how they can appear flat in the front view.

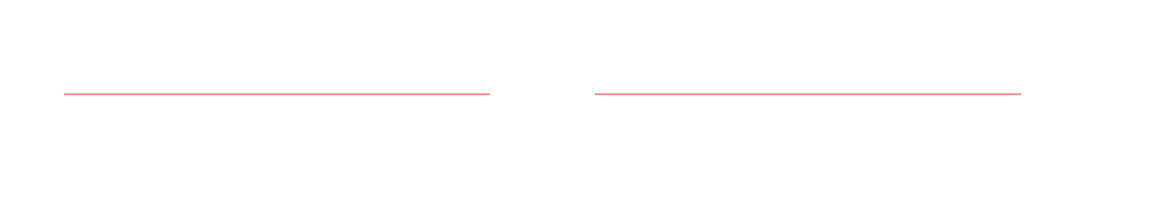

FRONT VIEW OF THE ATTACHED (not very exciting to look at)





Hatch example.dwg

Edited October 8 by 3dwannab

[Steven P]

That's the first thing I looked at too - a few 3d polylines are slightly off 0 z axis (like 0.000026, something like that)



LISP would do the hatches no problem I think, do as a batch process and shouldn't be too painful -  lunchtime walk while the machine does it stuff. Not sure the best way to go with that yet, perhaps entmake the hatch but apply (massoc.... ) lisp to the coordinates and entmod them with the result set with z axis set to 0 (mapcar '* '(1 1 0) coord ).. think that should work?



Untested code idea:

- do ssget and loop through each hatch entity as HatchEnt

- (setq MyHatch (entget HatchEnt))

- (setq coords (Massoc 10 MyHatch))

- (Foreach n coords

-   (entmod (mapcar '* '(1 1 0) n) n MyHatch)

- ) ; end foreach

- ent update MyHatch

- delete the original hatch







I tested this quickly before dinner, scale was a bit off, so might need to adjust that - hatch scale was 6 in the drawing, I had to put it to about 0.25 to make it similar

Edited October 8 by Steven P

[3dwannab]

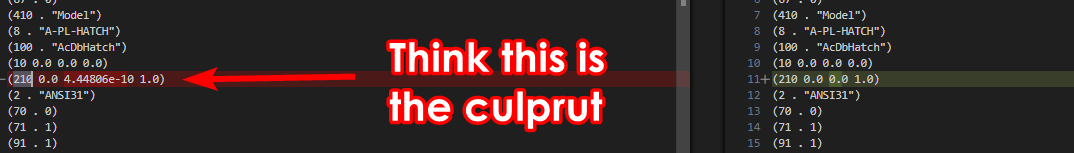

I've noticed that the extrusion direction dxf code 210 is different on both hatches.



[Steven P]

shouldn't have that... entmod them all to 0 extrusion?

[3dwannab]

This is a testing version only but it seems to work. I wonder what CAD wizard made this mess of a detail library



(vl-load-com)
;;
;; Fix the extrusuion values of hatches so they are 0,0,1
;;
;; TESTING VERSION
;;
;; Thread here: https://www.cadtutor.net/forum/topic/92094-flatten-issue-with-drawing
;;
;; 3dwannab 2024.10.08
;;
;; TO DO:
;; - Make this work for ENTITIES inside BLOCKS
;;

(defun c:FXHatchExtrusion_To_0 (/ *error* acDoc cnt dxf210 ent entData newEntData newExtrude newExtrudeVal obj oldExtrude ss typ var_cmdecho)

  (defun *error* (errmsg)
    (and acDoc (vla-EndUndoMark acDoc))
    (and errmsg
         (not (wcmatch (strcase errmsg) "*CANCEL*,*EXIT*"))
         (princ (strcat "\n<< Error: " errmsg " >>\n"))
    )
    (setvar 'cmdecho var_cmdecho)
  )



  ;; Start the undo mark here
  (setq acDoc (vla-get-ActiveDocument (vlax-get-acad-object)))
  (or (vla-EndUndoMark acDoc) (vla-StartUndoMark acDoc))

  ;; Get any system variables here
  (setq var_cmdecho (getvar "cmdecho"))
  (setvar 'cmdecho 0)

  (if (setq ss (ssget "_:L" '((0 . "HATCH"))))

    (progn

      (repeat (setq cnt (sslength ss))

        (setq cnt (1- cnt))
        (setq ent (_dxf -1 (entget (ssname ss cnt))))
        (setq entData (entget ent)) ; Get the entity's data list

        (setq obj (vlax-ename->vla-object ent))
        (setq typ (cdr (assoc 0 (entget ent))))

        (cond
          ;; Placeholder condition for other entities
          ; ((= typ "**")
          ; ) ;; end cond

          ;; Condition for HATCHES.
          ((= typ "HATCH")
           (setq newExtrudeVal 0.0) ; Set this to 0.0
           (if (setq dxf210 (assoc 210 entData))
             (progn
               (setq oldExtrude (cdr dxf210)) ;; Extract the current extrude components
               (setq newExtrude (list (nth 0 oldExtrude) newExtrudeVal (nth 2 oldExtrude))) ;; Create the new extrude with the modified Y component
               (setq newEntData (subst (cons 210 newExtrude) dxf210 entData)) ;; Replace the old extrude with the new extrude
               (entmod newEntData) ;; Apply the changes to the HATCH entity
               (entupd ent) ; Update the entity to reflect the change
             )
           )
          ) ;; end cond HATCH
        )
      )
    ) ;; progn
  ) ;; if ssget

  (if ss
    (progn
      (princ (strcat ">> " (itoa (sslength ss)) (if (> (sslength ss) 1) "  objects extrude values are" "  objects extrude value is") " fixed <<\n"))
      (sssetfirst nil ss)
      (command "_.regen")
    )
  )

  (vla-EndUndoMark acDoc)

  (*error* nil)
  (princ)
)

;; -----------------------------------------------------------------------
;; ----------------------=={ Functions START }==--------------------------

;;----------------------------------------------------------------------;;
;; _dxf
;; Finds the association pair, strips 1st element
;; args   - dxfcode elist
;; Example  - (_dxf -1 (entget (ssname (ssget) 0)))
;; Returns  - <Entity name: xxxxxxxxxxx>

(defun _dxf (code elist)
  (cdr (assoc code elist))
)

(c:FXHatchExtrusion_To_0) ;; Unlbock for testing



Edited October 8 by 3dwannab

[3dwannab]

Man, this drawing is a nightmare.



I have this polyline with a 210 DXF of (210 0.0 0.0 -1.0)

See attached.



I've updated my code to include the DXF codes 220 and 230.



When I run the program on this line it flips it seeing as the Z vector is -1.0.



(vl-load-com)
;;
;; Fix the extrusuion values (dxf codes 210, 220 & 230) of all object so they are 0,0,1
;;
;; TESTING VERSION - Use at your own risk
;;
;; Thread here: https://www.cadtutor.net/forum/topic/92094-flatten-issue-with-drawing
;;
;; 3dwannab 2024.10.08
;;
;; TO DO:
;; - Make this work for ENTITIES inside BLOCKS
;;

(defun c:FXExtrusion_To_0 (/ *error* acDoc cnt dxf210 ent entData newEntData newExtrude newExtrudeVal obj oldExtrude ss typ var_cmdecho)

  (defun *error* (errmsg)
    (and acDoc (vla-EndUndoMark acDoc))
    (and errmsg
         (not (wcmatch (strcase errmsg) "*CANCEL*,*EXIT*"))
         (princ (strcat "\n<< Error: " errmsg " >>\n"))
    )
    (setvar 'cmdecho var_cmdecho)
  )

  ;; Start the undo mark here
  (setq acDoc (vla-get-ActiveDocument (vlax-get-acad-object)))
  (or (vla-EndUndoMark acDoc) (vla-StartUndoMark acDoc))

  ;; Get any system variables here
  (setq var_cmdecho (getvar "cmdecho"))
  (setvar 'cmdecho 0)

  (if (setq ss (ssget "_:L" '((0 . "*"))))

    (progn

      (repeat (setq cnt (sslength ss))

        (setq cnt (1- cnt))
        (setq ent (_dxf -1 (entget (ssname ss cnt))))
        (setq entData (entget ent)) ; Get the entity's data list

        (setq obj (vlax-ename->vla-object ent))
        (setq typ (cdr (assoc 0 (entget ent))))

        ; (setq newExtrudeVal 0.0) ; Set this to 0.0
        (setq newExtrude (list 0 0 1.0)) ;; Create the new extrude with the modified Y component

        (if (setq dxf210 (assoc 210 entData))
          (progn
            (princ "\ndxf210")

            (setq newEntData (subst (cons 210 newExtrude) dxf210 entData)) ;; Replace the old extrude with the new extrude
            (entmod newEntData) ;; Apply the changes to the entity
            (entupd ent) ; Update the entity to reflect the change
          )
        )

        (if (setq dxf220 (assoc 220 entData))
          (progn
            (princ "\ndxf220")
            (setq newEntData (subst (cons 220 newExtrude) dxf220 entData)) ;; Replace the old extrude with the new extrude
            (entmod newEntData) ;; Apply the changes to the entity
            (entupd ent) ; Update the entity to reflect the change
          )
        )

        (if (setq dxf230 (assoc 230 entData))
          (progn
            (princ "\ndxf230")
            (setq newEntData (subst (cons 230 newExtrude) dxf230 entData)) ;; Replace the old extrude with the new extrude
            (entmod newEntData) ;; Apply the changes to the entity
            (entupd ent) ; Update the entity to reflect the change
          )
        )
      )
    ) ;; progn
  ) ;; if ssget

  (if ss
    (progn alloc
           (princ (strcat ">> " (itoa (sslength ss)) (if (> (sslength ss) 1) "  objects extrude values are" "  objects extrude value is") " fixed <<\n"))
           (sssetfirst nil ss)
           (command "_.regen")
    )
  )

  (vla-EndUndoMark acDoc)

  (*error* nil)
  (princ)
)

;; -----------------------------------------------------------------------
;; ----------------------=={ Functions START }==--------------------------

;;----------------------------------------------------------------------;;
;; _dxf
;; Finds the association pair, strips 1st element
;; args   - dxfcode elist
;; Example  - (_dxf -1 (entget (ssname (ssget) 0)))
;; Returns  - <Entity name: xxxxxxxxxxx>

(defun _dxf (code elist)
  (cdr (assoc code elist))
)

(c:FXExtrusion_To_0) ;; Unlbock for testing



Extrusion Problem Code 210.dwg
