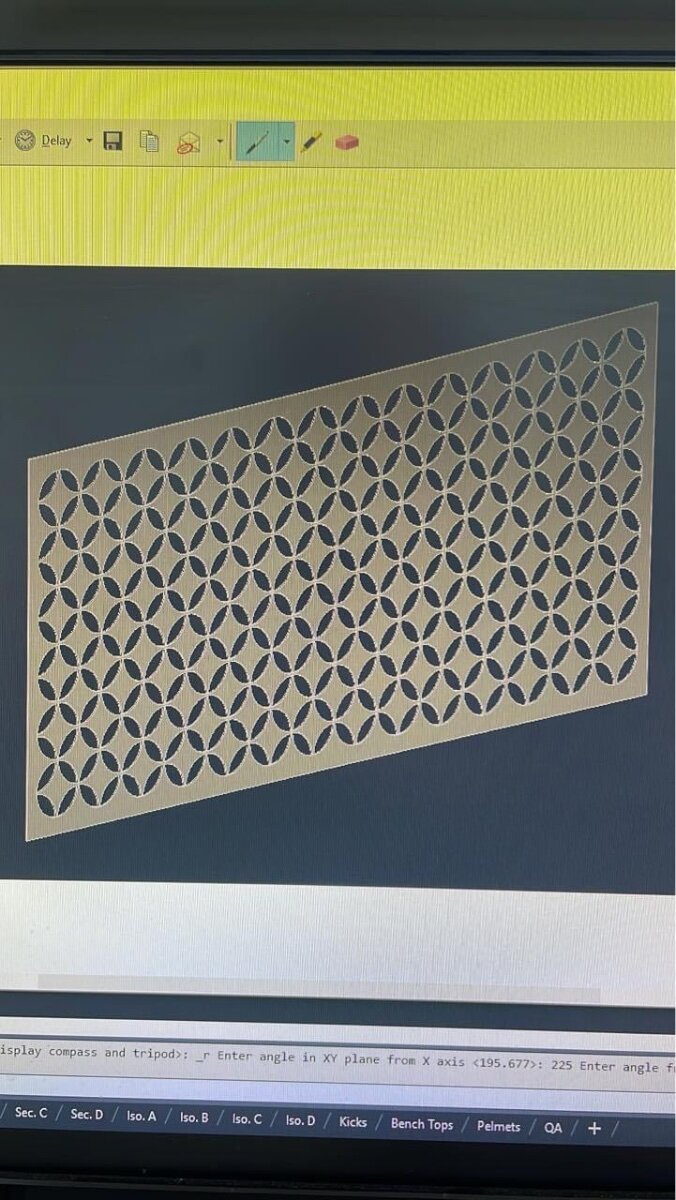

Mitch Owen Posted yesterday at 10:24 AM Share Posted yesterday at 10:24 AM (edited) I have drawn a flat 3D object with a pattern that will be laser cut and I now need to curve it to a 960mm radius, is this possible? Edited yesterday at 10:26 AM by Mitch Owen Uploaded photo Quote Link to comment Share on other sites More sharing options...
BIGAL Posted 15 hours ago Share Posted 15 hours ago As a 3d object to view ? You can draw an pline with inside outside arcs and extrude, so a solid curved sheet. It is possible to "subtract" a 3d solid shape from this sheet, the issue is that the plug to be used has be arrayed in a circular pattern. A tricky but doable task, the result will hopefully look like what you want, but don't dim the cutouts. This is opposite to what you want, but similar idea, some one else more experienced with solids will probably help. The lettering is extruded through a curved surface. 1 Quote Link to comment Share on other sites More sharing options...
lrm Posted 13 hours ago Share Posted 13 hours ago @Mitch Owen what is your end goal? Do you want 3D curves in space or just a rendering of what it would look like? Can you post the AutoCAD file or at least the dimensions of one the cut-out patterens? Quote Link to comment Share on other sites More sharing options...
Mitch Owen Posted 11 hours ago Author Share Posted 11 hours ago 2 hours ago, lrm said: @Mitch Owen what is your end goal? Do you want 3D curves in space or just a rendering of what it would look like? Can you post the AutoCAD file or at least the dimensions of one the cut-out patterens? Hi Irm, my end goal is to have a curved 3D object with the pattern in it. The cutouts are 60mm diameter with a 2mm gap in between. I won’t be back at my computer until early next week and can attach the dwg file then. Quote Link to comment Share on other sites More sharing options...
