linnmaster Posted February 24, 2010 Posted February 24, 2010 In the second example if you try to extrude (the closed profiles) as a test there is no red cross. I still see a red cross. Click on the red cross, and it runs through it's diagnosis and picks up the open profile on the sketch that contains the rails .... Hence I can't really see any difference between rev1 and rev2, except one works with loft as solid, and the other needs to be lofted surface first, then sculpted. Quote
linnmaster Posted February 24, 2010 Posted February 24, 2010 Did you take a look at the Rev2 file I posted? You need to be careful where you select the edges for the loft. Click on the planar faces near the edge or the tangency will be to incorrect face. Note also that must have existing solid faces or surfaces to get the tangent options. Lofts with sketches do not give this option. Ahhh! I see! Thanks so much for the clarification and pointing to where the issue might be. Oh, and yes, I looked at Rev2. Regards, David Quote
JD Mather Posted February 24, 2010 Posted February 24, 2010 I still see a red cross. Click on the red cross, and it runs through it's diagnosis and picks up the open profile on the sketch that contains the rails .... Not the rail sketch - that one is open and therefore should have a red cross. Quote
lis_wang Posted February 24, 2010 Posted February 24, 2010 Not the rail sketch - that one is open and therefore should have a red cross. Your Rev2 file has a minal mistake, the dimension 38 for sketch 3 is from side to side, instead of from center to center. Thank you very much JD. Quote
Safwah Posted February 24, 2010 Posted February 24, 2010 Hey JD are you just using inventor for those renders on page 4 of the hook? They look very sharp, id like to get my renders to that quality. Can you attach the finished file for that so i can take a look at the rendering options/settings. Thanks Quote
linnmaster Posted February 24, 2010 Posted February 24, 2010 Hey JD are you just using inventor for those renders on page 4 of the hook? They look very sharp, id like to get my renders to that quality. Can you attach the finished file for that so i can take a look at the rendering options/settings. Thanks I had a look earlier, and it seems to be just material settings ... select the surface, right click, options, material ... for the the matt hook finish - it's cast aluminium ... for the shiny thread part ... polished alumnium? Hope that helps. Regards, David Quote
Safwah Posted February 24, 2010 Posted February 24, 2010 I had a look earlier, and it seems to be just material settings ... select the surface, right click, options, material ... for the the matt hook finish - it's cast aluminium ... for the shiny thread part ... polished alumnium? Hope that helps. Regards, David What about the background, just a custom background image? Seems to make sense now. Now why cant we render that well with inventor Meh practice i suppose. Quote
linnmaster Posted February 24, 2010 Posted February 24, 2010 What about the background, just a custom background image? Seems to make sense now. Now why cant we render that well with inventor Meh practice i suppose. Heya ... I never took much notice of the background - are you talking about way earlier with the faint grid? If you are, then wait for JD's response. I personally can't be bothered with the background, or the appearance of the model, because for me, at the end of the day, the drawing is what's important, and (btw, I learned this the hard way) after many nights without sleep spent trying to model it perfectly, and get it all looking nice, you STILL HAVE THE DRAWING TO DO!!! If you have time, it's great fun and good learning to make the model look like JD's, and it's great for presentation purposes, but in my world, people couldn't care less ... the drawing is the key ... so keep that in mind Just my opinion and my experience .... Quote

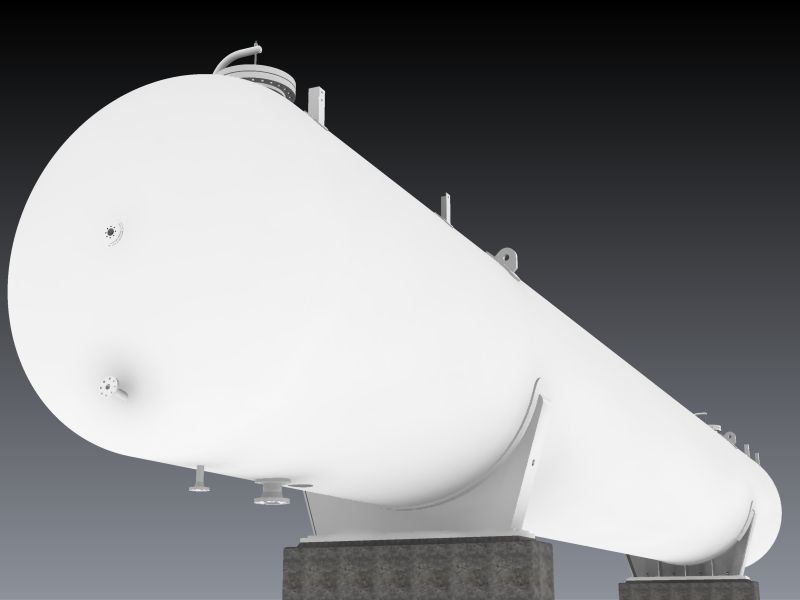

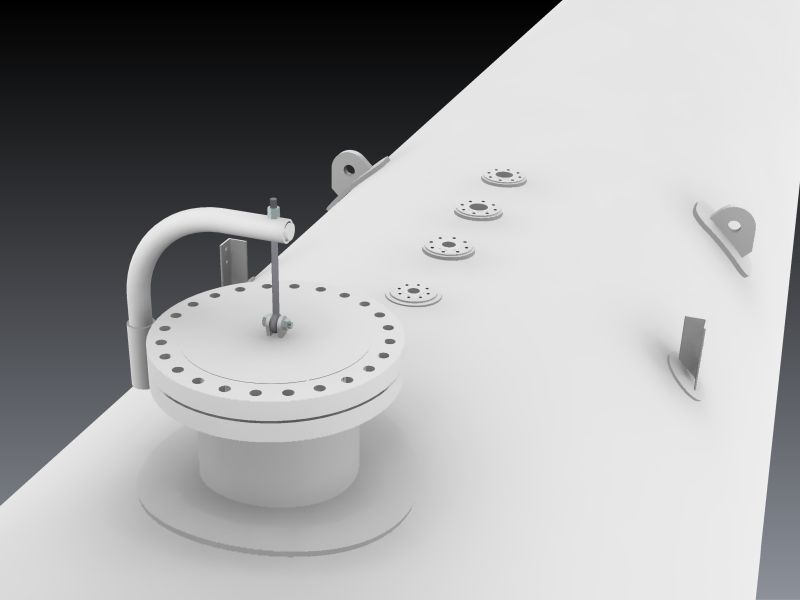

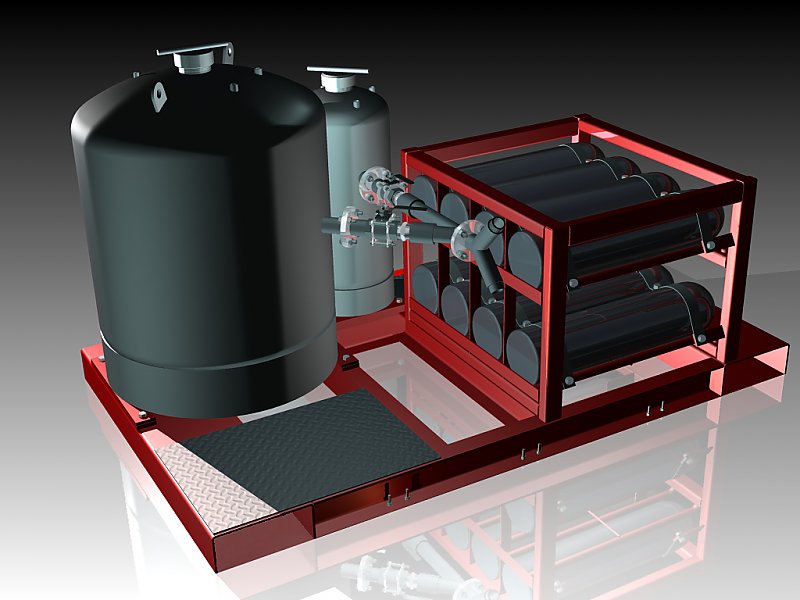

Safwah Posted February 24, 2010 Posted February 24, 2010 Oh yeah, dont get me wrong, im up the with the better users when it comes to inventor and the drawing comes first as you say, although in my free time i try to master the program by working on areas like rendering in inventor, it has its uses as some clients have requested presentation drawings but i can just never get it to look sharp in inventor. Id say the faint grid is just a custom background being used. Eg. I know i can do better then this, just cant seem to get the quality im after in inventor though. Quote
linnmaster Posted February 24, 2010 Posted February 24, 2010 OMG! That's freaking awesome! Now if only I can do that lol ... Quote
Safwah Posted February 24, 2010 Posted February 24, 2010 Maybe its a matter of looking at the same thing all day i only notice the problems rather then standing back and saying "look what i have created!" Quote
JD Mather Posted February 24, 2010 Posted February 24, 2010 i can just never get it to look sharp in inventor. Id say the faint grid is just a custom background being used. The grid was not a custom background - one of the standard backgrounds in Inventor Tools>Application Options>Colors tab. Search Google for Bill Bogan Inventor Studio Tutorials. Also Mark Flaylor has several here http://au.autodesk.com look in the Online classes. Quote
Safwah Posted February 24, 2010 Posted February 24, 2010 Nice thanks JD, ill take a look at those tuts. Hard to come by some decent tuts on studio, most are just "so this is how you get into studio, use the presets, done bleh." Quote
Faouweb Posted February 26, 2010 Posted February 26, 2010 Thank you i'll try to do this hook for practis Quote

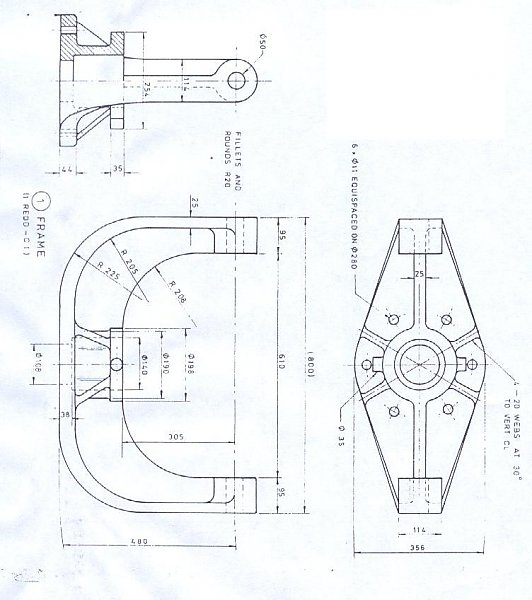

lis_wang Posted March 1, 2010 Posted March 1, 2010 I cannot do the loft portion for the frame. The trail looks like a 3D sketch. Please see what I have done. frame_SVOG.zip Quote
JD Mather Posted March 1, 2010 Posted March 1, 2010 Everyone else - give it an honest try before you look at my example. Just realized I made a slight mistake - change the 38 dimension in Sketch1 to 44. Change Thicken1 to 44 as well. I realized that I didn't need the second extrude surface and be very very careful with ribs. Keep in mind that when we drew in 2D that rib extents are simplified. In 3D we have to be a bit more true to the real geometry. Frame.zip Frame_Rev1.zip Quote
lis_wang Posted March 2, 2010 Posted March 2, 2010 Everyone else - give it an honest try before you look at my example. Just realized I made a slight mistake - change the 38 dimension in Sketch1 to 44. Change Thicken1 to 44 as well. I realized that I didn't need the second extrude surface and be very very careful with ribs. Keep in mind that when we drew in 2D that rib extents are simplified. In 3D we have to be a bit more true to the real geometry. Dear JD Your method is excellent. I tried to use LOFT with 3D sketch trails. It looks very bad. frame_SVOG.zip Quote
pinco pallino Posted March 22, 2010 Posted March 22, 2010 I cannot do the loft portion for the frame. The trail looks like a 3D sketch. Please see what I have done. Hi Lis if that fork is to be cast in sand or forged those concentric ribs around the big hole are making an under cut that's a trouble for pattern making and it will cost big dollars to produce consider make them perpendicular to the the join line (larger surface). Regards Ralf engineering pattern-maker designer Quote
lis_wang Posted March 22, 2010 Posted March 22, 2010 Hi Lis if that fork is to be cast in sand or forged those concentric ribs around the big hole are making an under cut that's a trouble for pattern making and it will cost big dollars to produce consider make them perpendicular to the the join line (larger surface). Regards Ralf engineering pattern-maker designer What do you mean by " perpendicular to the the join line "? Thanks Quote
