Alternating poly line trim routine. (edit of previous lisp)

Jamesclark64

By Jamesclark64
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

Jamesclark64 Explorer

Jamesclark64

Posted
Posted (edited)

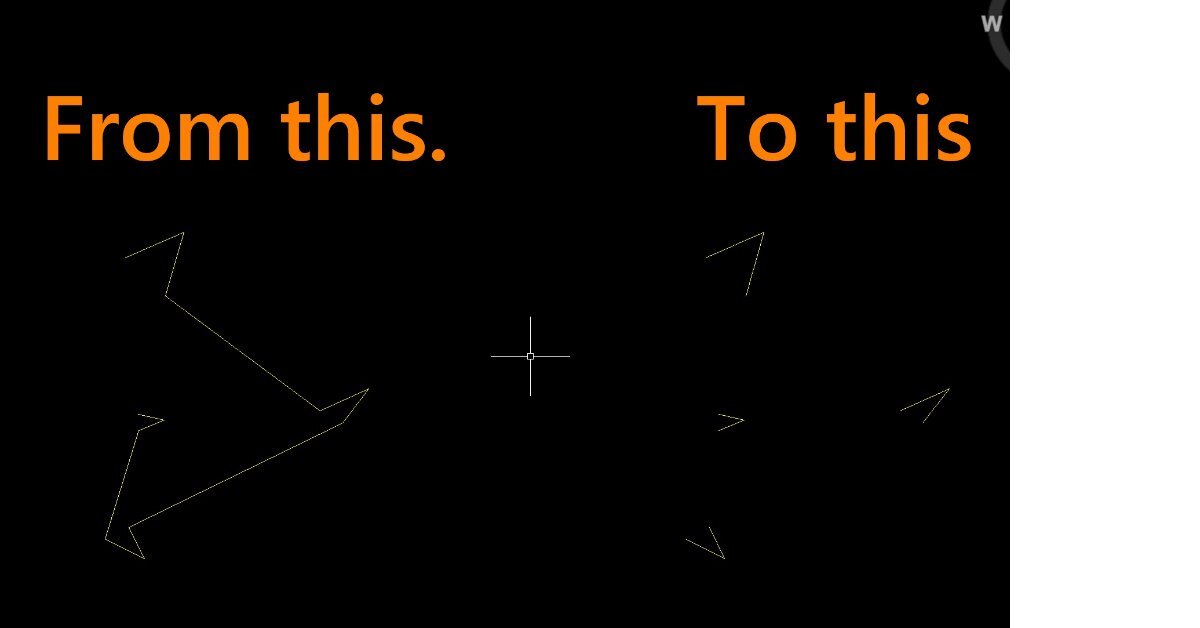

A while back I asked for some help with a routine that could trim unwanted segments of a poly line.

original post:





Steven P came up with a solution that works perfectly. However I've been trying to make a second version that deletes every third section of the poly line.(example below) but haven't had any luck😢any help would be greatly appreciated.




(Edit) Steven P original code:

(defun c:oddeven ( / MyPoly MyEnt acount tenslist removelist n)
  ;;SubFunctions
  (defun LM:RemoveNth ( n l ) ;;Refer to Lee Macs website
    (if (and l (< 0 n))
        (cons (car l) (LM:RemoveNth (1- n) (cdr l)))
        (cdr l)
    )
  )
  ;;end subfunctions

  (setq MyPoly (car (entsel "\nSelect Polyline")))   ;;Select a polyline
  (if (or (= MyPoly nil)
          (/= (cdr (assoc 0 (entget MyPoly))) "LWPOLYLINE")
      ) ; endor                                      ;;If no polyline selected
    (princ "\nPolyline not selected")                ;;error message 'no polyline'
    (progn                                           ;;If Polyline
      (setq MyEnt (entget MyPoly))                   ;;Get line definition entity codes
      (setq acount 0)                                ;;A counter
      (setq tenslist (list))                         ;;Blank list for the coordinates
      (while (< acount (length MyEnt))               ;;Get list of coordinate positions
        (if (= (car (nth acount MyEnt)) 10)          ;;Loop through list, if assoc code 10 record its position
          (setq tenslist (append tenslist (list acount)))
        )
        (setq acount (+ acount 1))
       ) ; end while                                 ;;End loop

      (setq acount 0)                                ;;reset counter
      (while (< acount (length tenslist))            ;;Loop the number of vertices
        (setq removelist (LM:RemoveNth (+ acount 1) tenslist)) ;;Remove vertex acount + 1 position from list
        (setq removelist (LM:RemoveNth acount removelist))     ;;Remove vertex acount position from list
        (setq MyEnt (entget MyPoly))
        (foreach n (reverse removelist)              ;;remove the remaining vertext position from entity definition
          (setq MyEnt (LM:RemoveNth n MyEnt))
        )
        (entmakex MyEnt)                             ;;Make a new polyline using acount, acount + 1 positions
        (setq acount (+ acount 2))
      ) ; end while                                  ;;end loop
    ) ; end progn
  )
  (entdel MyPoly)                                    ;;Delete original line
  (princ)
)



Edited by Jamesclark64
Link to comment
Share on other sites
Steven P Grand Master

Steven P

Posted
Posted

I think make this line:

(setq acount (+ acount 2))



to

(setq acount (+ acount 3))



Link to comment
Share on other sites
Steven P Grand Master

Steven P

Posted
Posted

I'll check next week (if I remember, if not remind me), I think adding a 'remove every nth' user control would make this more versatile and maybe better?

Link to comment
Share on other sites
Tsuky Community Regular

Tsuky

Posted
Posted

@Jamesclark64

This can do the job?

(vl-load-com)
(defun cut@point (ss lst_pt / n ename dxf_10 rtn_ss pt_brk lst_brk lst_sort dxf_obj dxf_43 dxf_38 dxf_39 dxf_10 dxf_40 dxf_41 dxf_42 dxf_210 ltmp lst_tmp where count nwent indx)
  (repeat (setq n (sslength ss))
    (setq
      ename (ssname ss (setq n (1- n)))
      dxf_10 (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) (entget ename)))
      rtn_ss (ssadd)
    )
    (foreach el (mapcar '(lambda (x) (trans x 0 ename)) lst_pt)
      (setq
        pt_brk el
        lst_brk (cons el lst_brk)
      )
    )
    (setq
      lst_sort (mapcar '(lambda (x) (list (vlax-curve-GetDistAtPoint ename (trans x ename 0)) (list (car x) (cadr x)))) lst_brk)
      lst_brk (reverse (mapcar 'cadr (mapcar '(lambda (x) (assoc x lst_sort)) (vl-sort (mapcar 'car lst_sort) '<))))
      dxf_obj (entget ename)
    )
    (if (cdr (assoc 43 dxf_obj))
      (setq dxf_43 (cdr (assoc 43 dxf_obj)))
      (setq dxf_43 0.0)
    )
    (if (cdr (assoc 38 dxf_obj))
      (setq dxf_38 (cdr (assoc 38 dxf_obj)))
      (setq dxf_38 0.0)
    )
    (if (cdr (assoc 39 dxf_obj))
      (setq dxf_39 (cdr (assoc 39 dxf_obj)))
      (setq dxf_39 0.0)
    )
    (setq
      dxf_10 (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) dxf_obj))
      dxf_40 (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 40)) dxf_obj))
      dxf_41 (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 41)) dxf_obj))
      dxf_42 (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 42)) dxf_obj))
      dxf_210 (cdr (assoc 210 dxf_obj))
    )
    (if (not (zerop (boole 1 (cdr (assoc 70 dxf_obj)) 1)))
      (setq
        dxf_10 (append dxf_10 (list (car dxf_10)))
        dxf_40 (append dxf_40 (list (car dxf_40)))
        dxf_41 (append dxf_41 (list (car dxf_41)))
        dxf_42 (append dxf_42 (list (car dxf_42)))
      )
    )
    (repeat (1+ (length lst_brk))
      (setq
        ltmp nil
        lst_tmp (vl-member-if '(lambda (x) (and (equal (car x) (caar lst_brk) 1E-08) (equal (cadr x) (cadar lst_brk) 1E-08))) dxf_10)
        where (if lst_tmp (vl-position (car lst_tmp) dxf_10) 0)
      )
      (repeat (setq count (- (length dxf_10) where))
        (setq ltmp (cons (mapcar '(lambda (x y) (cons y (nth where x))) (list dxf_10 dxf_40 dxf_41 dxf_42) (list 10 40 41 42)) ltmp))
        (setq where (1+ where))
      )
      (entmake
        (append
          (list
            (cons 0 "LWPOLYLINE")
            (cons 100 "AcDbEntity")
            (assoc 67 dxf_obj)
            (assoc 410 dxf_obj)
            (assoc 8 dxf_obj)
            (if (assoc 62 dxf_obj) (assoc 62 dxf_obj) (cons 62 256))
            (if (assoc 6 dxf_obj) (assoc 6 dxf_obj) (cons 6 "BYLAYER"))
            (if (assoc 370 dxf_obj) (assoc 370 dxf_obj) (cons 370 -1))
            (cons 100 "AcDbPolyline")
            (cons 90 (length ltmp))
            (cons 70 (boole 1 (cdr (assoc 70 dxf_obj)) 128))
            (cons 38 dxf_38)
            (cons 39 dxf_39)
          )
          (apply 'append (reverse ltmp))
          (list (cons 210 dxf_210))
        )
      )
      (repeat (1- count)
        (setq
          dxf_10 (reverse (cdr (reverse dxf_10)))
          dxf_40 (reverse (cdr (reverse dxf_40)))
          dxf_41 (reverse (cdr (reverse dxf_41)))
          dxf_42 (reverse (cdr (reverse dxf_42)))
        )
      )
      (setq lst_brk (cdr lst_brk) ltmp nil nwent (entlast) rtn_ss (ssadd nwent rtn_ss))
    )
    (setq indx (1- (sslength rtn_ss)))
    (repeat (sslength rtn_ss)
      (if (eq (boole 1 indx 1) 1)
        (entdel (ssname rtn_ss indx))
      )
      (setq indx (1- indx))
    )
    (entdel ename)
  )
)
(defun c:altern_poly ( / ss n ss_save ent dxf_ent lst_pt brk_pt)
  (while (not (setq ss (ssget '((0 . "LWPOLYLINE"))))))
  (repeat (setq n (sslength ss))
    (setq
      ss_save (ssadd)
      ent (ssname ss (setq n (1- n)))
      ss_save (ssadd ent ss_save)
      dxf_ent (entget ent)
      lst_pt (mapcar 'cdr (vl-remove-if '(lambda (x) (/= (car x) 10)) dxf_ent))
    )
    (if (equal (append (car lst_pt) (list (getvar "ELEVATION"))) (vlax-curve-getendpoint ent) 1E-08)
      (setq lst_pt (append lst_pt (list (car lst_pt))))
    )
    (if (>= (length lst_pt) 3)
      (progn
        (setq brk_pt nil)
        (while (and lst_pt (cadddr lst_pt))
          (setq
            brk_pt (cons (caddr lst_pt) brk_pt)
            lst_pt (cdddr lst_pt)
            brk_pt (cons (car lst_pt) brk_pt)
          )
        )
        (if (eq (boole 1 (cdr (assoc 70 dxf_ent)) 1) 1) (setq brk_pt (cdr brk_pt)))
        (cut@point ss_save brk_pt)
      )
    )
  )
  (prin1)
)
