Creating a GRID (Ruler) with Lisp

[RBrigido]

Guys,

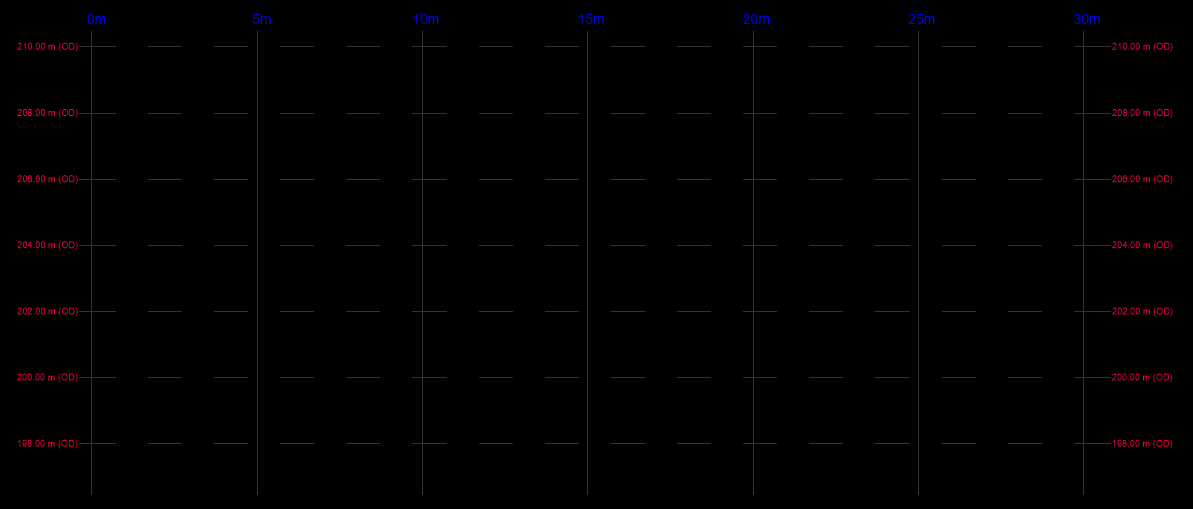

I want to create a lisp routine that creates a GRID format, where the height between the horizontal lines is 2.00m and the vertical lines are 5m apart each.



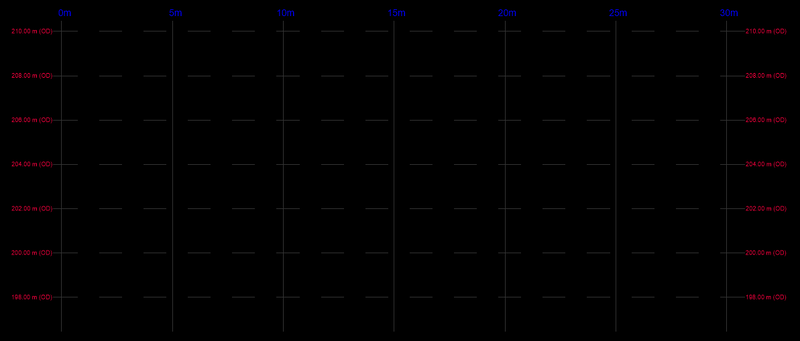

Below I put an image to use as a model to follow.



Any idea?



[BIGAL]

There are so many GRID examples out there that you could start with Google "GRID autocad lisp".

Edited December 23, 2023 by BIGAL

[Nikon]

You can use an array... or this lisp GRID.lsp, author VVA...



Array.dwg

GRID.lsp

Edited December 25, 2023 by Nikon

[RBrigido]

Hi guys,



Thanks for your contributions. This made me think in other ways and I ended up creating my own model.



I am making it available below for anyone interested in using it.



Many thanks,

Rodrigo Brigido.

RULER.lsp

[BIGAL]

Just me I would make all the layers in one go just run at start, using a (foreach lay lays, the lays list has the name color linetype etc for each layer. Then entmake. So your "create line" does not need to check for a layer every time a line is drawn. You can use (setvar 'clayer yourlayer) to set correct layer.



Same with text style (if (= mystyle nil) (make the style)) where mystyle is the name of your style. This way its not ran every time you add a grid.



Good to see having a go, you get more help if you try coding 1st.









Edited January 16 by BIGAL
