Help in Making Helix Gear

[basty]

Can someone tell me please how do I make a helix gear in AutoCAD 2014 in classic workspace?



Is it using Loft command or Sweep command?



How do I use Loft command using a path?

[basty]

Please see the attached .dwg file.

The red line is the path.

Gear.dwg

[ReMark]

You can loft the two profiles to achieve the desired result.  You don't need a path to do it either.

[basty]

Why my AutoCAD 2014 doesn't work when trying to use Region command? please see attached file

Region.dwg

[ReMark]

The triangular portions of your drawing are actually a block reference.  You can't make a region out of a block.

Edited November 11, 2023 by ReMark

[basty]

What is block reference? Fyi, I created the 2D triangle and make Region on it.

Edited November 11, 2023 by basty

[ReMark]

The triangles are all part of a block (a group of objects treated as a single entity).  You cannot use a block to create a region.  Explode the block then try again.

[basty]

I use Explode command as you instructed and next, I make a Region of it.

But I doesn't want to be extruded.

The command message is:



"Cannot sweep or extrude an object of this type."

Edited November 11, 2023 by basty

[ReMark]

You're going to have to explode the triangles a second time because, for some unknown reason, you created individual triangles as a block then grouped them together to create a second block.  Your understanding of creating blocks needs some refinement.

[ReMark]

Image removed.





Edited November 11, 2023 by ReMark

[basty]



12 minutes ago, ReMark said:

You're going to have to explode the triangles a second time because, for some unknown reason, you created individual triangles as a block then grouped them together to create a second block.  Your understanding of creating blocks needs some refinement.



Sorry, I followed your instruction but still doesn't works

However, I manage to make it work.

The step is, I make Region of the gear teeth (this case is triangle), then Extrude it, and next it to Polar Array 10 items.



Edited November 11, 2023 by basty

[basty]

1 minute ago, ReMark said:

The image below demonstrates what lies at the root of your problem.  On the far left is your original objects.  I copied the triangles to the right.  They represent one object.  I copied the triangles to the right, again, and exploded them.  Now you have ten objects.  I copied them to the right, one more time, exploded them and now you have thirty objects.





What do you mean with 10 objects nd 30 objects? How do I check it?

[ReMark]

It didn't work because you created an individual tooth of the gear as a block.  Then you grouped ten of them together and created a second block.

[ReMark]

1 minute ago, basty said:



What do you mean with 10 objects nd 30 objects? How do I check it?

See above post for answer.  I checked by using the Erase command and selected the triangles.  If you look at your command line it tells you how many objects have been selected.

[ReMark]

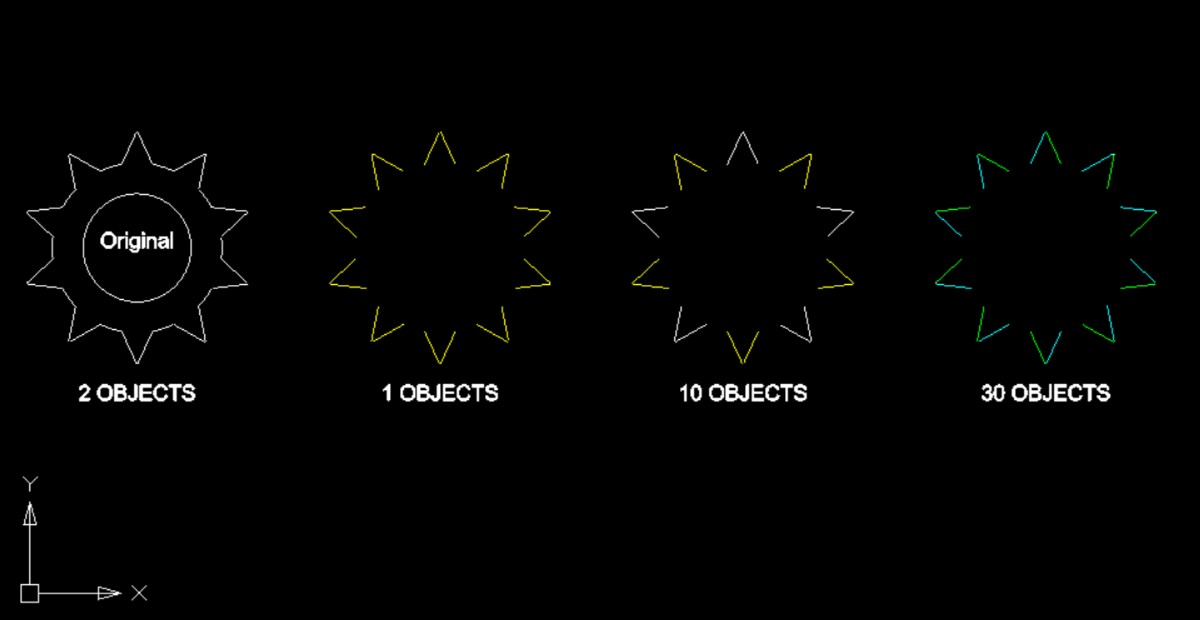

Here is a better image... Layer colors are white, yellow, green and cyan.



[basty]

54 minutes ago, ReMark said:

You're going to have to explode the triangles a second time because, for some unknown reason, you created individual triangles as a block then grouped them together to create a second block.  Your understanding of creating blocks needs some refinement.



How it can be? I am not using any commands related to block and group.

[ReMark]

Maybe it's your repeated use of the Region command?  I don't know.  I no longer run AutoCAD so I cannot test it.  I did prove that whatever method you used it negatively affected your ability to create a region out of the gear profile that you posted.

[basty]

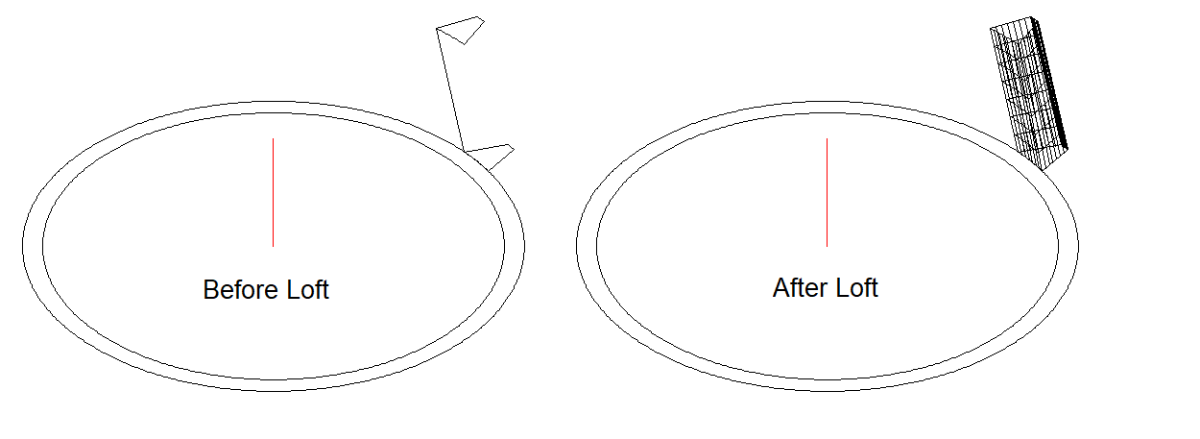

Why too many wireframe on this Lofted gear tooth?





[ReMark]

Could it be that the tooth is comprised of multiple, separate lines?  It looks like someone created a solid then exploded it thus creating surfaces.

Edited November 11, 2023 by ReMark

[basty]

I don't know. I just make the gear tooth profile (in this case is a regular triangle) in 2D and make a Region of it and then I copy and arrange the triangle to the desired position and I Loft it.
