Offset polyline

Jojo

By Jojo
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

Jojo Apprentice

Jojo

Posted
  • Author
Posted
3 hours ago, marko_ribar said:

Also I've made few changes to original code... (added - (initget) before (getstring) which is changed to (getkword)) and (atof (strcat dir (cdr (assoc 1 data))))

Not tested though...

(Pozdrav, Saxlle...)



; *****************************************************************************************************************
; Functions     :  MOBT
; Description   :  Offset LINE or POLYLINE multiple times based on text or mtext in choosen direction
; Author        :  SAXLLE
; Date          :  September 14, 2024
; Update 1.0    :  Solved a problem when LINE or POLYLINE has been drawn from bottom-to-top or top-to-bottom
;                  where the user can choose to reverse the drawing direction or not
; Update date   :  September 15, 2024
; *****************************************************************************************************************

(prompt "\nTo run a LISP type: MOBT")
(princ)

(defun c:MOBT (/ ename spt ept answ dir ss len i data)

  (or (not (vl-catch-all-error-p (vl-catch-all-apply (function vlax-get-acad-object) nil))) (vl-load-com))

  (setq old_osm (getvar "osmode"))
  (setvar "osmode" 0)
  (setq ename (car (entsel "\nSelect LINE or POLYLINE to offset:")))
  (princ)
  (while (not (or (= "LINE" (cdr (assoc 0 (entget ename)))) (= "LWPOLYLINE" (cdr (assoc 0 (entget ename))))))
    (prompt "\nSelected entity must be LINE or POLYLINE. Try again...")
    (setq ename (car (entsel "\nSelect LINE or POLYLINE to offset:")))
    (princ)
    )
  (cond
    ((= "LINE" (cdr (assoc 0 (entget ename))))
     (setq spt (vlax-curve-getStartPoint (vlax-ename->vla-object ename)))
     (setq ept (vlax-curve-getEndPoint (vlax-ename->vla-object ename)))
     (if (> (cadr ept) (cadr spt))
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from bottom-to-top. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from top-to-bottom. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       )
     )
    ((= "LWPOLYLINE" (cdr (assoc 0 (entget ename))))
     (setq spt (vlax-curve-getStartPoint (vlax-ename->vla-object ename)))
     (setq ept (vlax-curve-getEndPoint (vlax-ename->vla-object ename)))
     (if (> (cadr ept) (cadr spt))
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from bottom-to-top. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from top-to-bottom. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       )
     )
    )
  (setvar "osmode" old_osm)
  (princ (strcat "\nThe " (cdr (assoc 0 (entget ename))) " is offseted " (rtos len 2 0) " times."))
  (princ)
)



Marko. It works!!!! I'm so HAPPY...........Thank you Marko and thank everybody. Video attached.

  • Replies 42
  • Created
  • Last Reply

Top Posters In This Topic

  • Jojo

    21

  • BIGAL

    12

  • Saxlle

    4

  • marko_ribar

    2

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Jojo
Jojo

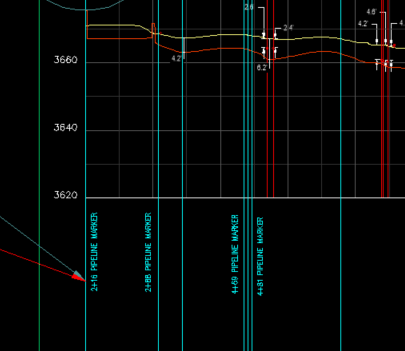

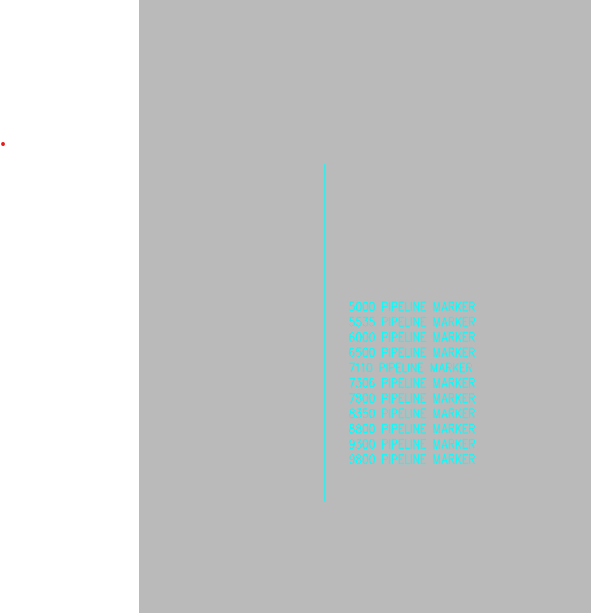

Looking for LSP for offset polyline by selecting mtext with value . I have a polyline that I need to offset with different distance and it would be great if I can just select the text and it will offs

BIGAL
BIGAL

With mtext you can use a stripmtext that will remove the control stuff and you end up with a plain text, google Lee-mac stripmtext.

BIGAL
BIGAL

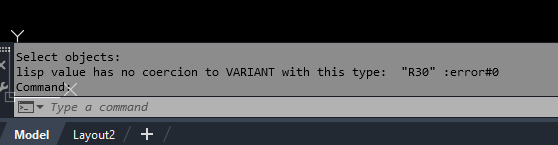

When you respond "did not work" it does not tell us anything, need to know did you get error messages or wrong objects drawn.    Please provide more details.

Posted Images

Saxlle Contributor

Saxlle

Posted
Posted
16 hours ago, marko_ribar said:

Also I've made few changes to original code... (added - (initget) before (getstring) which is changed to (getkword)) and (atof (strcat dir (cdr (assoc 1 data))))

Not tested though...

(Pozdrav, Saxlle...)



; *****************************************************************************************************************
; Functions     :  MOBT
; Description   :  Offset LINE or POLYLINE multiple times based on text or mtext in choosen direction
; Author        :  SAXLLE
; Date          :  September 14, 2024
; Update 1.0    :  Solved a problem when LINE or POLYLINE has been drawn from bottom-to-top or top-to-bottom
;                  where the user can choose to reverse the drawing direction or not
; Update date   :  September 15, 2024
; *****************************************************************************************************************

(prompt "\nTo run a LISP type: MOBT")
(princ)

(defun c:MOBT (/ ename spt ept answ dir ss len i data)

  (or (not (vl-catch-all-error-p (vl-catch-all-apply (function vlax-get-acad-object) nil))) (vl-load-com))

  (setq old_osm (getvar "osmode"))
  (setvar "osmode" 0)
  (setq ename (car (entsel "\nSelect LINE or POLYLINE to offset:")))
  (princ)
  (while (not (or (= "LINE" (cdr (assoc 0 (entget ename)))) (= "LWPOLYLINE" (cdr (assoc 0 (entget ename))))))
    (prompt "\nSelected entity must be LINE or POLYLINE. Try again...")
    (setq ename (car (entsel "\nSelect LINE or POLYLINE to offset:")))
    (princ)
    )
  (cond
    ((= "LINE" (cdr (assoc 0 (entget ename))))
     (setq spt (vlax-curve-getStartPoint (vlax-ename->vla-object ename)))
     (setq ept (vlax-curve-getEndPoint (vlax-ename->vla-object ename)))
     (if (> (cadr ept) (cadr spt))
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from bottom-to-top. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from top-to-bottom. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       )
     )
    ((= "LWPOLYLINE" (cdr (assoc 0 (entget ename))))
     (setq spt (vlax-curve-getStartPoint (vlax-ename->vla-object ename)))
     (setq ept (vlax-curve-getEndPoint (vlax-ename->vla-object ename)))
     (if (> (cadr ept) (cadr spt))
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from bottom-to-top. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       (progn
         (initget 1 "Y N y n Yes No yes no YES NO")
         (setq answ (getkword "\nThe selected entity has been drawn from top-to-bottom. Do you want to reverse direction? [Yes/No]"))
         (if (or (= answ "Y") (= answ "y") (= answ "Yes") (= answ "yes") (= answ "YES"))
           (progn
             (command "._reverse" ename "")
             (princ "\nThe selected entity has changed direction from bottom-to-top.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [- Left/+ Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           (progn
             (prompt "\nThe selected entity retains the current direction from top-to-bottom.")
             (princ)
             (initget 1 "- +")
             (setq dir (getkword "\nChoose a side for offset [+ Left/- Right]:"))
             (princ)
             (prompt "\nSelect the TEXT or MTEXT with numbers for offset:")
             (terpri)
             (setq ss (ssget '((0 . "TEXT,MTEXT"))))
             (setq len (sslength ss))
             (setq i 0)
             (while (< i len)
               (setq data (entget (ssname ss i)))
               (vla-Offset (vlax-ename->vla-object ename) (atof (strcat dir (cdr (assoc 1 data)))))
               (setq i (1+ i))
               )
             )
           )
         )
       )
     )
    )
  (setvar "osmode" old_osm)
  (princ (strcat "\nThe " (cdr (assoc 0 (entget ename))) " is offseted " (rtos len 2 0) " times."))
  (princ)
)



Thank you Marko. (Hvala ti, uradio si izmenu umesto mene. Pozdrav!)

Jojo Apprentice

Jojo

Posted
  • Author
Posted
On 9/26/2024 at 10:08 AM, Saxlle said:

@Jojo

The problem is that you type a "r" to offset. You need to enter "+" or "-", or just pick a desire direction to offset line or polyline from command line (you will see a highlighted values "+" or "-").



Best regards.

Thank you Saxlle. It work awesome. much appreciated.

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Unfortunately, your content contains terms that we do not allow. Please edit your content to remove the highlighted words below.
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
 Share
Go to topic listing
×
×
  • Create New...
