basty Posted October 6, 2023 Share Posted October 6, 2023 Can someone tell me step-by-step please how do I create egg in AutoCAD? Thank you Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 6, 2023 Share Posted October 6, 2023 One possible solution: Draw the profile using a polyline then use the Revolve command to create the egg. Quote Link to comment Share on other sites More sharing options...
Steven P Posted October 6, 2023 Share Posted October 6, 2023 You'll be wanting this https://dwgfree.com/product/chicken-elevation-dwg/ Though ReMark answer also works. Draw 1 half of the north-south shape, 2 mirror to give a symmetrical egg, 3d revolve around the open axis Quote Link to comment Share on other sites More sharing options...
basty Posted October 7, 2023 Author Share Posted October 7, 2023 How do I draw the profile as similar as possible to the real egg one? Quote Link to comment Share on other sites More sharing options...
eldon Posted October 7, 2023 Share Posted October 7, 2023 You should search online for "The mathematics of egg shape" Birds, inconveniently, do not have a standard egg former built in. Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 7, 2023 Share Posted October 7, 2023 3 hours ago, basty said: How do I draw the profile as similar as possible to the real egg one? Import the image above and trace it? Quote Link to comment Share on other sites More sharing options...

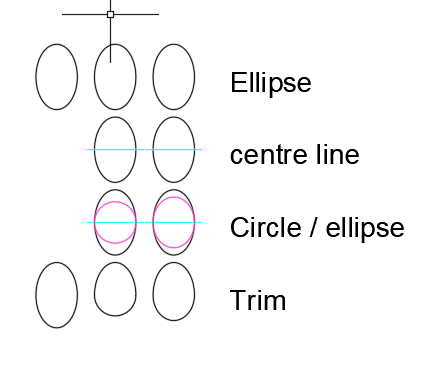

Steven P Posted October 7, 2023 Share Posted October 7, 2023 3 simple ways: I think the shape is 2 ellipses stuck together, so make 2 shapes that intersect and trim: Basic ellipse is quick and easy, circle and ellipse gives a squat looking egg, ellipse and ellipse is a more normal shape. Your artistic ability will determine the exact egg shape. Quote Link to comment Share on other sites More sharing options...
basty Posted October 8, 2023 Author Share Posted October 8, 2023 How do I trace it? I can't and I don't understand. Show me please. Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 8, 2023 Share Posted October 8, 2023 (edited) 6 hours ago, basty said: How do I trace it? I can't and I don't understand. Show me please. You can use the ATTACH command, in AutoCAD, to insert an image file then use whatever combination of DRAW commands to trace the edge of the egg. It can be arc, line, polyline, ellipse and/or spline. Edited October 8, 2023 by ReMark Quote Link to comment Share on other sites More sharing options...
basty Posted October 8, 2023 Author Share Posted October 8, 2023 (edited) 6 hours ago, ReMark said: You can use the ATTACH command, in AutoCAD, to insert an image file then use whatever combination of DRAW commands to trace the edge of the egg. It can be arc, line, polyline, ellipse and/or spline. How do I trace it using spline? Can you show me please using fit point. Edited October 8, 2023 by basty Quote Link to comment Share on other sites More sharing options...
Steven P Posted October 8, 2023 Share Posted October 8, 2023 paste the image into CAD, turn off snaps, start spline command, then working from the top or bottom, just draw the spline with enough points so that it makes the shape of half the egg. mirror and join the 2 hlaves. Curious what the purpose of the exercise is, a learning thing but is it for learning how splines work or something else. Note that tracing an image doesn't give a precise shape but might be good enough Quote Link to comment Share on other sites More sharing options...
basty Posted October 8, 2023 Author Share Posted October 8, 2023 How many points? Quote Link to comment Share on other sites More sharing options...

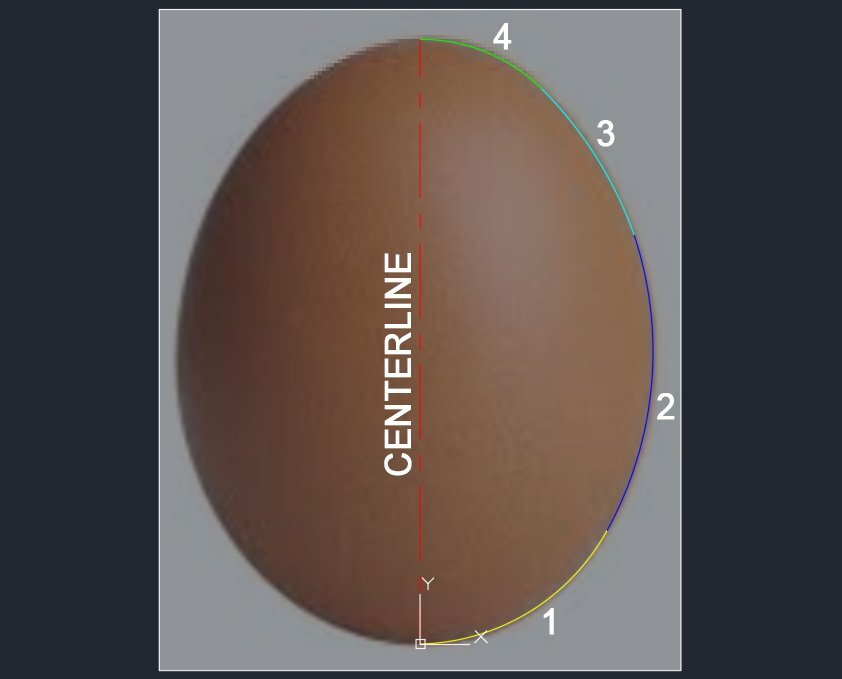

Cad64 Posted October 9, 2023 Share Posted October 9, 2023 In the image below, I created half the egg using 4 arc's. To complete the drawing you can join the arc's together using the PEDIT command and then MIRROR across the centerline. If you want to create a 3D model, you can join the arc's together with the PEDIT command and then REVOLVE around the centerline. Quote Link to comment Share on other sites More sharing options...
Steven P Posted October 9, 2023 Share Posted October 9, 2023 15 hours ago, basty said: How many points? That is up to you really. Have a go, post the results here and we can comment with more suggestions for improvements Quote Link to comment Share on other sites More sharing options...
SLW210 Posted October 9, 2023 Share Posted October 9, 2023 Which egg shape do you want? A new equation can describe every egg - Scienceline 1 Quote Link to comment Share on other sites More sharing options...
SLW210 Posted October 9, 2023 Share Posted October 9, 2023 I moved your thread, stop posting all of your threads in the beginners section. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted October 9, 2023 Share Posted October 9, 2023 Even more information. Math_Fun_by_AutoCAD 1 Quote Link to comment Share on other sites More sharing options...
