Automatic Draw Polyline From Block To Text/Mtext at Once


Recommended Posts

Posted

maybe Support what you want With an example of a drawing complete

Posted (edited)

Maybe this a quick and dirty

(defun c:wow ( / ss blk inspt inspt2)
(setq blk (entsel "\npick block "))
(setq inspt (cdr (assoc 10 (entget (car blk)))))
(prompt "Select text ")
(setq ss (ssget '((0 . "*TEXT"))))
(if (= ss nil)
 (alert "No plain Text selected ")
 (repeat (setq x (sslength ss))
  (setq ent (ssname ss (setq x (1- x))))
  (setq inspt2 (cdr (assoc 10 (entget ent))))
  (command "line" inspt inspt2 "")
 )
)
(princ)
)



Edited by BIGAL
Posted

I have tried with the lisp that you have provided, the results still do not change.




Posted
On 9/30/2023 at 11:28 AM, hosneyalaa said:

maybe Support what you want With an example of a drawing complete

I want to create lines or polylines at once, from the same object to different destinations

Posted

Did you pick a block, then Mtext text etc without a dwg to test not sure what is happening.

Posted
17 hours ago, BIGAL said:

Did you pick a block, then Mtext text etc without a dwg to test not sure what is happening.

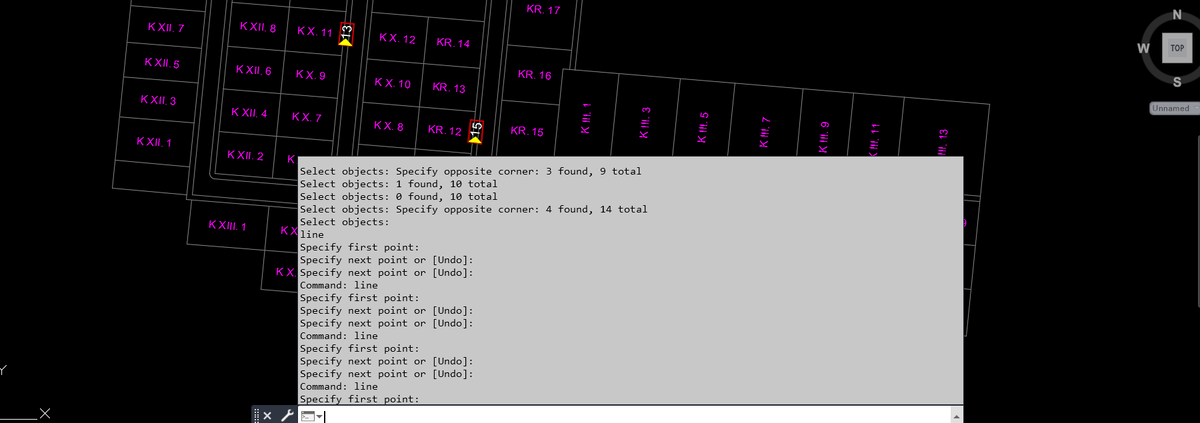

I have followed the command prompt instructions, and the result is that nothing happens

Posted

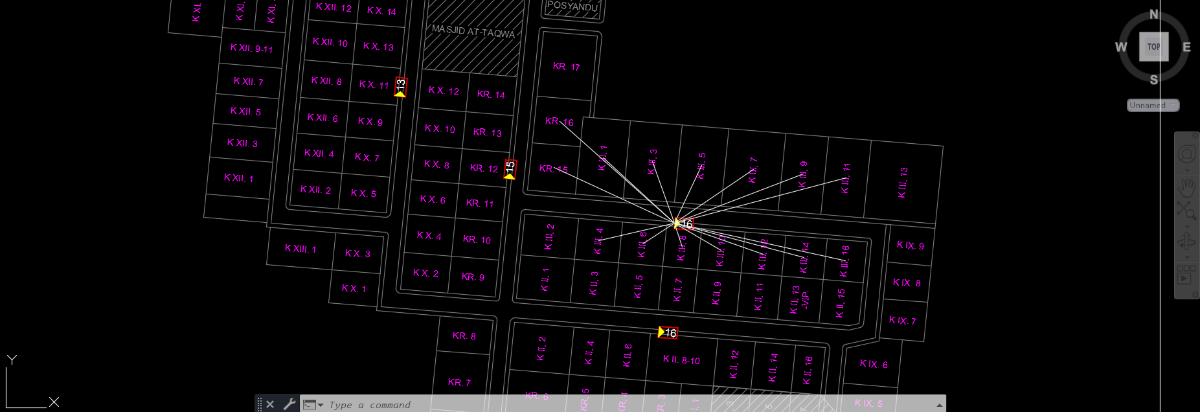

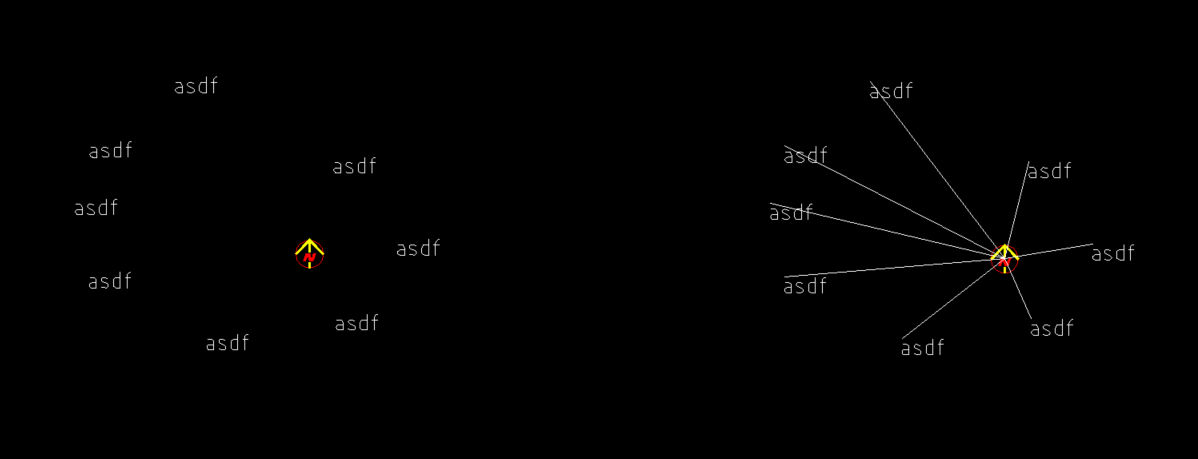

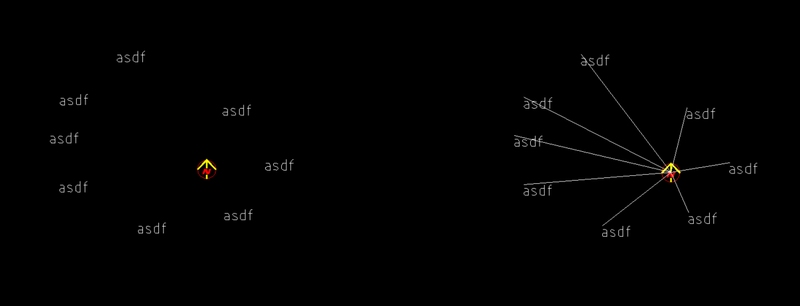

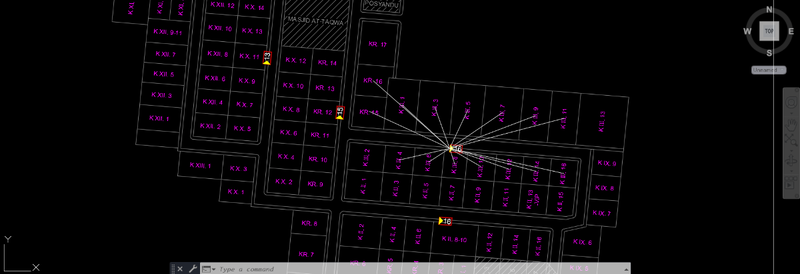

Not sure what is wrong, before after




Maybe something to do with your block post a sample dwg.

Posted (edited)
5 hours ago, BIGAL said:

Not sure what is wrong, before after




Maybe something to do with your block post a sample dwg.

Edited by zams23
it's solved
Posted
5 hours ago, BIGAL said:

Not sure what is wrong, before after




Maybe something to do with your block post a sample dwg.

You are so amazing. thank you for helping me. its work 🙏

Posted
On 10/1/2023 at 11:28 AM, BIGAL said:

Maybe this a quick and dirty

(defun c:wow ( / ss blk inspt inspt2)
(setq blk (entsel "\npick block "))
(prompt "Select text ")
(setq inspt (cdr (assoc 10 (entget (car blk)))))
(setq ss (ssget '((0 . "*TEXT"))))
(if (= ss nil)
(alert "No plain Text selected ")
(repeat (setq x (sslength ss))
(setq ent (ssname ss (setq x (1- x))))
(setq inspt2 (cdr (assoc 10 (entget ent))))
(command "line" inspt inspt2 "")
)
)
(princ)
)



if i want to change from block to all object, how to change the lisp. 🥹

Posted

You could just pick a point.

; (setq blk (entsel "\npick block "))
(setq inspt (getpoint "\nPick point for end of lines. "))



Posted
; 1L - 2023.10.05 exceeds
; draw lines from selected objects to 1 point.

(defun c:1L (/ *error* acdoc ss ssl pt1 index ent pt2 line)
  (setq acdoc (vla-get-activedocument (vlax-get-acad-object)))
  (defun *error* (msg)
    (vla-endundomark acdoc)
    (or (wcmatch (strcase msg) "*BREAK,*CANCEL*,*EXIT*")
        (princ (strcat "\n** Error: " msg " **"))
    )
    (princ)
  )
  (vla-endundomark acdoc)
  (vla-startundomark acdoc)

  (princ "\n Select Objects to draw line : ")
  (setq ss (ssget))
  (setq ssl (sslength ss))
  (princ "\n Pick origin point : ")
  (setq pt1 (getpoint))
  (princ pt1)
  (setq index 0)
  (repeat ssl
    (setq ent (ssname ss index))
    (setq pt2 (cdr (assoc 10 (entget ent))))
    (setq line (entmakex
                 (list (cons 0 "LINE")
                       (cons 10 (list (car pt1) (cadr pt1) 0.0))
                       (cons 11 (list (car pt2) (cadr pt2) 0.0))
                 )
               )
    )
    (setq index (+ index 1))
  )
  (vla-endundomark acdoc)
  (princ)
)



This is what I use.

It can be used with manual selection set,

but it is also good for remembering the selection set

after [Find > SelectAll] or [QSELECT] something.
