Lisp to Mirror Polyline on its longest line

[asdfgh]

Hello everyone,

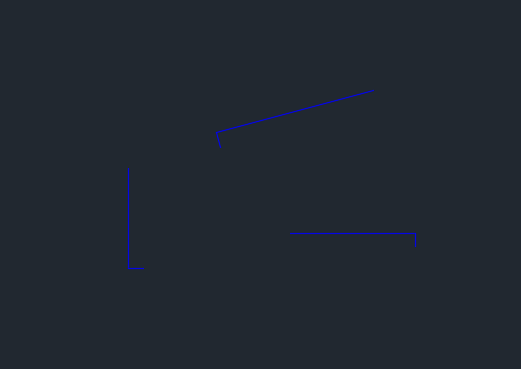

I have a lot of polylines  like the ones in the picture.

I wan to mirror all of them on the longest side of the polyline like the following picture.

Does anyone have a lisp like that ?

new block.dwg

[Steven P]

So you could use one of these: https://stackoverflow.com/questions/36852628/autolisp-entity-data-retrieval/48857993#48857993 massoc functions to get the coordinates of the polyline, and loop though this list to work out the distance between points - the largest distance will give you the mirror line. Should be simple then to use (command "mirror"..... ) afterward.





[fuccaro]

(defun c:pp()
  (setq ssp (ssget "X" (list '(0 . "LWPOLYLINE"))))
  (repeat (setq i (sslength ssp))
    (setq pl1 (ssname ssp (setq i (1- i)))
    	  el1 (entget pl1)
	  points (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) el1))
	  )
    (cond ((= 3 (length points)) (setq points (if (< (distance (car points) (cadr points))(distance (cadr points) (caddr points)))(reverse points)points))))
    (entmake (list '(0 . "LWPOLYLINE") '(100 . "AcDbEntity") '(100 . "AcDbPolyline") '(8 . "0") '(90 . 3) '(70 . 0) '(38 . 0) '(67 . 0)  (cons 10 (car points)) (cons 10 (cadr points)) (cons 10  (mapcar '- (cadr points) (mapcar '- (caddr points)(cadr points))))))
  )
)

Does this work for you?

It draws new polylines on the layer "0". Change to suit your needs...



*** editing ***

Should the original polyline have been deleted? If so, please insert at the end of the loop:

 (entdel pl1)



[Tharwat]

(defun c:Test ( / int sel ent pts 1st grp )
  ;;----------------------------------------------------;;
  ;;	Author : Tharwat Al Choufi			;;
  ;; website: https://autolispprograms.wordpress.com	;;
  ;;----------------------------------------------------;;
  (and (setq int -1 sel (ssget "_:L" '((0 . "LWPOLYLINE"))))
       (while (setq int (1+ int) ent (ssname sel int))
         (and (mapcar (function (lambda (q)
                                  (and (= (car q) 10) (setq pts (cons (cdr q) pts)))
                                  )
                                )
                      (entget ent))
              (< 1 (length pts))
              (setq 1st (car pts))
              (mapcar (function (lambda (p) (setq grp (cons (list (distance 1st p) 1st p) grp) 1st p))) (cdr pts))
              (setq grp (car (vl-sort grp (function (lambda (j k) (> (car j) (car k)))))))
              (vlax-invoke (vlax-ename->vla-object ent) 'mirror (append (cadr grp) '(0.0)) (append (caddr grp) '(0.0)))
              (entdel ent)
              (setq grp nil pts nil)
              )
         )
       )
  (princ)
  ) (vl-load-com)





Edited September 14, 2023 by Tharwat
ssget mode string added

[asdfgh]

@Tharwat @fuccaro @Steven P Thanks for your replies
