Path Curve along Elliptical Shape

Arun12

By Arun12
in AutoCAD 3D Modelling & Rendering

 Share

Recommended Posts

Arun12 Newbie

Arun12

Posted
Posted

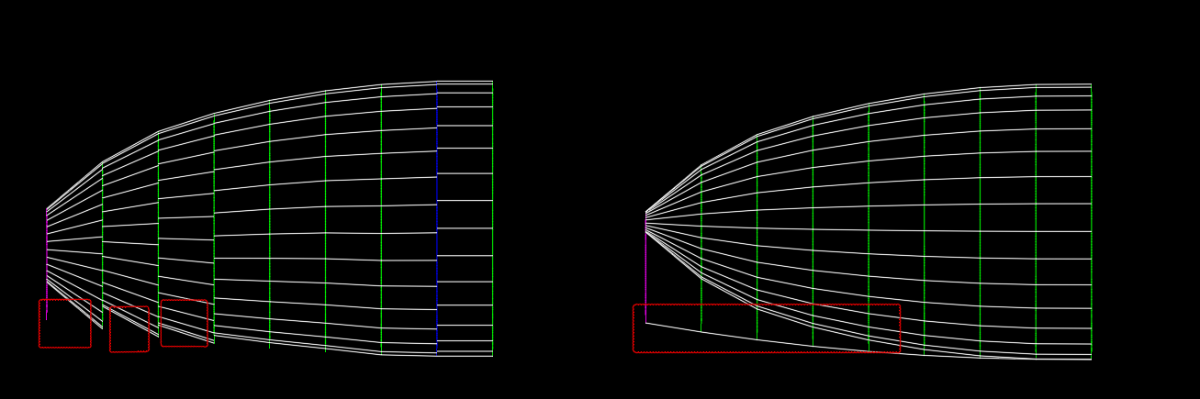

Hi all,When I run the command path array over the elliptical curve it doesn't fully run over the curve as i clouded in the below attached image.I also attached dwg file.Can anyone please suggest me some ideas to run the line over the elliptical curve at a distance of 600mm between the lines and it should cover the full ellpitical path?

Purlin Arrangement.dwg

BIGAL Grand Master

BIGAL

Posted
Posted

Have you looked at Revsurf ? Can set the number of faces.
