Door All Glazed in Revit

[nicolas]

Hi,

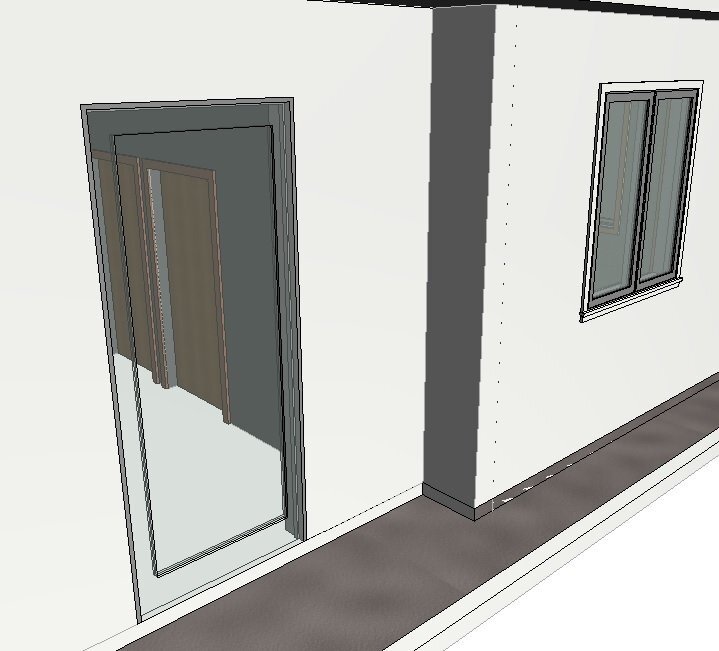

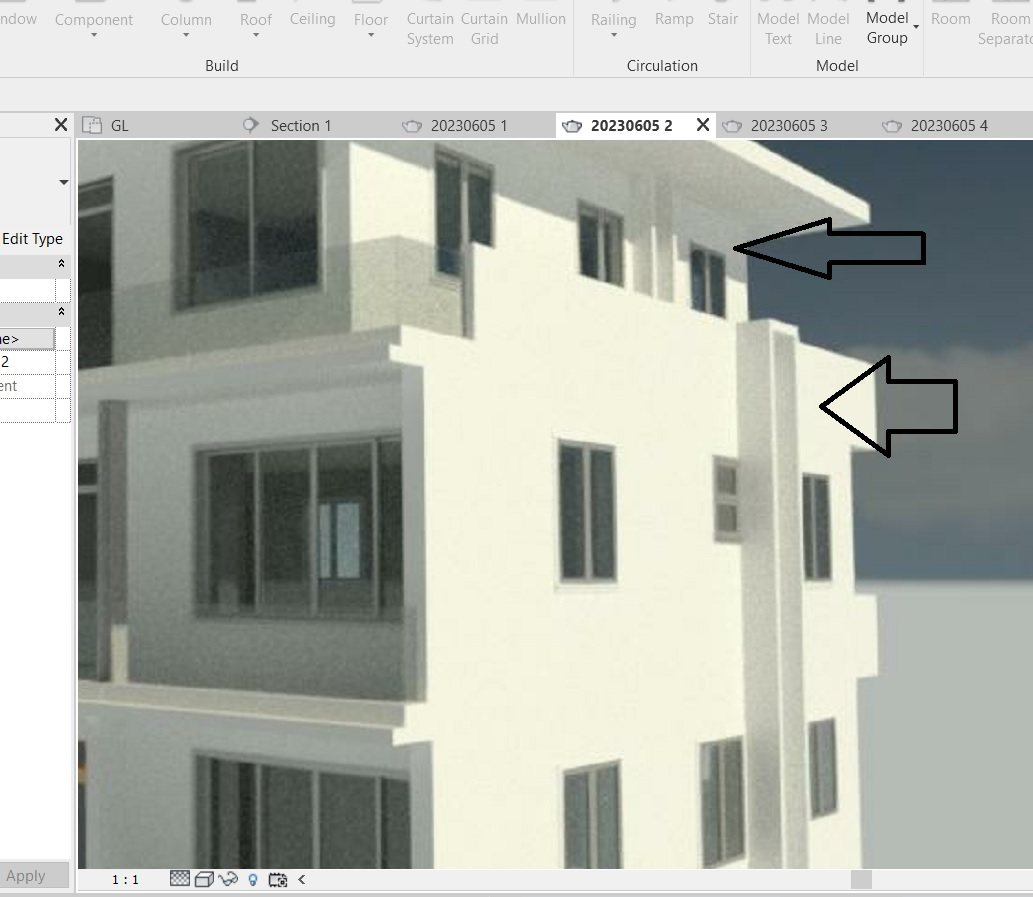

This is my first project in Revit.  However I am having difficulties with a single external door for the frame and sash through I chosed aluminium as material is all glazed in the model and rendered view.  Also I want to know how I can re-used the same aluminium door and replaced the glazing with infilled panel or aerated panel for the riser doors.



[nod684]

Seems to me the materials was duplicated, can you help attached your door here so we can check your material?



[nicolas]

Hi nod684,

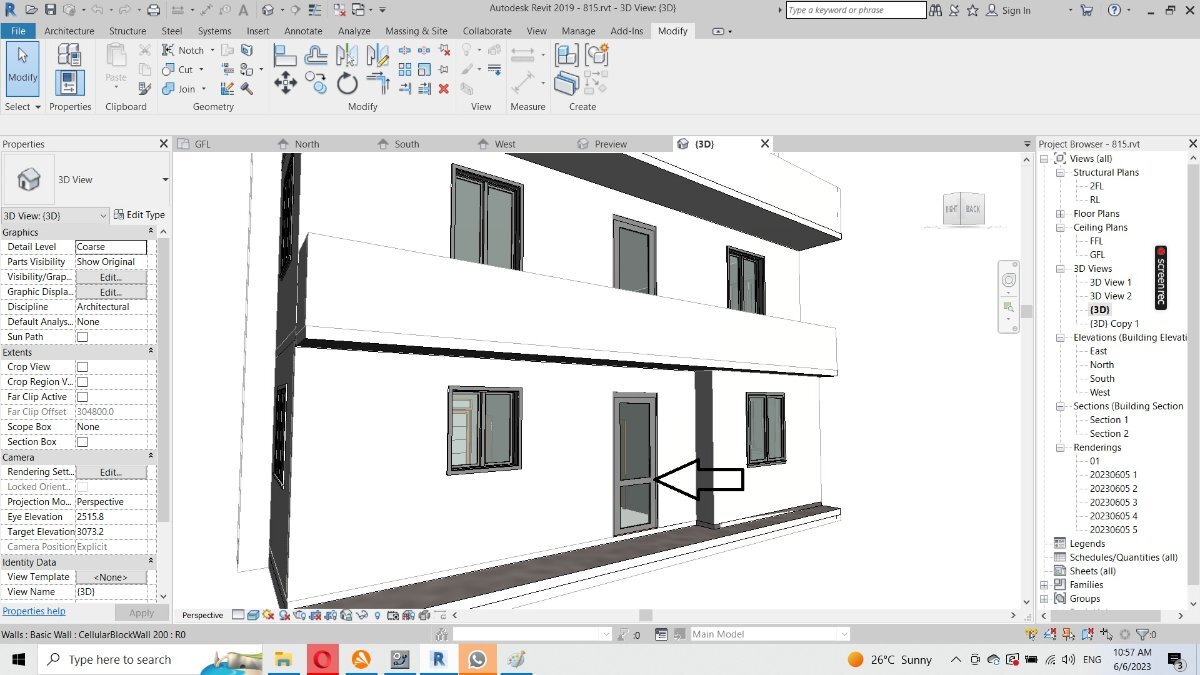

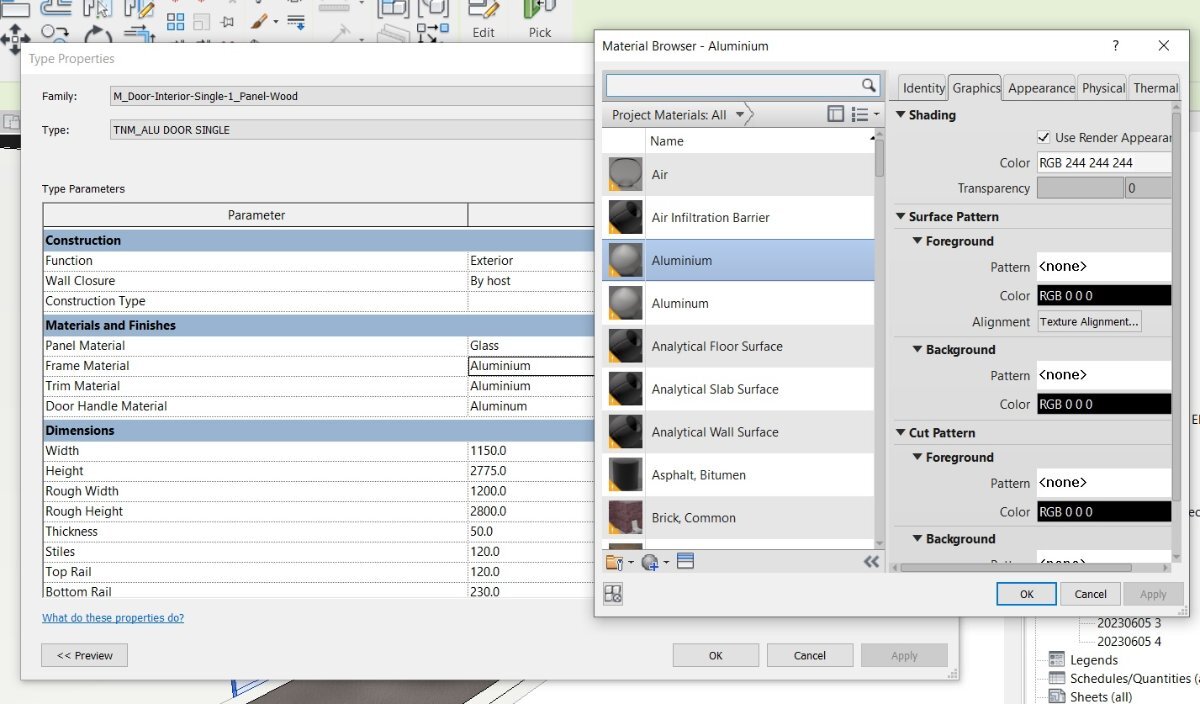

Thanks for helping.  This is the door family I modified and yet is all glazed in the revit model.



I have also found another door but there is a middle rail that I will like to remove that will give the exact same result.



Thanks.

M_Door-Interior-Single-1_Panel-Wood.rfa M_Door-Exterior-Single-Two_Lite.rfa

[nod684]

ok will look into it and feedback later..

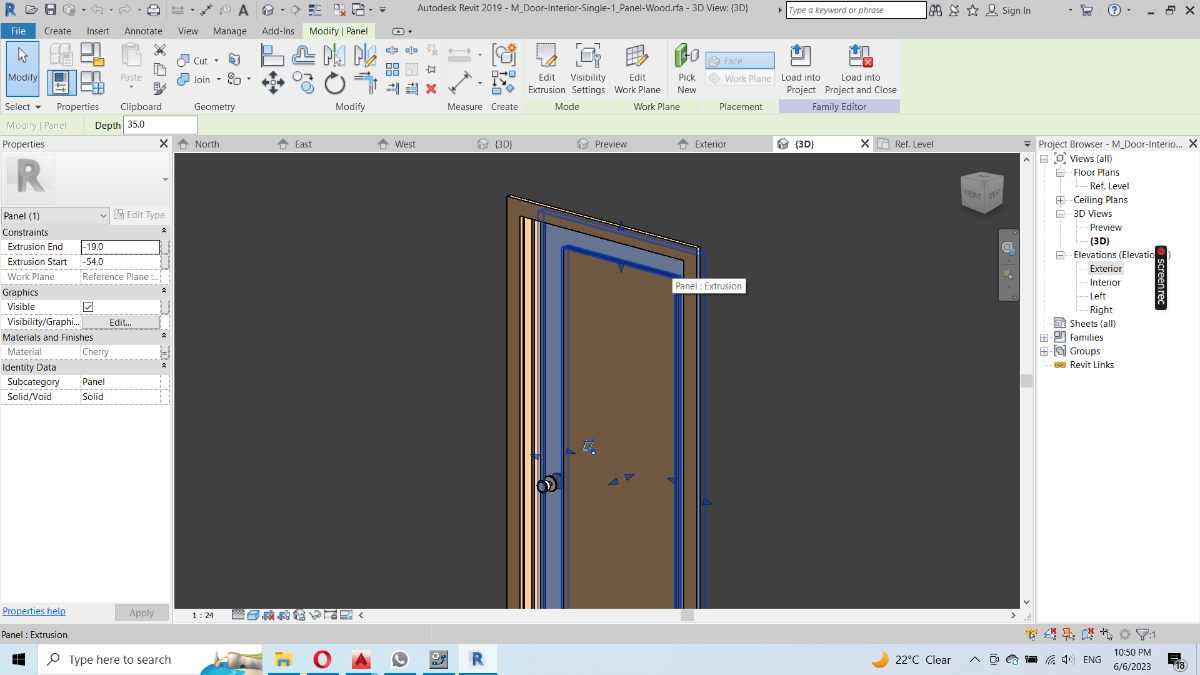

The door panel is under Glass Material

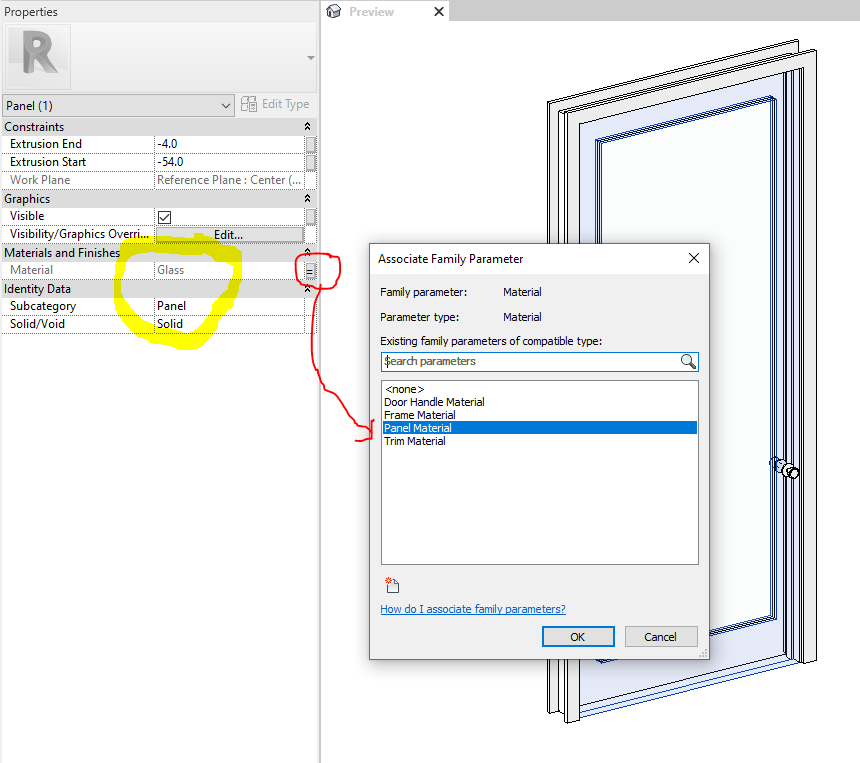

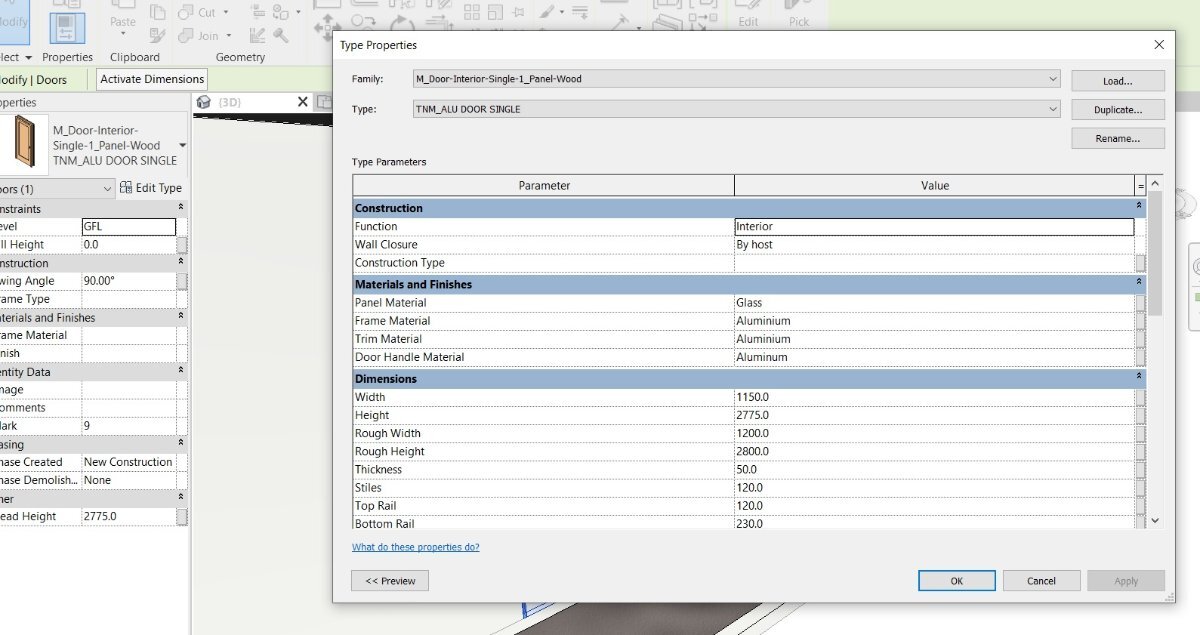

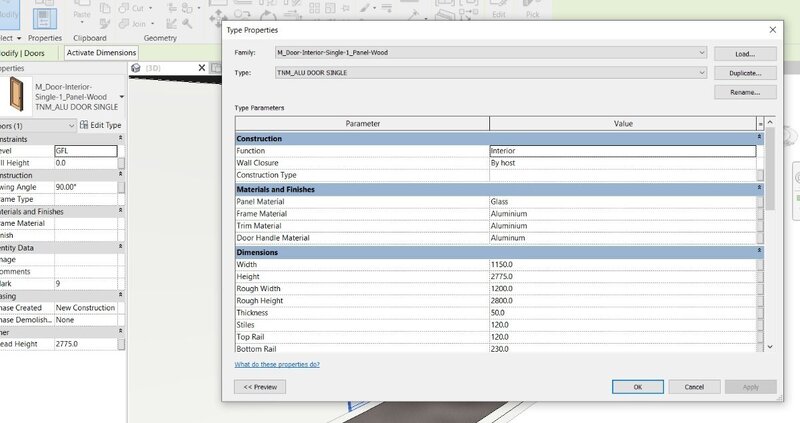

As you can see in the screenshot, I selected the Door Panel, and in the properties the RED circle is linked to a Parameter named Panel Material.

The material set for this parameter is Glass  (encircled in Yellow)



So you may want to change this material.



I have also found another door but there is a middle rail that I will like to remove that will give the exact same result.



Regarding this,  I noticed that you are using 2019 Version. I am using 2021 version currently.  Revit doesn't allow backward compatibility meaning if I save this door family in 2021 version, you cannot open that anymore in 2019 version



As





Edited June 6, 2023 by nod684

[nicolas]

Thanks for your help.  I now understand what is really happening.  It is a timber door where the panel includes both the frame and what I will later called glass but in the author's mindset there is no such distinction.  When I selected glass for panel, I thought only the interior panel will be glass but its outer frame is also included as panel.  I have devoted countless hours on this only to figure this now.  I will need to use the aluminium door or a timber door with a glass panel and then change the frame to aluminium.

[nod684]

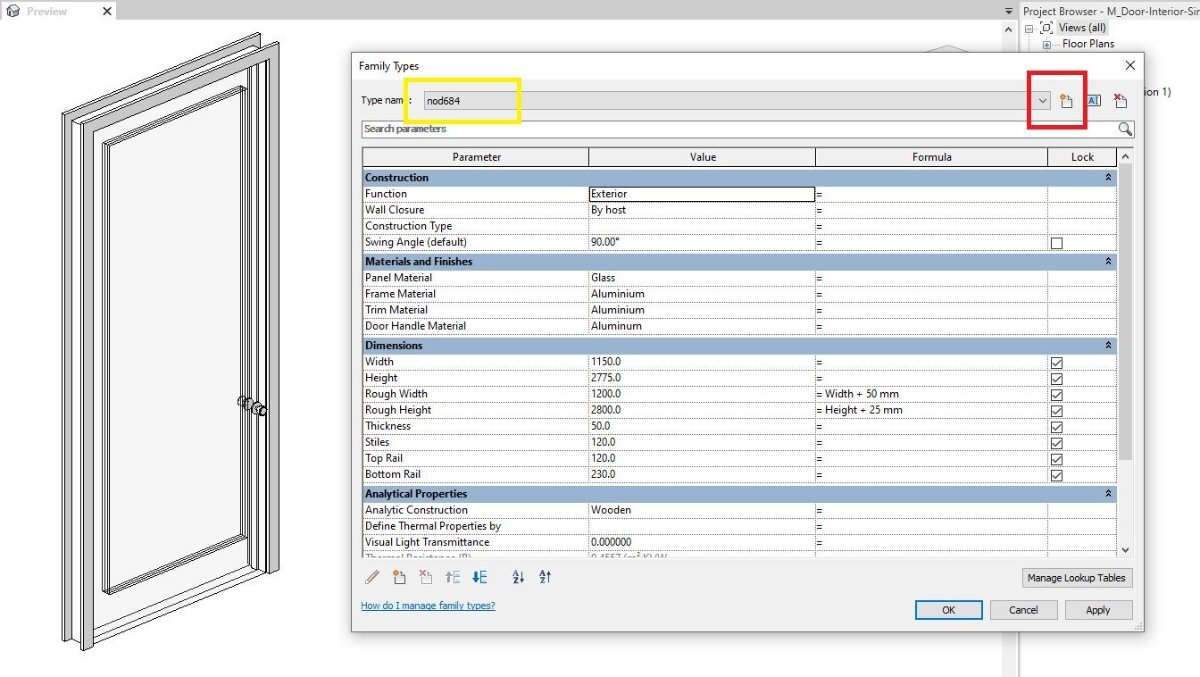

have you solve this? What you can do is create a New  Type (click the button mark with Red rectangle and assign a new name ( Marked in yellow Rectangle in my case.

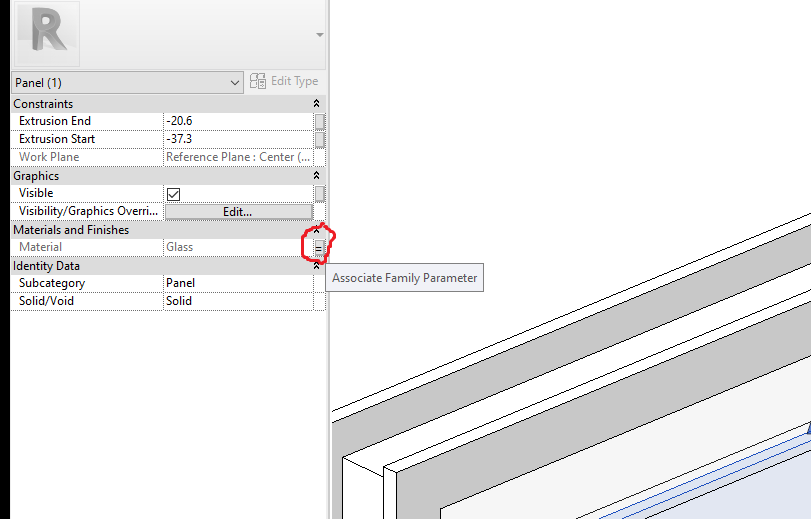

Click on the panel that you need to assign the glass material and create a new Parameter for the inside Panel so you can assign a separate material for that. To do that you need to click the red circle in the image below :.



Associate a New Parameter by clicking the encircle button





Assign a parameter name , in this case I use Inside Panel.



Once done, you can assign a separate material for your inside Panel (Glass) and your Panel Material (aluminum)







Sorry my screen recording app is not working so I just use screenshots.

Post if you still have concerns...
