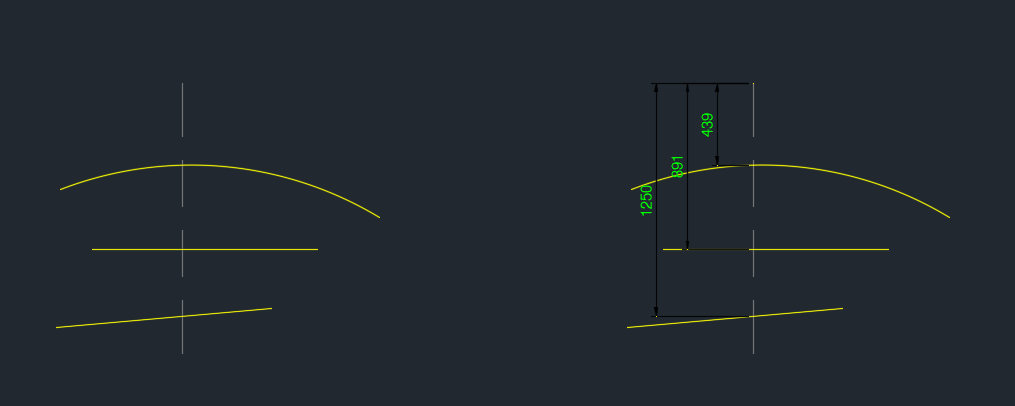

asdfgh Posted May 7, 2023 Share Posted May 7, 2023 (edited) Hello, Does anyone have lisp that could measure dimension linear at intersections between upper point of the line and intersection of the line with the yellow lines, the yellow lines could be lines, polylines or arcs. Find the following picture as reference. I need to select the white line, then select the yellow ones and the dimensions to be drawn. new block.dwg Thanks in advance Edited May 7, 2023 by asdfgh Quote Link to comment Share on other sites More sharing options...
Steven P Posted May 7, 2023 Share Posted May 7, 2023 Just wondering how this a LISP will be much quicker than Dimlinear unless you have a lot of points to dimension to the end of the line How are you with creating a LISP by the way? Might do something like: (command "dimlinear" (setq Pt1 (getpoint "Select point")) (setq Pt2 (getpoint "Select point on reference Line")) pt1 ) - start a loop (command "dimlinear" (setq Pt1 (getpoint "Select point")) pt2 pt1) end loop Job done. However it is Sudnay here, the weekend so you might have to wait to get a better answer and check that these suggestions work Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted May 7, 2023 Share Posted May 7, 2023 QDIM will dimension each one dimension between each intersection... If you want quick answer that's what I'd do - additions with measurements is no problem with me - I am satisfied with QDIM very much if I have to do it quickly... 1 Quote Link to comment Share on other sites More sharing options...
Tharwat Posted May 8, 2023 Share Posted May 8, 2023 Create the first dimension then use the command DIMBASELINE to continue from base point. Quote Link to comment Share on other sites More sharing options...
