Select objects in one viewport, then Zoom to in a new viewport

[rcb007]

I stumbled upon this code which works great in modelspace. It allows to select a pipe network pipe or structure in porfile view, then creates two modelspace viewports and zooms to the plan view of the selected object.

I am trying to figure how I can make this work within Layout Paperspace.



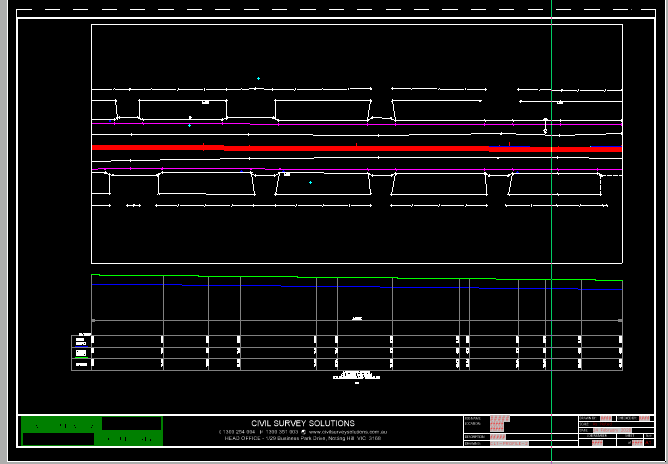

If I select a profile pipe network structure, it would prompt for a new viewport in paperspace, then it would zoom to that object.



I hope this is not to confusing. lol. Thank you for the eyes and help.



(defun c:ZTPS (/ C3D C3DDOC LOCATION NTWRK NTWRKS PROD PRODSTR PointAtParam0 PointAtParam1 OBJ OBJNAME STRUCTURES ZM2OBJ VP1 VP2)
  (defun *error* (msg)
    (and *AcadDoc* (vla-endundomark *AcadDoc*))
    (if (and msg (not (wcmatch (strcase msg) "*BREAK*,*CANCEL*,*QUIT*,")))
      (princ (strcat "\nError: " msg))))
  (vla-startundomark
    (cond (*AcadDoc*)
          ((setq *AcadDoc* (vla-get-activedocument (vlax-get-acad-object))))))
  (vl-load-com)
  (if (setq C3D	   (strcat "HKEY_LOCAL_MACHINE\\"
			   (if vlax-user-product-key
			     (vlax-user-product-key)
			     (vlax-product-key)
			   )
		   )
	    C3D	   (vl-registry-read C3D "Release")
	    C3D	   (substr
		     C3D
		     1
		     (vl-string-search "." C3D (+ (vl-string-search "." C3D) 1))
		   )
	    C3D	   (vla-getinterfaceobject
		     (vlax-get-acad-object)
		     (strcat "AeccXUiPipe.AeccPipeApplication." C3D)
		   )
	    C3Ddoc (vla-get-activedocument C3D))
    (progn
      (setq ntwrks (vlax-get c3ddoc 'Pipenetworks))
      (setq ZM2OBJ (LM:select-or-text "\nSelect Profile View Struture or Pipe to zoom to: " '((0 . "AECC_GRAPH_PROFILE_NETWORK_PART"))))
      (setq OBJNAME (if (= (TYPE ZM2OBJ) 'STR) ZM2OBJ (vla-get-name (vlax-ename->vla-object ZM2OBJ))))



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;(ai_tiledvp 2 "_V") ;; Creates Two Views within Modelspace.


;;Within layout paperspace viewport (Already Created),  <<<-------
;;Select the object, then create a new viewport  <<<-------
;;within the same layout which zooms the selected object.  <<<-------

(initget 1)
(setq VP1 (getpoint "\nSelect First Corner of Viewport: "))
(princ VP1)
(initget 1)
(setq VP2 (getcorner VP1 "\nSelect Second Corner of Viewport: "))
(princ VP2)


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


      (vlax-for	ntwrk ntwrks
	(if (not obj)
	  (progn
	    (vl-catch-all-apply
	      '(lambda ()
		 (setq structures (vlax-get ntwrk 'structures))
		 (setq obj (vlax-invoke structures 'item OBJNAME))
	       )
	      '()
	    )
	    (if (not obj)
	    (vl-catch-all-apply
	      '(lambda ()
		 (setq Pipes (vlax-get ntwrk 'Pipes))
		 (setq obj (vlax-invoke Pipes 'item OBJNAME))
	       )
	      '()
	    )
	    );if
	  )
	)
      )
      (cond
	((not obj)
	  (princ (strcat "\nStructure \"" OBJNAME "\" not found."))
	)
	((= (vla-get-objectname obj) "AeccDbStructure")
	  (setq location (vlax-get obj 'position))
	  (setq PointAtParam0 (list (vlax-get location 'x) (vlax-get location 'y)))
	  (command "zoom" "c" PointAtParam0 "50")
	)
	((= (vla-get-objectname obj) "AeccDbPipe")
	  (setq PointAtParam0 (vlax-safearray->list (vlax-variant-value (vlax-get-property obj 'PointAtParam 0))))
	  (setq PointAtParam1 (vlax-safearray->list (vlax-variant-value (vlax-get-property obj 'PointAtParam 1))))
	  (command "zoom" "w" PointAtParam0 PointAtParam1)
	  ;;(vla-highlight obj T)
	)
	(T
	  (princ (strcat "\nPipe \"" OBJNAME "\" not found."))
	)
      )
    )
  )
(*error* nil)
(princ))
