dazza1970 Posted February 20, 2009 Posted February 20, 2009 hi there, starting a new job at a gas station...at last. i need to learn how to draw isometric pipework asap... im using autocad 2006..can anyone please help me out with the basics... Quote

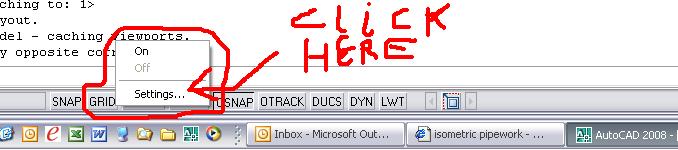

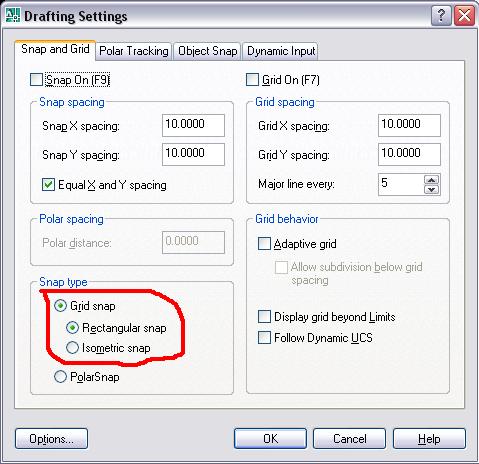

skipsophrenic Posted February 20, 2009 Posted February 20, 2009 Right click on GRID and click SETTINGS Set your Grid to ISOMETRIC snap Use ellipses to draw ISOCIRCLES, while using the F5 Key to change between left, right and top face drawing. Quote
skipsophrenic Posted February 20, 2009 Posted February 20, 2009 Post up an image an i'll have a look at it tonight an let u know Quote
