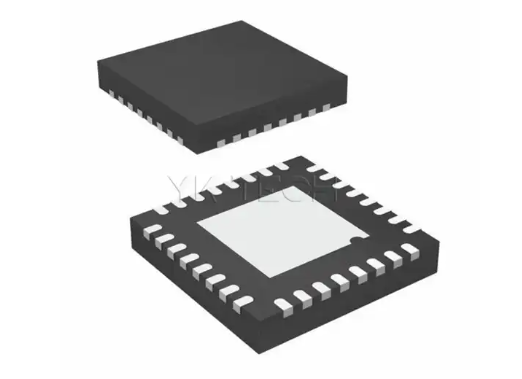

Ts5586 Posted February 16, 2023 Share Posted February 16, 2023 (edited) I am at a loss for drawing the integrated circuit model Edited February 16, 2023 by Ts5586 1 Quote Link to comment Share on other sites More sharing options...
Park287 Posted August 8, 2023 Share Posted August 8, 2023 Did you ever figure this out? I’m having the same problem right now. Quote Link to comment Share on other sites More sharing options...

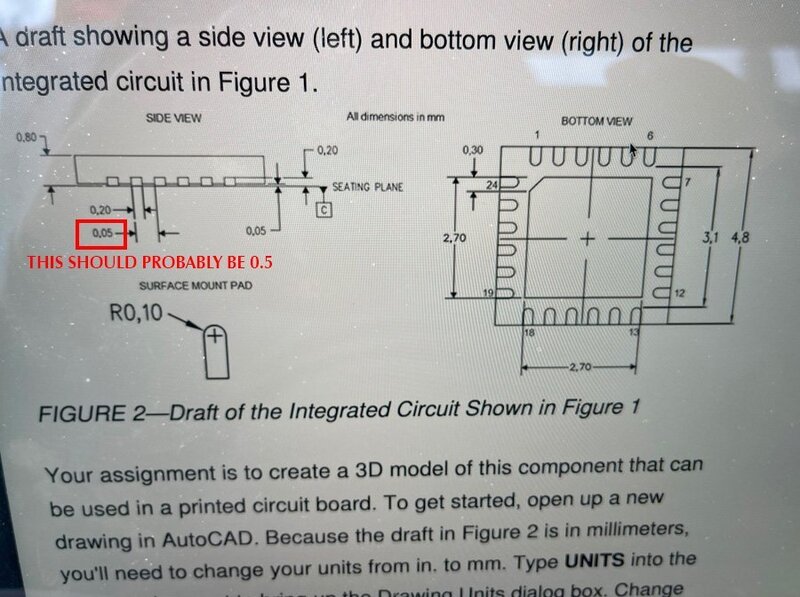

Cad64 Posted August 8, 2023 Share Posted August 8, 2023 What part of the project are you having problems with? Other than the incorrect dimension in the image below, it looks pretty straightforward. Quote Link to comment Share on other sites More sharing options...
Park287 Posted August 8, 2023 Share Posted August 8, 2023 The whole project really. The class was basically on circuits and had no autocad work in it and now the project wants autocad drawings. Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 8, 2023 Share Posted August 8, 2023 (edited) Do you have any experience with 3D in AutoCAD? It should look something like this... Edited August 8, 2023 by ReMark Quote Link to comment Share on other sites More sharing options...
