ARC START AND END POINT... HELP

[leonucadomi]

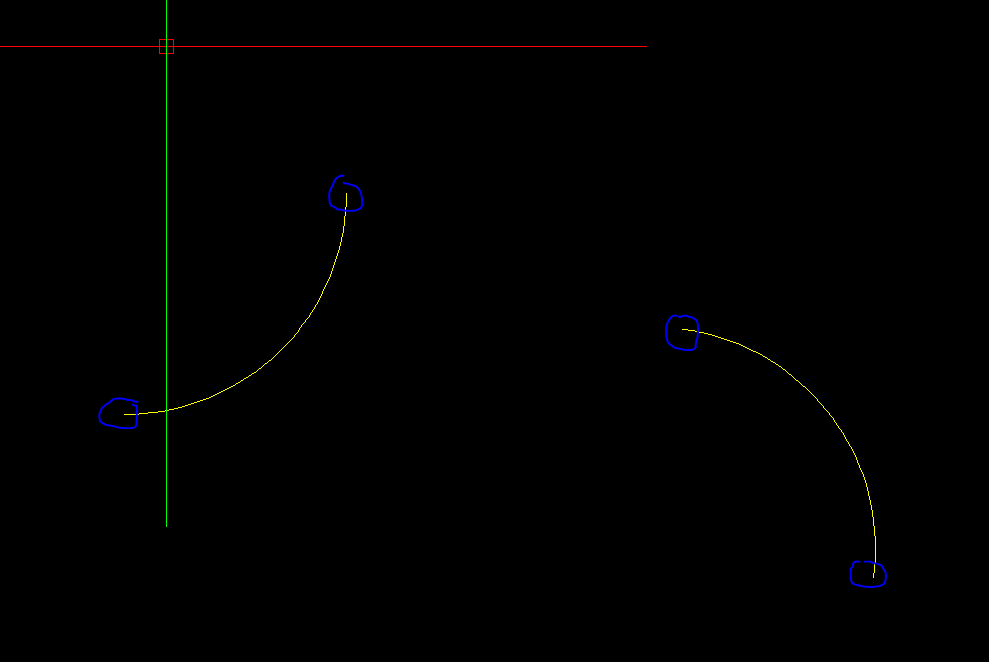

someone help me to get the start point and end point of any arc





is there any lsp routine for this?



thanks







test.dwg

[ReMark]

Why a lisp routine?  Do you normally have a drawing with two or more arcs where you require such information?

Edited July 20, 2022 by ReMark

[leonucadomi]

I need to learn how to get those points, I need it for another more complex routine

[leonucadomi]

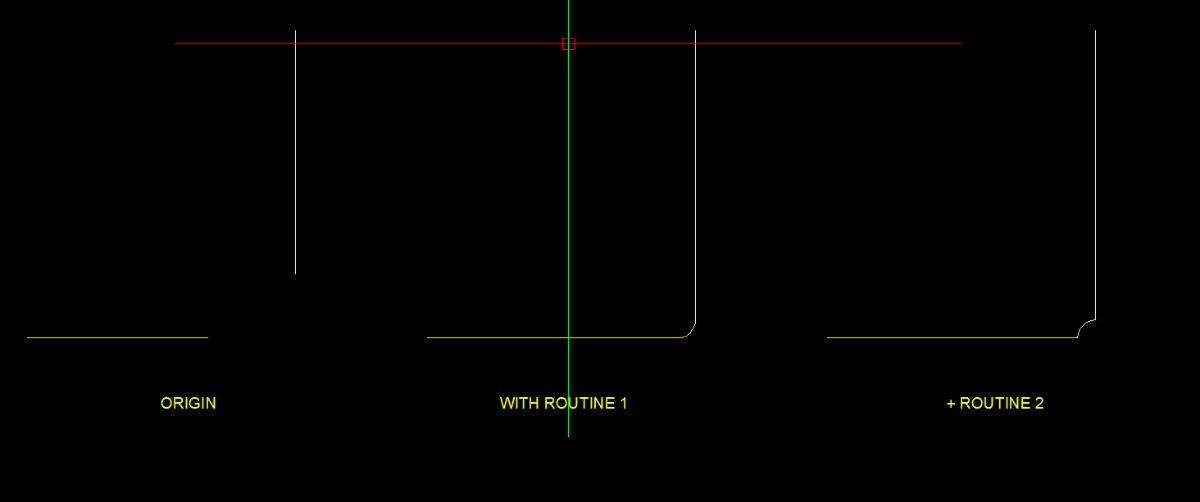

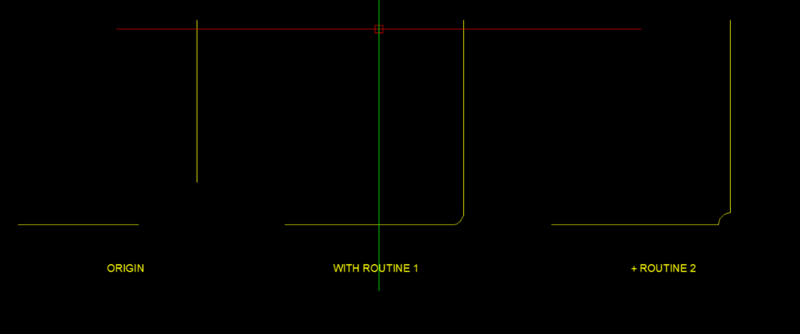

what I need is to touch the arc and make a mirror with axis of symmetry in the initial and final points of that arc

[kirby]

Extremely quick and dirty.  The DXF Reference manual is your friend...



(defun C:GetArc ( /
		k MyEntSel MyEnt MyEntData MyEntType CP Radius StartAng EndAng SP EP
		)
; Select an arc, get geometry and draw radials
; KJM July 2022

(setq k 1)
(while k

	(setq MyEntSel (entsel "\nSelect an ARC..."))
	(if MyEntSel
	  (progn
	  	(setq MyEnt (car MyEntSel))
	  	(setq MyEntData (entget MyEnt))
	  	(setq MyEntType (strcase (cdr (assoc 0 MyEntData))))

	  	(if (equal MyEntType "ARC")
	  	  (progn
	  	  	(setq k nil)	; stop selection loop
	  	  )
	  	  (progn
	  	  	(prompt "\n  Selection was ")(princ MyEntType)(prompt ", try again...")(princ)
	  	  )
	  	) ; close if
	  )
	) ; close if

) ; close while

; Get geometry
(setq CP (cdr (assoc 10 MyEntData)))		; Centre Point
(setq Radius (cdr (assoc 40 MyEntData)))
(setq StartAng (cdr (assoc 50 MyEntData)))	; Radians!
(setq EndAng (cdr (assoc 51 MyEntData)))

; Make start and end points
(setq SP (polar CP StartAng Radius))
(setq EP (polar CP EndAng Radius))

; Report
(prompt "\n  Centre = ")(princ CP)(prompt "  Radius = ")(princ Radius)
(prompt "  Start Point = ")(princ SP)(prompt "  End Point = ")(princ EP)
(princ)

; Draw something
(command ".POINT" SP)
(command ".POINT" CP)
(command ".POINT" EP)

(command ".LINE" SP CP EP "")
(princ)
)



[ronjonp]

There are also the curve-functions which you can feed an ename to:

VLAX-CURVE-GETSTARTPOINT

VLAX-CURVE-GETENDPOINT

(if (setq e (car (entsel)))
  (progn (setq sp (vlax-curve-getstartpoint e)) (setq ep (vlax-curve-getendpoint e)))
)



Edited July 20, 2022 by ronjonp

[Lee Mac]

Here's another, from my library:

;; Arc Endpoints  -  Lee Mac
;; Returns the endpoints of an Arc expressed in WCS

(defun LM:ArcEndpoints ( ent / cen nrm rad )
    (setq ent  (entget ent)
          nrm  (cdr (assoc 210 ent))
          cen  (cdr (assoc 010 ent))
          rad  (cdr (assoc 040 ent))
    )
    (mapcar
        (function
            (lambda ( ang )
                (trans (mapcar '+ cen (list (* rad (cos ang)) (* rad (sin ang)) 0.0)) nrm 0)
            )
        )
        (list (cdr (assoc 50 ent)) (cdr (assoc 51 ent)))
    )
)



[leonucadomi]

 now I have 2 routines that do it but separated and I don't know how to join them







1.lsp 2.lsp test.dwg
