INVERTED FILLET HELP..

leonucadomi

By leonucadomi
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

leonucadomi Rising Star

leonucadomi

Posted
Posted

IS THERE ANY WAY TO MAKE AN INVERTED FILLET?

ASK THE RADIO

SELECT BOTH LINES



AND WHAT IS DRAWN



I APPRECIATE YOUR COMMENTS



THANKS








marko_ribar Veteran

marko_ribar

Posted
Posted (edited)
(defun c:inv_fillet ( / *error* ftoa cmd rad r p pp pl ss i e el ex par flag k )

  (vl-load-com)

  (defun *error* ( m )
    (if command-s
      (command-s "_.UNDO" "_E")
      (vl-cmdf "_.UNDO" "_E")
    )
    (if cmd
      (setvar 'cmdecho cmd)
    )
    (if m
      (prompt m)
    )
    (princ)
  )

  (defun ftoa ( n / m a s b )
    (if (numberp n)
      (progn
        (setq m (fix ((if (< n 0) - +) n 1e-8)))
        (setq a (abs (- n m)))
        (setq m (itoa m))
        (setq s "")
        (while (and (not (equal a 0.0 1e-6)) (setq b (fix (* a 10.0))))
          (setq s (strcat s (itoa b)))
          (setq a (- (* a 10.0) b))
        )
        (if (= (type n) 'int)
          m
          (if (= s "")
            m
            (if (and (= m "0") (< n 0))
              (strcat "-" m "." s)
              (strcat m "." s)
            )
          )
        )
      )
    )
  )

  (setq cmd (getvar 'cmdecho))
  (setvar 'cmdecho 1)
  (if (= 8 (logand 8 (getvar 'undoctl)))
    (vl-cmdf "_.UNDO" "_E")
  )
  (vl-cmdf "_.UNDO" "_G")
  (setq rad (getvar 'filletrad))
  (initget 6)
  (setq r (getdist (strcat "\nPick or specify radius of fillet <" (ftoa rad) "> : ")))
  (if (not r)
    (setq r rad)
  )
  (setvar 'filletrad r)
  (prompt "\nENTER FOR PICK CURVES - 2 SEGMENTS, ELSE SELECT POLYLINES...")
  (if
    (if (ssget "_A" '((0 . "*POLYLINE")))
      (not (setq ss (ssget "_:L" '((0 . "*POLYLINE")))))
      t
    )
    (progn
      (setq p (getvar 'lastpoint) el (entlast))
      (vl-cmdf "_.FILLET")
      (while (< 0 (getvar 'cmdactive))
        (vl-cmdf "\\")
        (if (not (equal p (setq pp (getvar 'lastpoint)) 1e-6))
          (setq pl (cons pp pl))
        )
      )
      (if (not (eq el (entlast)))
        (if (= (cdr (assoc 0 (setq ex (entget (entlast))))) "ARC")
          (entupd (cdr (assoc -1 (entmod (mapcar (function (lambda ( x ) (cond ( (= (car x) 50) (cons 50 (cdr (assoc 51 ex))) ) ( (= (car x) 51) (cons 51 (cdr (assoc 50 ex))) ) ( t x )))) ex)))))
        )
        (if (wcmatch (cdr (assoc 0 (setq ex (entget (car (nentselp (osnap (car pl) "_nea"))))))) "*POLYLINE,VERTEX")
          (progn
            (if (wcmatch (cdr (assoc 0 ex)) "POLYLINE,VERTEX")
              (cond
                ( (= (cdr (assoc 0 ex)) "VERTEX")
                  (setq ex (entget (cdr (assoc 330 ex))))
                  (vl-cmdf "_.CONVERTPOLY" "_L" (cdr (assoc -1 ex)) "")
                  (setq ex (entget (cdr (assoc -1 ex))))
                  (setq flag t)
                )
                ( (= (cdr (assoc 0 ex)) "POLYLINE")
                  (vl-cmdf "_.CONVERTPOLY" "_L" (cdr (assoc -1 ex)) "")
                  (setq ex (entget (cdr (assoc -1 ex))))
                  (setq flag t)
                )
              )
            )
            (if (= (cdr (assoc 0 ex)) "LWPOLYLINE")
              (if (> (abs (fix (- (vlax-curve-getparamatpoint (cdr (assoc -1 ex)) (vlax-curve-getclosestpointto (cdr (assoc -1 ex)) (car pl))) (vlax-curve-getparamatpoint (cdr (assoc -1 ex)) (vlax-curve-getclosestpointto (cdr (assoc -1 ex)) (cadr pl)))))) 1.0)
                (if (= (cdr (assoc 42 ex)) 0.0)
                  (entupd (cdr (assoc -1 (entmod (subst (cons 42 (- (/ 1.0 (cdr (assoc 42 (reverse ex)))))) (assoc 42 (reverse ex)) ex)))))
                  (entupd (cdr (assoc -1 (entmod (subst (cons 42 (- (/ 1.0 (cdr (assoc 42 ex))))) (assoc 42 ex) ex)))))
                )
                (progn
                  (setq par (/ (+ (vlax-curve-getparamatpoint (cdr (assoc -1 ex)) (vlax-curve-getclosestpointto (cdr (assoc -1 ex)) (car pl))) (vlax-curve-getparamatpoint (cdr (assoc -1 ex)) (vlax-curve-getclosestpointto (cdr (assoc -1 ex)) (cadr pl)))) 2.0))
                  (entupd (cdr (assoc -1 (entmod (mapcar (function (lambda ( x ) (if (= (car x) 42) (progn (setq k (if (not k) 0 (1+ k))) (if (= k (fix par)) (if (/= (cdr x) 0.0) (cons 42 (- (/ 1.0 (cdr x)))) (cons 42 0.0)) x)) x))) ex)))))
                )
              )
            )
            (if flag
              (vl-cmdf "_.CONVERTPOLY" "_H" (cdr (assoc -1 ex)) "")
            )
          )
        )
      )
    )
    (if ss
      (repeat (setq i (sslength ss))
        (setq e (ssname ss (setq i (1- i))))
        (vl-cmdf "_.FILLET" "_P" e)
        (while (< 0 (getvar 'cmdactive))
          (vl-cmdf "")
        )
        (setq ex (entget e))
        (if (wcmatch (cdr (assoc 0 ex)) "POLYLINE,VERTEX")
          (cond
            ( (= (cdr (assoc 0 ex)) "VERTEX")
              (setq ex (entget (cdr (assoc 330 ex))))
              (vl-cmdf "_.CONVERTPOLY" "_L" (cdr (assoc -1 ex)) "")
              (setq ex (entget (cdr (assoc -1 ex))))
              (setq flag t)
            )
            ( (= (cdr (assoc 0 ex)) "POLYLINE")
              (vl-cmdf "_.CONVERTPOLY" "_L" (cdr (assoc -1 ex)) "")
              (setq ex (entget (cdr (assoc -1 ex))))
              (setq flag t)
            )
          )
        )
        (if (= (cdr (assoc 0 ex)) "LWPOLYLINE")
          (entupd (cdr (assoc -1 (entmod (mapcar (function (lambda ( x ) (if (and (= (car x) 42) (/= (cdr x) 0.0)) (cons 42 (- (/ 1.0 (cdr x)))) x))) ex)))))
        )
        (if flag
          (vl-cmdf "_.CONVERTPOLY" "_H" (cdr (assoc -1 ex)) "")
        )
        (setq flag nil)
      )
    )
  )
  (*error* nil)
)



Edited by marko_ribar
  • Like 1
BIGAL Grand Master

BIGAL

Posted
Posted (edited)

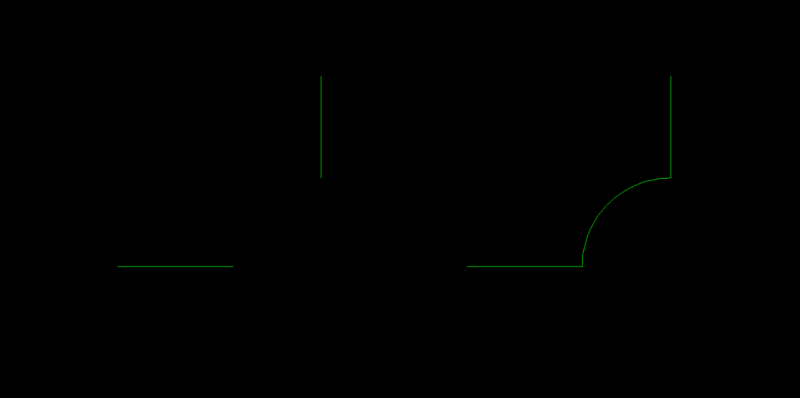

Maybe draw circle at int of 2 lines then trim circle and lines, do TRIM then Window selection over the circle and lines, Enter, select 2 lines inside circle, then diagonal opposite corner to circle, ie remove outside. All done. No code needed. Yes could be coded.







Edited by BIGAL
leonucadomi Rising Star

leonucadomi

Posted
  • Author
Posted

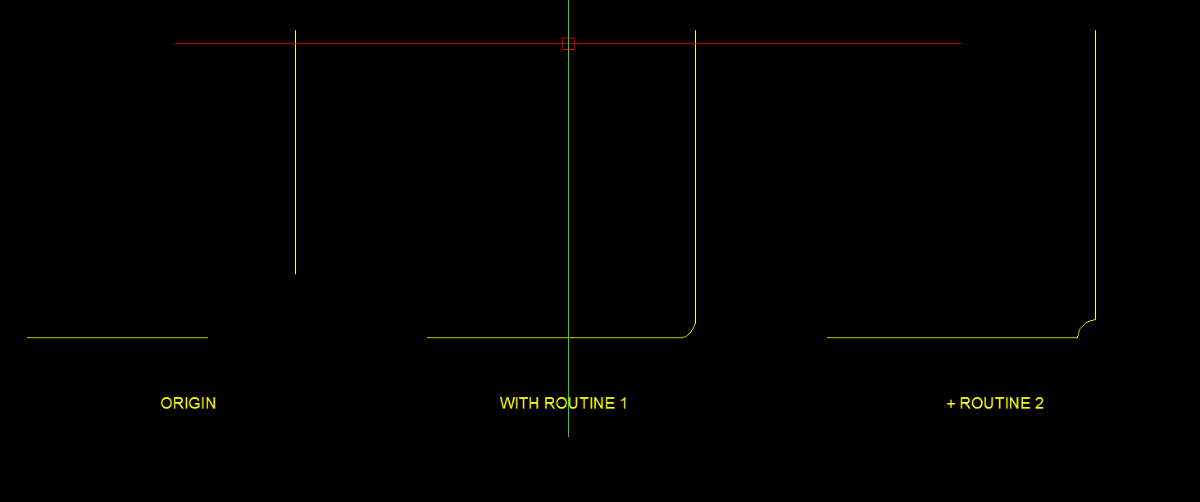

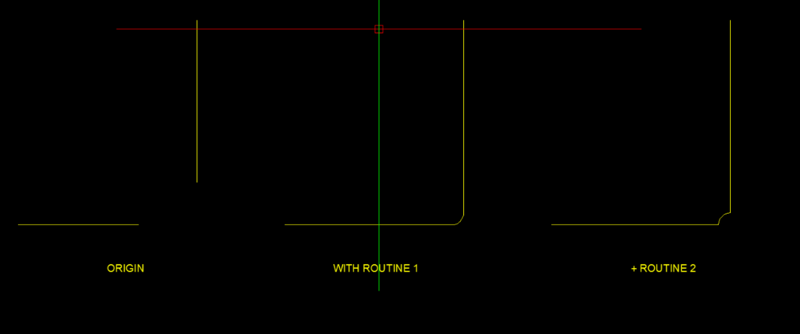

I have the routines that do it but separated and I don't know how to join them  :(
