Offset & Stretch

[Yirmeyahu]

I am having trouble offsetteing a pline 6" and stretching the end points 6" after the pline has been exploded.  Here is what I have so far.







(defun C:DRW (/ ss n m sss)
 (command "._undo" "_begin")

   (setq c_doc (vla-get-activedocument (vlax-get-acad-object))
        c_spc (vlax-get-property c_doc (if (= 1 (getvar 'cvport)) 'paperspace 'modelspace))
        sv_lst (list 'osmode 'cmdecho)
        sv_vals (mapcar 'getvar sv_lst)
        blk "DRW"
    )
  (command "-layer" "m" "tempPB" "Color" "cyan" "" "Plot" "Plot" "" "Ltype" "continuous" "" "")
  (command "-layer" "thaw" "Anchor Bolt" "m" "Anchor Bolt" "Color" "blue" "" "Plot" "Plot" "" "Ltype" "continuous" "" "")

  (setq maxSpcng (getdist "\nPick or enter spacing or <6'>: "))
    (if (= maxSpcng nil)(setq maxSpcng 72))

  (if (setq ss (ssget "_:L" '((0 . "*POLYLINE") (8 . "Anchor Bolt")) ))

    (repeat (setq n (sslength ss)); repeat each edge

      (command "_.COPY" (ssname ss (setq n (1- n))) "" "0,0" "0,0")
      (command "_.chprop" "L" "" "LA" "tempPB" "")
      (command "_.explode" "L")

;;-+-----repeat each line of the edge     ;;;line segment iteration------------------------------------------------------------------------------------
      (repeat (setq m (sslength (setq sss (ssget "_P"))))

            (setq ent (ssname sss (setq m (1- m)))
                  lin_dst  (vlax-curve-getdistatparam ent (vlax-curve-getendparam ent))
                  NumSpcs (1+ (fix(/ lin_dst maxSpcng)))
                  anchor_dist (/ lin_dst numspcs)
                  iX 1
            );end_setq

                (if (= 1 NumSpcs)
                  (setq anchor_pt (vlax-curve-getpointatdist ent (* anchor_dist iX));;insertion - based on distance
                        anchor_obj (vlax-invoke c_spc 'insertblock anchor_pt blk 1 1 1 0);;inserting the block
                  )
                  (repeat NumSpcs
                    (setq anchor_pt (vlax-curve-getpointatdist ent (* anchor_dist iX));;insertion - based on distance
                          anchor_obj (vlax-invoke c_spc 'insertblock anchor_pt blk 1 1 1 0);;inserting the block
                          ix (+ iX 1)
                    )
                  )
                );;END IF

        (command "erase" ent "")
      )
    ); repeat each edge ; repeat each line in exploded selection set--------------------------------------------------------------------------------
  ); if

(command "-purge" "la" "tempPB" "n")
(command "._undo" "_end")
(princ)
); defun

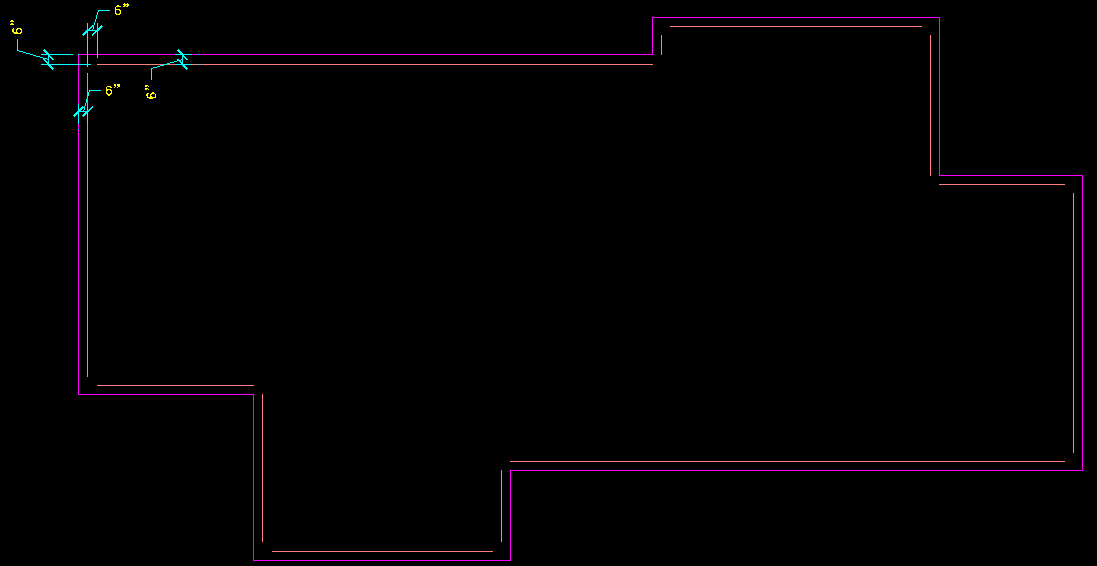

This is what I'm trying to accomplish.



DRW.dwg

[BIGAL]

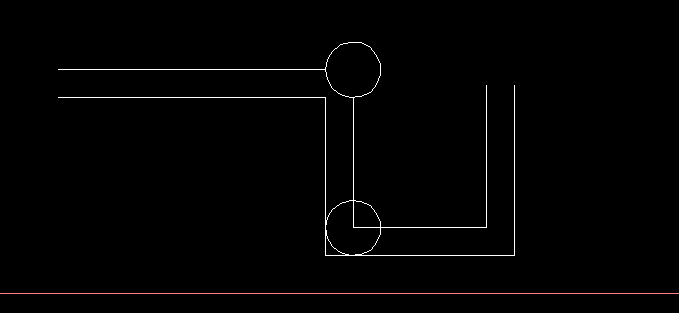

What may be simpler is offset pline and use a circle on each corner and trim. The circle rad = offset. Make circle then trim entlast and use vertice point. Erase circle.







[Yirmeyahu]

I thought there might be a simpler way to just stretch the end points instead of inserting circles or squares and then trimming.  Inserting might be the best way though.

[BIGAL]

Try this has offset prefixed easy change to a user value.



; trim using circle at corners
; By AlanH Juen 2022

(defun c:trimc ( / rad of pt co-ord)
(setq rad 0.2)

(setq plent (entsel "\nPick pline "))

(vla-offset (vlax-ename->vla-object (car plent)) rad)
(setq of (entlast))
(if of (setq co-ord (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) (entget of)))))

(foreach pt co-ord
(command "circle" pt rad)
(setq c (entlast))
(command "trim" c "" pt "")
(command "erase" c "")
)

(princ)
)
