Formed Part (How to model?)

mbuller

By mbuller
in SolidWorks

 Share

Recommended Posts

mbuller Newbie

mbuller

Posted
Posted (edited)

Refer to Formed Part.JPG
I need guidance making the green part. I don't know how to make the feature circled in red.

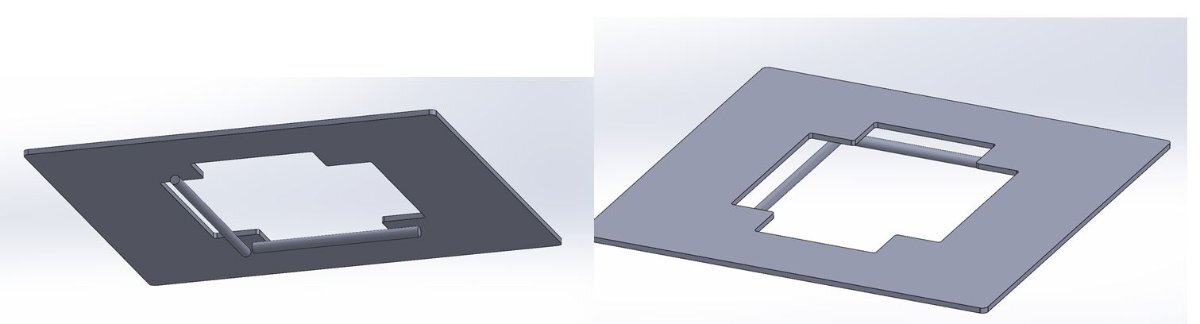

Refer to Pic.JPG
The plate will be pressed against rods. Once pressed, the part will form around the rod.

Formed Part.JPG
