Auto Rotate Block View Frame to match Viewport

[rcb007]

The below is a part of a routine which allows to copy the current layout tab a multiple of times, then it would go through each layout and activate the viewport, turn on a layer number,  to zoom extents and set the scale, then go to the next layout tab and do the same.



I am trying to figure how to auto rotate the viewport to match the block view frame, then go onto the next.



  (foreach name	(layoutlist)
    (setvar 'ctab name)
    (setq n (cdr (assoc -1 (dictsearch (namedobjdict) "acad_layout"))))
    (command "-layer"
	     "Freeze"
	     "*Match*"
	     "Thaw"
	     (strcat "*Area" (itoa (cdr (assoc 71 (dictsearch n name)))))
	     ""
    )
    (command "_mspace")
    (command "zoom" "extents")
    (command "ZOOM" "Scale" "1/10xp")
    (command "_.cannoscale" "1\" = 10'")
    (command "_pspace")
  )

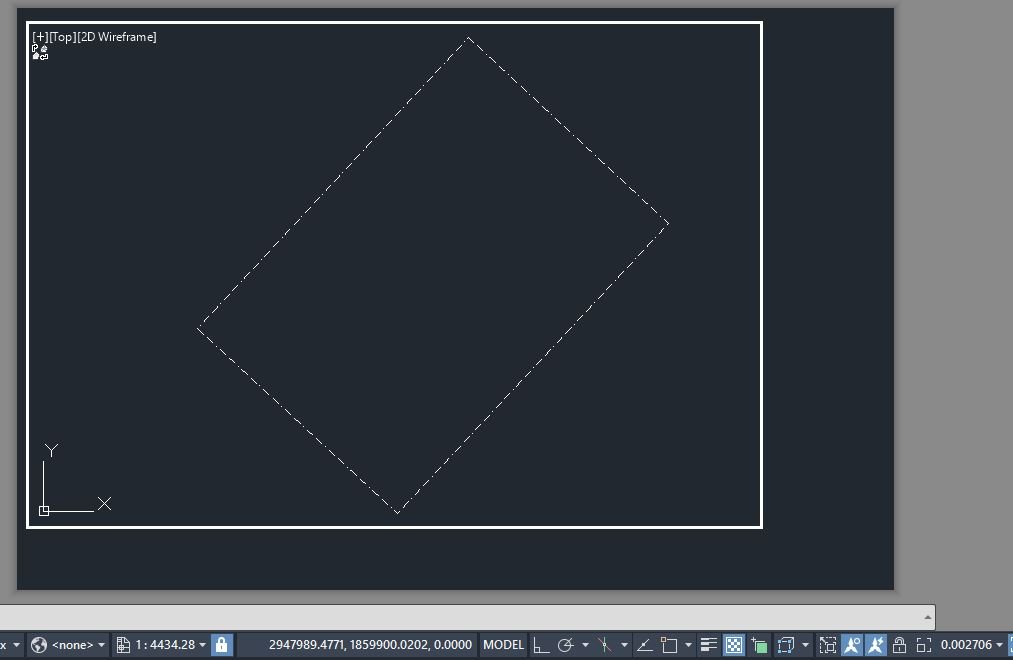

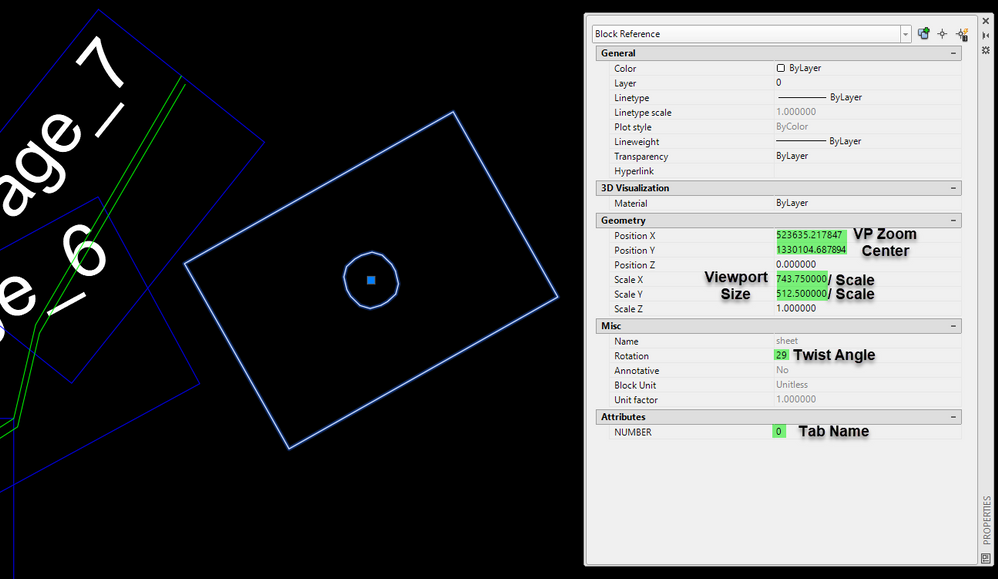

I stumbled upon this post, But was not sure how to get the rotation piece to work.



(defun c:foo (/ ad ll n p pv s tab)
;;https://forums.autodesk.com/t5/visual-lisp-autolisp-and-general/how-to-create-automatic-layouts/m-p/8155017#M371763
  (cond
    ((setq s (ssget '((0 . "text") (8 . "CHR_FIELD_MAP_TEXT") (410 . "Model"))))
     (setq s (vl-sort (vl-remove-if 'listp (mapcar 'cadr (ssnamex s)))
		      '(lambda (a b) (< (cdr (assoc 1 (entget a))) (cdr (assoc 1 (entget b)))))
	     )
     )
     (setq ad (vla-get-activedocument (vlax-get-acad-object)))
     (foreach e	s
       (cond
	 ((vl-position (setq n (strcase (cdr (assoc 1 (entget e))))) (mapcar 'strcase (layoutlist)))
	  (print (strcat "Layout " n " already exists..."))
	 )
	 ((setq tab (vla-add (vla-get-layouts ad) n))
	  (setvar 'ctab n)
	  ;; Viewport hard coded based on example drawing
	  (setq	pv (vlax-invoke
		     (vla-get-paperspace ad)
		     'addpviewport
		     '(8.0694 5.03978 0.0)
		     14.875
		     10.25
		   )
	  )
	  (vlax-put pv 'viewporton -1)
	  (command "_.mspace")
	  (vlax-invoke (vlax-get-acad-object) 'zoomcenter (cdr (assoc 11 (entget e))) 50)
	  (vla-put-customscale pv (/ 1. 50))
	  (command "_.pspace")
	 )
       )
     )
    )
  )
  (princ)
)
(vl-load-com)



https://forums.autodesk.com/t5/visual-lisp-autolisp-and-general/how-to-create-automatic-layouts/m-p/8158285#M371817



I hope this make some sense.



ejemplo paginacion.dwg

Edited September 21, 2021 by rcb007

[BIGAL]

Your using (vla-put-customscale have a look at also  (vla-put-twistangle
