Polyline lengths

[BIGAL]

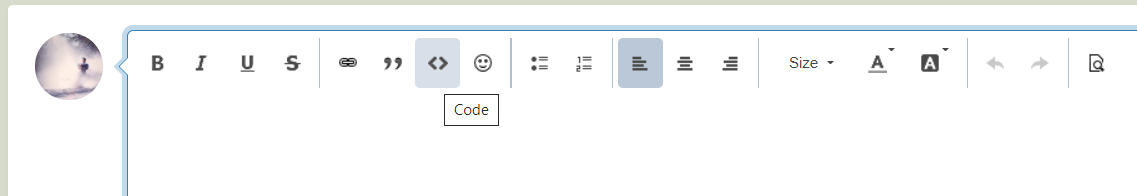

Just a suggestion when posting code use the Code icon it will put it in a box for you, welcome aboard.



[tanis17337]

On 6/3/2021 at 4:38 PM, minejash said:

Try this one, It gives all selected polyline dimensions.. You can select similar the Pline and delete it later.

DIMENSION POLY.LSP 2.96 kB · 24 downloads

AFTER LOADED THIS LISP THEN WHAT COMMAND?



[Steven P]

pdim











(if you look through the files you will find somethng like (defun c:pdim ( / ) at the start of each routine. If there is a 'c:' whatever follows (here pdim) is the command to use).

Edited November 30, 2022 by Steven P

[BIGAL]

I have not done it for a while but should get back in the habit of when loading code add a little message at the end about how to run. I find "alert" is good but keep it outside the defun so it only displays once.



(defun c:mycode ( / a s d f )

..........
)
(alert "to run just type MYCODE")

or
(defun c:mycode ( / a s d f )

..........
)
(c:mycode)



[Momi]

@Isaac26a is there any way "LP2T" to select multiple objects at once and put the length in middle of square/circle ?





;;;;;;;;;;;; Program lp2t selects a pline and puts its length in to a new text.
;;;;;;;;;;;;
;;;;;;;;;;;; by Isaac A. 20210603
;;;;;;;;;;;; https://www.cadtutor.net/forum/topic/73155-polyline-lengths/?_fromLogin=1

;********** Program to obtain the length of a pline and put it into a text **********
(vl-load-com)
(defun C:lp2t (/ long poli)
   (setvar "cmdecho" 0)
   (vl-cmdf "_.undo" "_begin")
   (setq oldosm (getvar "osmode"))

   (setvar "osmode" 0)
   (setq poli (car (entsel "\nSelect the polyline")))
   (setq long 0)
   (vl-cmdf "_.area" "_e" poli)
   (setq long (getvar "perimeter"))
   (setq pt11 (getpoint "Pick a point to insert the text"))
   (vl-cmdf "_.style" "times" "times new roman" "0" "1" "" "" ""
            "_.text" "_s" "times" pt11 "1" "0" (strcat "L=" (rtos long 2 2) "m."))

   (vl-cmdf "_.undo" "_end")
   (setvar "osmode" oldosm)
   (princ "\n")
   (princ)
)                                 ;;; Ends c:lp2t



Edited June 28 by SLW210
Added Code Tags!

[BIGAL]

Using VL makes getting the length and area much easier, you do though need to look at what type of object you have picked.



(defun c:wow ( / ss x len pt)
(vl-cmdf "_.style" "times" "times new roman" "0" "1" "" "" "")
(setq ss (ssget '((0 . "Lwpolyline,Circle"))))
(if (= ss nil)
(alert "No plines or circles selected ")
(repeat (setq x (sslength ss))
(setq obj (vlax-ename->vla-object (ssname ss (setq x (- x 1)))))
(if (= (vlax-get obj 'Objectname) "AcDbPolyline")
  (progn
   (setq len (rtos (vlax-get obj 'Length) 2 3))
   (setq Pt (osnap (vlax-curve-getStartPoint obj) "gcen"))
  )
  (progn
   (setq len (rtos (vlax-get obj 'Circumference) 2 2))
   (setq pt (vlax-get obj 'center))
 )
)
(vl-cmdf "_.text" "_s" "times" pt "1" "0" (strcat "L=" len "m."))
)
)
(princ)
)
(c:wow)



[MDC]

On 6/3/2021 at 1:09 PM, Tharwat said:

Just for fun.

If your current text style with zero height then the program would get the width factor as the text height instead.



(defun c:Test (/ old new len ins sty str get grd)
  ;; Tharwat - 3.Jun.2021	;;
  (setq old (entlast))
  (vl-cmdf "_.Pline")
  (while (< 0 (getvar 'CMDACTIVE))
    (vl-cmdf "\\")
  )
  (and (not (equal old (setq new (entlast))))
       (setq
         len (vlax-curve-getdistatparam new (vlax-curve-getendparam new))
       )
       (entdel new)
       (setq ins (trans (cadr (grread 13 0)) 1 0)
             sty (getvar 'TEXTSTYLE)
             str (entmakex
                   (list
                     '(0 . "TEXT")
                     (cons 10 ins)
                     (cons 11 ins)
                     (cons 40
                           (cdr
                             (assoc
                               (if
                                 (zerop
                                   (cdr
                                     (assoc
                                       40
                                       (setq get (entget (tblobjname "STYLE" sty)))
                                       )
                                     )
                                   )
                                 41
                                 40
                                 )
                               get
                               )
                             )
                           )
                     (cons 1 (rtos len 2 2))
                     (cons 7 sty)
                     )
                   )
             get (entget str)
             )
       (while (= (car (setq grd (grread t 15 0))) 5)
         (entmod (subst (cons 10 (cadr grd)) (assoc 10 get) get))
         )
       )
  (princ)
)





How would you modify this to leave the polyline and not delete it?

TiA

[ronjonp]

Remove this line: (entdel new)
