sorting by block attributes

[Terry.T]

Hi,

I am a beginner and I had a problem about sorting.

I had many block with attributes "SORT_ORDER" and "NUMBER"



what i want to do is :

1. Select all block in a list

(setq lst1 (ssget "x" '((8 . "layer"))))

2. sort list by attributes "SORT_ORDER"

(no idea)

3.apply new number by lst1 form 001 to 100 into attributes (3 digit).

Because we need to change the number many many time but the number must in order.



such as

block format:("SORT_ORDER"== "NUMBER")

(1==001), (2== 002), (3== 003), (4== 004), (5== 005), (6== 006), (7== 007)

we want to del 3

(1== 001), (2==002), (4== 003), (5== 004), (6== 005), (7== 006)

and add back 3 and add 2.1 between b and c

(1== 001), (2== 002, (2.1== 003), (3== 004), (4== 005), (5== 006), (6== 007), (7== 008)



Thanks,

[mhupp]

look into this function https://documentation.help/AutoLISP-Functions/WS1a9193826455f5ff1a32d8d10ebc6b7ccc-687f.htm



Edited May 13, 2021 by mhupp

[hosneyalaa]

  On 5/13/2021 at 6:52 AM, Terry.T said:

Hi,

I am a beginner and I had a problem about sorting.

I had many block with attributes "SORT_ORDER" and "NUMBER"



what i want to do is :

1. Select all block in a list

(setq lst1 (ssget "x" '((8 . "layer"))))

2. sort list by attributes "SORT_ORDER"

(no idea)

3.apply new number by lst1 form 001 to 100 into attributes (3 digit).

Because we need to change the number many many time but the number must in order.



such as

block format:("SORT_ORDER"== "NUMBER")

(1==001), (2== 002), (3== 003), (4== 004), (5== 005), (6== 006), (7== 007)

we want to del 3

(1== 001), (2==002), (4== 003), (5== 004), (6== 005), (7== 006)

and add back 3 and add 2.1 between b and c

(1== 001), (2== 002, (2.1== 003), (3== 004), (4== 005), (5== 006), (6== 007), (7== 008)



Thanks,

Expand

 Attached drawing example

pls

[Terry.T]

TEST-LSP FOR NUMBING2.dwgFetching info...

thanks for the reply.



and here is what i am doing yesterday.



(defun C:nm ( / sel1 sel2 )

	(setq num 0)
	(setq lop 0)

	(setq sel1 (ssget "x" '((8 . "NUMBERING"))))

	(foreach pp1 (ssnamex sel1)
	(setq num (1+ num))
	)

	(foreach pp (ssnamex sel1)
					(setq sel2 (ssname sel1 lop))
					(setq a (entnext sel2))
					(setq b (entnext a))
					(setq c (entget b))
					(setq d (assoc 1 c))
					(setq e (cdr d))
					(setq num (1- num))
					(setq lop (1+ lop))
					(setq a1 (cons e a1))
	)	;foreach
	(vl-sort a1 '<)

);end defun



  On 5/13/2021 at 12:36 PM, hosneyalaa said:

 Attached drawing example

pls

Expand



i am not sure is it a right way to sort the block.



Thanks.



[Terry.T]

  On 5/13/2021 at 12:14 PM, mhupp said:

look into this function https://documentation.help/AutoLISP-Functions/WS1a9193826455f5ff1a32d8d10ebc6b7ccc-687f.htm



Expand



Thank for the reply,



I am trying to use vl-sort, but i can't find the right way to sort it.

i think it is sorting the number only, not the block.



Thanks.

[Terry.T]

TEST-LSP FOR NUMBING2.dwgFetching info...



hi all

i think this file will better than before.



Thank again.

[mhupp]

try this

(defun C:nm (/ ss i blk atts lst a1 P O)
  (vl-load-com)
  (setq ss (ssget '((0 . "INSERT") (8 . "NUMBERING"))))  ;only select blocks on numbering layer
  (repeat (setq i (sslength ss))
    (setq blk (vlax-ename->vla-object (ssname SS (setq i (1- i))))
          atts (vlax-safearray->list (vlax-variant-value (vla-getattributes blk)))
    )
    (foreach x atts
      (if (= (vla-get-tagstring x) "PORT_NUMBER")
        (setq P (vla-get-textstring x))
        (setq O (vla-get-textstring x))
      )
    )
    (setq lst (list P O)) ;create a mini list
    (setq a1 (append a1 (list lst))) ;join all mini lists into big list
  )
  (vl-sort a1 '(lambda (x y) (< (car x) (car y)))) ;sort by first item in the mini list
)

3. I don't know what you mean.



Edited May 14, 2021 by mhupp

[Lee Mac]

Another -

(defun c:pno ( / a c i l n p q s x )
    (if (setq s (ssget "_X" '((0 . "INSERT") (8 . "NUMBERING"))))
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      a (entnext (ssname s i))
                      x (entget a)
                )
                (while (and (= "ATTRIB" (cdr (assoc 0 x))) (not (and p n)))
                    (cond
                        (   (= "PORT_NUMBER" (cdr (assoc 2 x)))
                            (setq p a)
                        )
                        (   (= "SORT_ORDER" (cdr (assoc 2 x)))
                            (setq n (atoi (cdr (assoc 1 x))))
                        )
                    )
                    (setq a (entnext a)
                          x (entget  a)
                    )
                )
                (if (and p n)
                    (setq l (cons p l) p nil
                          q (cons n q) n nil
                    )
                )
            )
            (setq c 1)
            (foreach n (vl-sort-i q '<)
                (entmod (list (cons -1 (nth n l)) (cons 1 (padz (itoa c) 3))))
                (setq c (1+ c))
            )
        )
    )
    (princ)
)

(defun padz ( x n )
    (if (< (strlen x) n) (padz (strcat "0" x) n) x)
)

(princ)



[Terry.T]

  On 5/16/2021 at 1:24 PM, Lee Mac said:

Another -

(defun c:pno ( / a c i l n p q s x )
    (if (setq s (ssget "_X" '((0 . "INSERT") (8 . "NUMBERING"))))
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      a (entnext (ssname s i))
                      x (entget a)
                )
                (while (and (= "ATTRIB" (cdr (assoc 0 x))) (not (and p n)))
                    (cond
                        (   (= "PORT_NUMBER" (cdr (assoc 2 x)))
                            (setq p a)
                        )
                        (   (= "SORT_ORDER" (cdr (assoc 2 x)))
                            (setq n (atoi (cdr (assoc 1 x))))
                        )
                    )
                    (setq a (entnext a)
                          x (entget  a)
                    )
                )
                (if (and p n)
                    (setq l (cons p l) p nil
                          q (cons n q) n nil
                    )
                )
            )
            (setq c 1)
            (foreach n (vl-sort-i q '<)
                (entmod (list (cons -1 (nth n l)) (cons 1 (padz (itoa c) 3))))
                (setq c (1+ c))
            )
        )
    )
    (princ)
)

(defun padz ( x n )
    (if (< (strlen x) n) (padz (strcat "0" x) n) x)
)

(princ)



Expand



Amazing , that is what exactly i what. thank a lot.



[Lee Mac]

You're welcome

[Terry.T]

  On 5/16/2021 at 1:24 PM, Lee Mac said:

Another -

(defun c:pno ( / a c i l n p q s x )

;-------------------NEW ADD-----------------------------------
	(princ "\nPlease pick a block to numbering: ")
			(setq a1 (car (entsel)))
			(setq d1 (entget a1))
			(setq e (assoc 8 d1))
;-------------------NEW ADD-----------------------------------


;   (if (setq s (ssget "_X" '((0 . "INSERT") (8 . "NUMBERING"))))
;	(if (setq s (ssget "_X" '((0 . "INSERT") , e)))
;	(if (setq s (ssget "_X" '((0 . "INSERT") (e) )))
	(if (setq s (ssget "_X" '((0 . "INSERT") e)))
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      a (entnext (ssname s i))
                      x (entget a)
                )
                (while (and (= "ATTRIB" (cdr (assoc 0 x))) (not (and p n)))
                    (cond
                        (   (= "PORT_NUMBER" (cdr (assoc 2 x)))
                            (setq p a)
                        )
                        (   (= "SORT_ORDER" (cdr (assoc 2 x)))
                            (setq n (atoi (cdr (assoc 1 x))))
                        )
                    )
                    (setq a (entnext a)
                          x (entget  a)
                    )
                )
                (if (and p n)
                    (setq l (cons p l) p nil
                          q (cons n q) n nil
                    )
                )
            )
            (setq c 1)
            (foreach n (vl-sort-i q '<)
                (entmod (list (cons -1 (nth n l)) (cons 1 (padz (itoa c) 3))))
                (setq c (1+ c))
            )
        )
    )
    (princ)
)

(defun padz ( x n )
    (if (< (strlen x) n) (padz (strcat "0" x) n) x)
)

(princ)



Expand



May i learn more about "ssget"

I am trying to let the computer know which layer i need and i set a value "E" to keep it,

is it possible, if i change the coding like this? (not working)

[Lee Mac]

The issue is that the ssget filter list is quoted as a literal list, and therefore the symbol 'e' will not be evaluated as a variable to yield the value it has been assigned, but will instead remain as a symbol. To better understand this behaviour, and how to alter the expression to evaluate the variable, you may wish to read my tutorial on The Apostrophe and the Quote Function.

[Terry.T]

  On 5/24/2021 at 8:05 AM, Lee Mac said:

The issue is that the ssget filter list is quoted as a literal list, and therefore the symbol 'e' will not be evaluated as a variable to yield the value it has been assigned, but will instead remain as a symbol. To better understand this behaviour, and how to alter the expression to evaluate the variable, you may wish to read my tutorial on The Apostrophe and the Quote Function.

Expand

Thanks a lot about this



i have update the app and it is works

(defun c:pno ( / a c i l n p q s x )

;-------------------NEW ADD-----------------------------------
	(princ "\nPlease pick a block to numbering: ")
			(setq a1 (car (entsel)))
			(setq d1 (entget a1))
;-------------------NEW ADD-----------------------------------

;-------------------change-------------------------------------
;   (if (setq s (ssget "_X" '((0 . "INSERT") (8 . "NUMBERING"))))
		(if (setq s (ssget "_X" (list '(0 . "INSERT") (assoc 8 d1))))
;-------------------change-------------------------------------
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      a (entnext (ssname s i))
                      x (entget a)
                )
                (while (and (= "ATTRIB" (cdr (assoc 0 x))) (not (and p n)))
                    (cond
                        (   (= "PORT_NUMBER" (cdr (assoc 2 x)))
                            (setq p a)
                        )
                        (   (= "SORT_ORDER" (cdr (assoc 2 x)))
                            (setq n (atoi (cdr (assoc 1 x))))
                        )
                    )
                    (setq a (entnext a)
                          x (entget  a)
                    )
                )
                (if (and p n)
                    (setq l (cons p l) p nil
                          q (cons n q) n nil
                    )
                )
            )
            (setq c 1)
            (foreach n (vl-sort-i q '<)
                (entmod (list (cons -1 (nth n l)) (cons 1 (padz (itoa c) 3))))
                (setq c (1+ c))
            )
        )
    )
    (princ)
)

(defun padz ( x n )
    (if (< (strlen x) n) (padz (strcat "0" x) n) x)
)

(princ)



[Lee Mac]

You're welcome - well done

[BIGAL]

When in doubt I use all filters as cons this supports a variable by name and a value like "abc" or 1. Using '(( takes a little getting use to as per info by Lee.



(setq ss (ssget "X" (list (cons 0 "LWPOLYLINE")(cons 8 mylayer) (cons 70 1) )))

(setq ss (ssget "X" (list (cons 0 "LWPOLYLINE")(cons 8 "Design") (cons 70 isClosed) )))



[Rakesh H M]

Hi,

I am a beginner in this, and I have a problem regarding sorting attributes.

For example, I have multiple blocks in a single AutoCAD file, and each block contains 18 attributes. Some blocks are arranged in the format below, while others are not.

I want all the blocks to be sorted in the same format. Could you please let me know how to sort all the blocks to ensure they display the attributes in the format listed below?



Attributes format:

UNIT#

OPTSTYLE

OPTSUFFIX

SELFPRICE

ZZPART

ZZDETAIL

ROOM

FLOOR

BUILDING

PHASE

KEYING

ASSOCIATED

HEIGHT

DEPTH

LENGTH

ARCHNO

LINE

DEALER

Drawing added for your reference



Thank You!

Drawing1.dwgFetching info...

Edited March 31 by Rakesh H M
Drawing added

[Saxlle]

Hi @Rakesh H M,



You can do it on this way (without lisp):

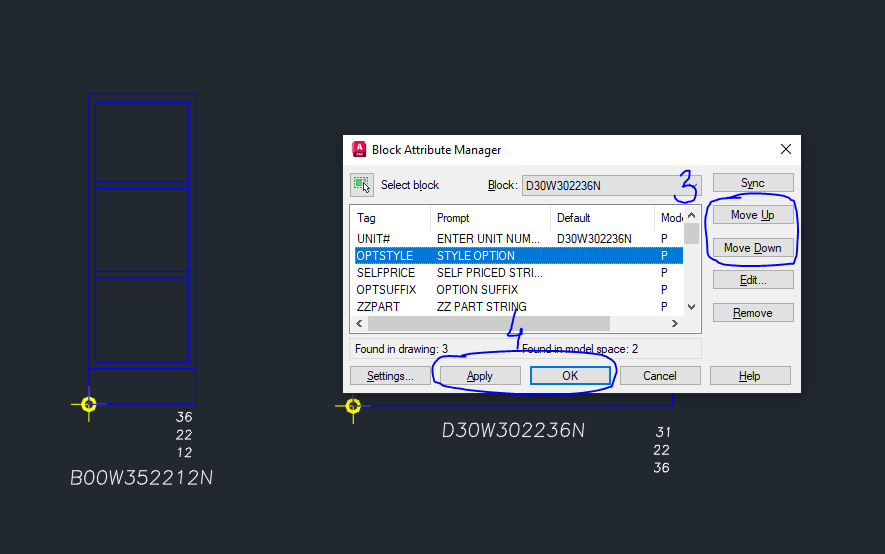

1. Use command "BATTMAN" (picture 1);

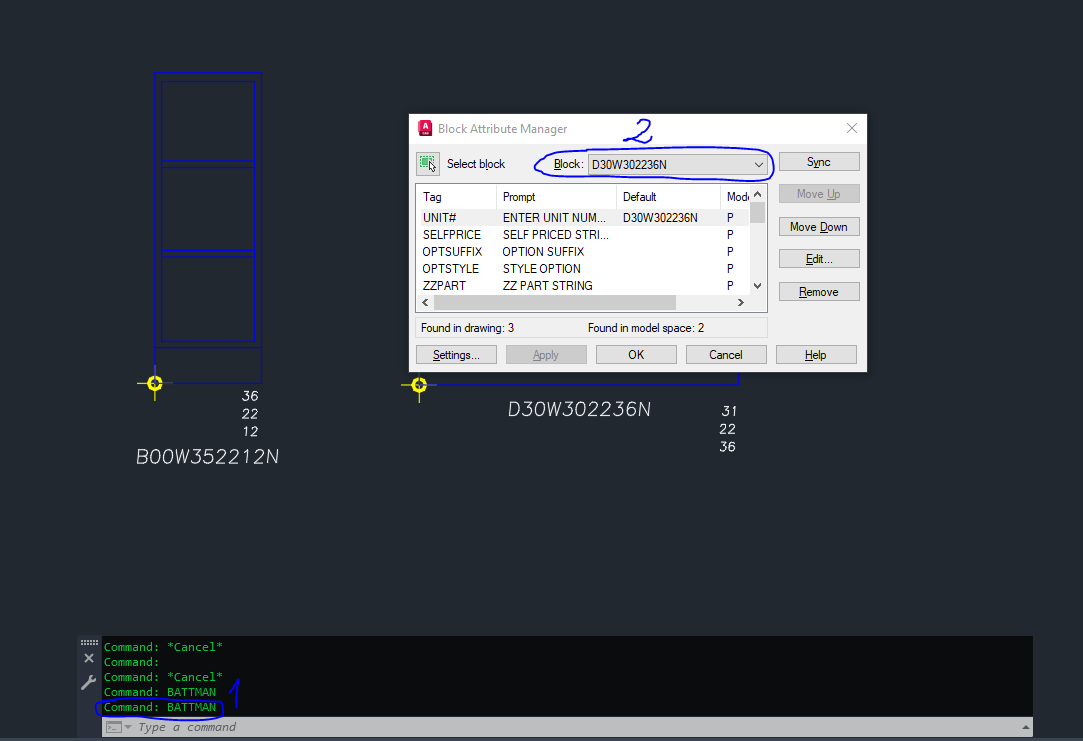

2. Choose from "Block:" the desired name of the block (picture 1);

3. Use buttons "Move Up" and "Move down" to sort the attributes tags in desired order (picture 2);

4. After everything is done, use the "Apply" and then "OK" button to apply to every desired block (picture 2).

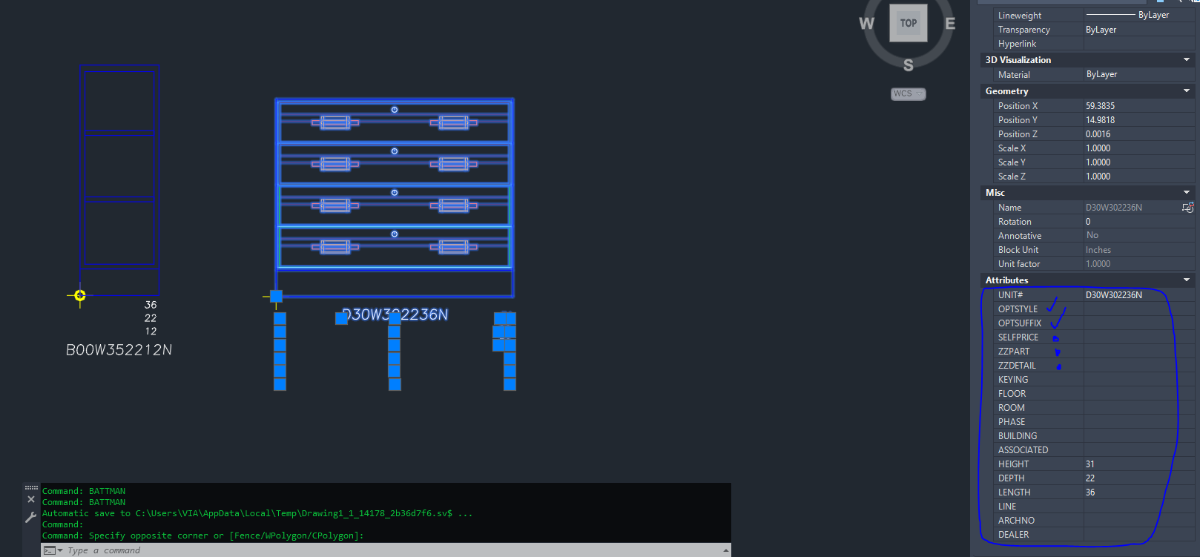

5. Output (picture 3). I didn't sort everything, just a few.



Picture 1.



Picture 2.



Picture 3.



Best regards.

Edited March 31 by Saxlle

[Rakesh H M]

@Saxlle, I know individual update, i am looking for mass block updates. For example i have 1000 numbers of blocks i can't go each and update each blocks.

Is there any option to update all the blocks at a time in these format?

[Saxlle]

Can you upload a drawing with all that blocks on which you want to reorder "TAGS"?

[BIGAL]

@Rakesh H M even if you have a 1000 blocks if they are one block name and you do the BEDIT and Battman then as shown above they  should be updated, after Apply do Sync.
