Contour elevation labelling - need help with changing the routine from PLINE to 3DPOLYLINE

[aridzv]

@Trudy

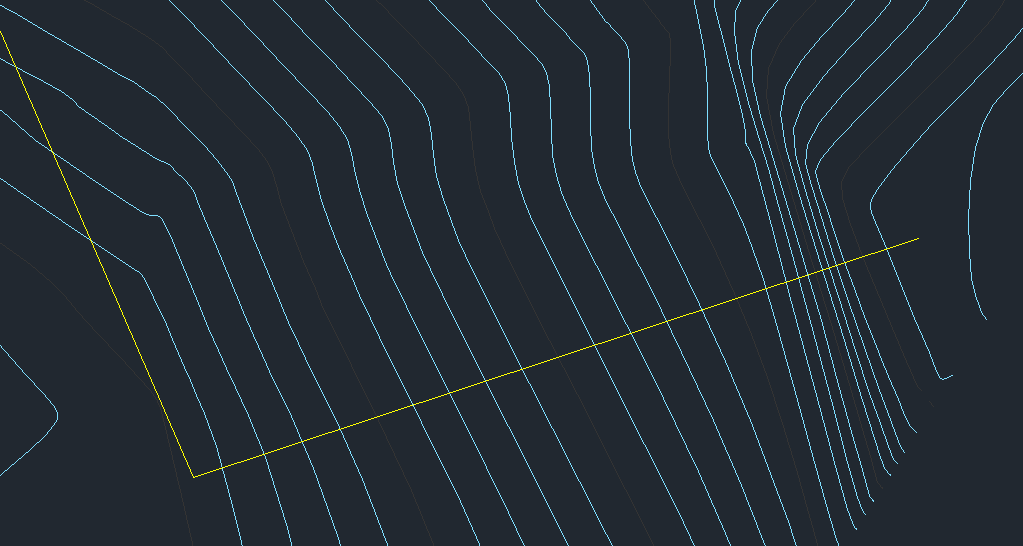

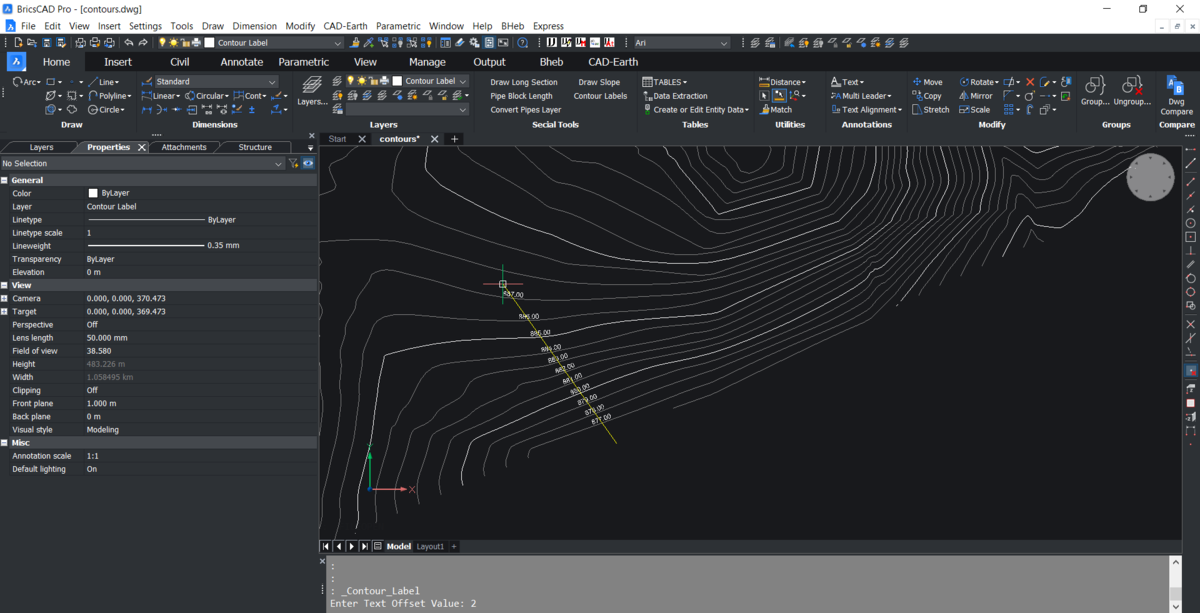

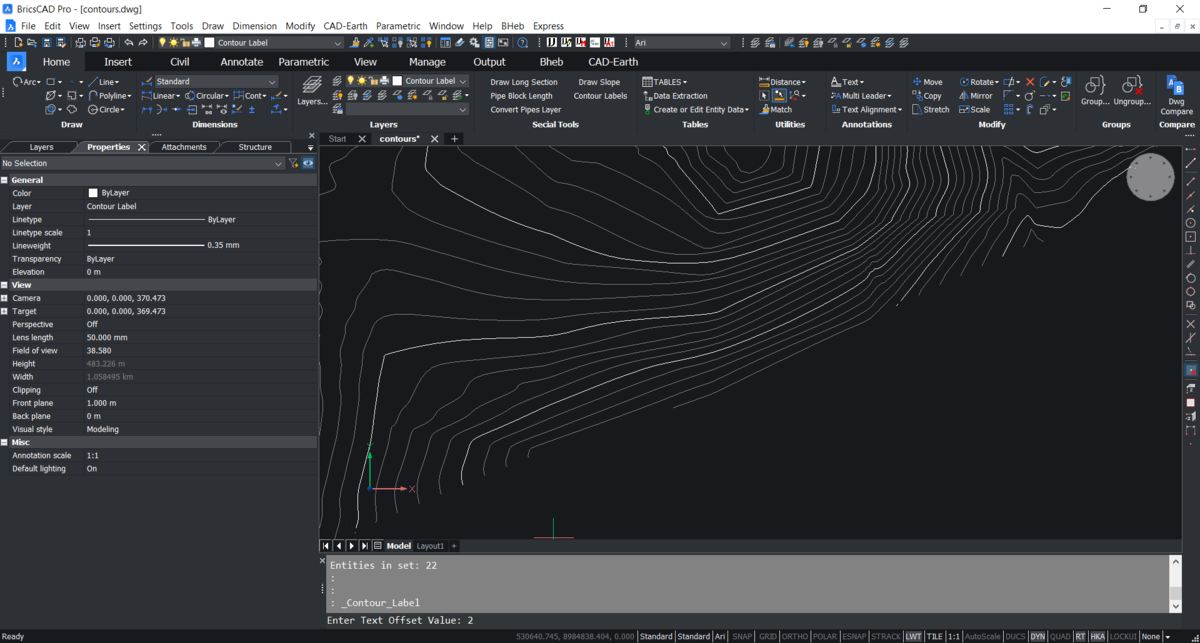

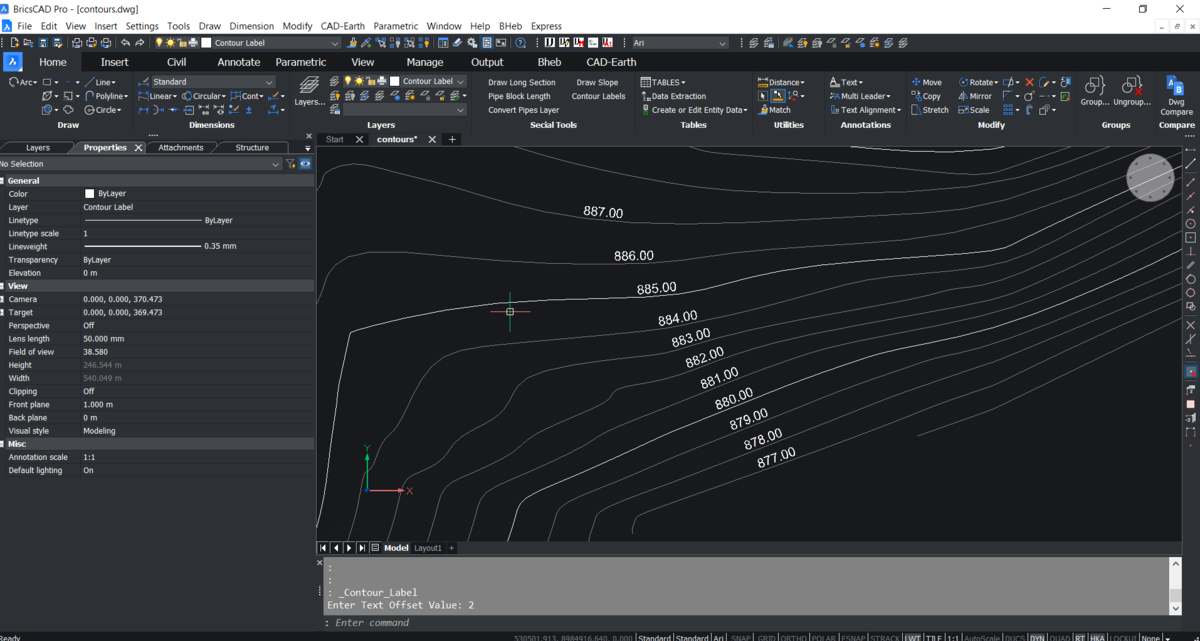

see the attached screen shots.

after launching the command:

1. set the offset dist and press ENTER. (the problem here is that if you press ENTER with out give a value the lisp crash...)

2.with the left click pressed drag the mouse over the contours you want to label.

3. when done let go of the left click and press enter again to exit the lisp,or press and hold the left click to draw more labels in another direction.







Edited April 12, 2021 by aridzv

[Trudy]

I try on civil 2012 and cant do nothing. I will try later again but for now dont work.



[aridzv]

@Trudy

O.K. - I know what is the issue:

1.the contours MUST  be in layer "Contour Major" Or "Contour Minor".

you should create those layers and move the contours to them.

2. the contours MUST be LWPOLYLINE, not 3d poly or 2d poly (not x,y,z - but x,y and ELEVATION)

*About the layers issue - I don't know how to cancel this condition, maybe you will be able to help here to...

Edited April 12, 2021 by aridzv

[BIGAL]

That is a CIV3D function for labelling contours. Drag a line.

[aridzv]

21 hours ago, BIGAL said:

That is a CIV3D function for labelling contours. Drag a line.

@BIGAL

what dose it mean?



[BIGAL]

Contour labelling is built in to CIV3D and you can draw a line and that is where the contour labelling will appear same as you wanted.



The obvious if you use a civil package you get so much more than contours.

Edited April 13, 2021 by BIGAL

[aridzv]

@BIGAL

Yes,when I saw this LSP I said "it's exactly like in c3d"...

I worked for a short time with c3d and I barely scratched the surface of its capabilities,but unfortunately the cost was way over me,

So bricscad Pro (with LSP's,excel & VBA and some QGIS workarounds...) it is.

Edited April 14, 2021 by aridzv

[BIGAL]

Have a look at Civil Site Design works with Bricscad, Home - Civil Site Design and has so much more if you want survey side only then Stringer, Stringer Survey - Land Surveying Software

[Trudy]

Hello, i try some thing these days but dont work properly sorry cant help with this lisp.





[aridzv]

5 hours ago, Trudy said:

Hello, i try some thing these days but dont work properly sorry cant help with this lisp.





@Trudy Hi.

first - thanks for your help so far!!

the lisp works on my machine, if you use C3D so you don't really need it  ....

if you still want to use it so try to show where it is stuck and maybe  it is solvable.

and again - thanks for your help!

Ari.

*Edit:

see the new LSP - I've enabled the offset dist. editing.

Contour_Label.lsp

Edited April 16, 2021 by aridzv

[aridzv]

On 4/15/2021 at 5:22 AM, BIGAL said:

Have a look at Civil Site Design works with Bricscad, Home - Civil Site Design and has so much more if you want survey side only then Stringer, Stringer Survey - Land Surveying Software

Tanks,

I will have a look on them.

[BIGAL]

Any question just PM me .
