andyt Posted November 17, 2020 Posted November 17, 2020 I have inserted a block (shackle) into my drawing put when I go to paper space it is grey. I have tried matching properties changing block, colour etc but no joy can any shed some light on this problem Thanks Quote
SLW210 Posted November 17, 2020 Posted November 17, 2020 Did you check the color per the viewport? Can you post the .dwg file? See THIS. Quote
tombu Posted November 17, 2020 Posted November 17, 2020 If it wasn't caused by viewport overrides open the Page Setup assigned to that layout. Is "Display plot styles" checked? You'll need to check out the referenced plot style table. Quote

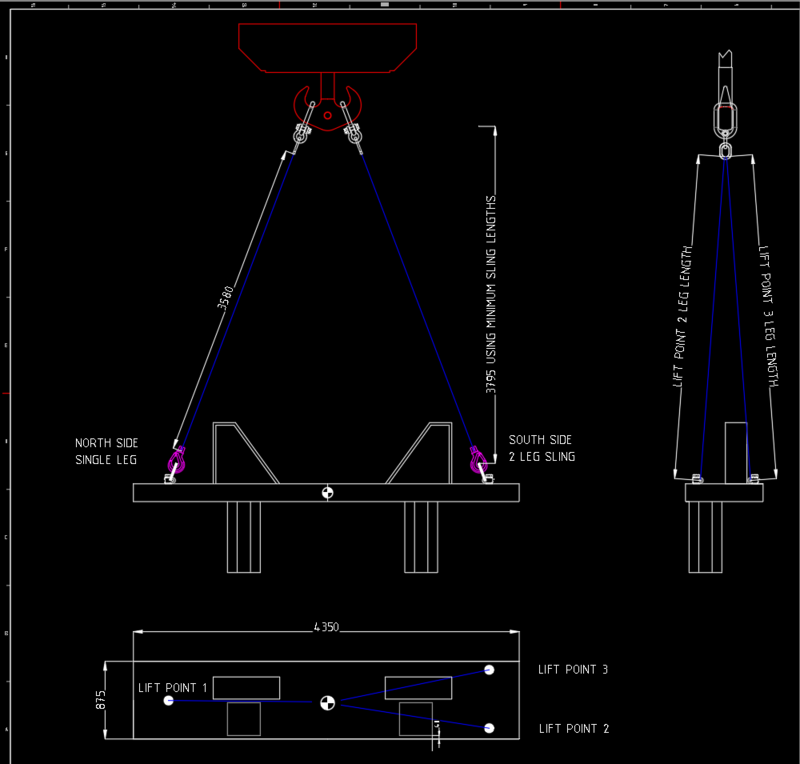

andyt Posted November 20, 2020 Author Posted November 20, 2020 On 11/17/2020 at 3:55 PM, SLW210 said: Did you check the color per the viewport? Can you post the .dwg file? See THIS. If you open in paper space Bracket 1 the shackles are grey Thanks Bracket 1 & 2.dwg Quote
steven-g Posted November 20, 2020 Posted November 20, 2020 Your shackels are set to color by layer, and layer 0 is color 255, where other objects are color 'white' color white is recognized by AutoCAD and will flip to black on a white background any other colors will retain their value Quote
ammobake Posted November 20, 2020 Posted November 20, 2020 another reason i always like to use black background personally only use color 255 for masking and even then in just very specific scenarios. -ChriS Quote
