Help required on making block attributes in readable angles

[amb2301]

Hi Friends,

         Help required on making the font to readable angles,  i have created a block with Annotative, so it always in 0 degree, but now i need it to be in Most readable angle inside the blocks , wherever i insert it in drawing & rotates it.

could someone help me to resolve it.

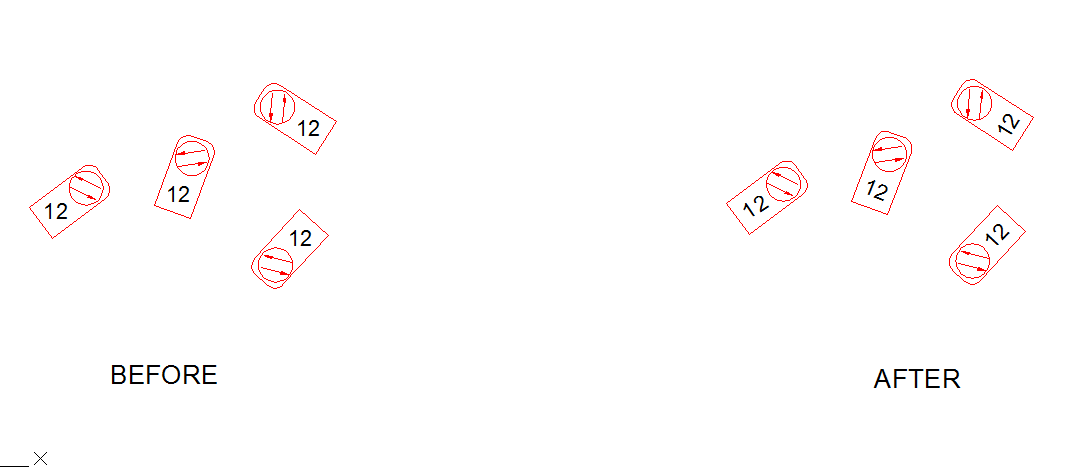

attached screenshot & sample drawing of my requirements.

sample.dwg

[Dana W]

I found this in AutoDesk HELP (F-1) by searching "USE A FIELD TO SHOW ANGLE IN A BLOCK".  If you get into trouble, steven-g may come in to help.  He is a member here.



Good luck



Dynamic Block - Display Rotation Bearing

2019-09-16

Accepted Solutions In Forums

Byluke_anthony906

View Original

Dynamic Block Query - is there a way to create a dynamic degree bearing number that changes when rotating a dynamic block?

I know how to use the rotate parameters within a dynamic block but would love it to display the angle when using the block and of course for the number to change as the rotation angle does.

luke_anthony906

2019-09-16

It is easiest inside the block editor. Add an attribute to the block and when you get to the 'attribute default'.

In the field dialogue select block placeholder and then select the rotation parameter,

click OK and exit the block editor. Run attsync choosing the block, and then change the rotation and run regen.



steven-g

Remember, you must run regen (or SAVE) to get the field to update.





Edited November 9, 2020 by Dana W

[amb2301]

Hi Dana W,

                Thanks for looking on this Thread,

Actually i want the Text inside that Block to be Rotated as per the block angle, i can able to that by applying rotational action inside Dynamic block,

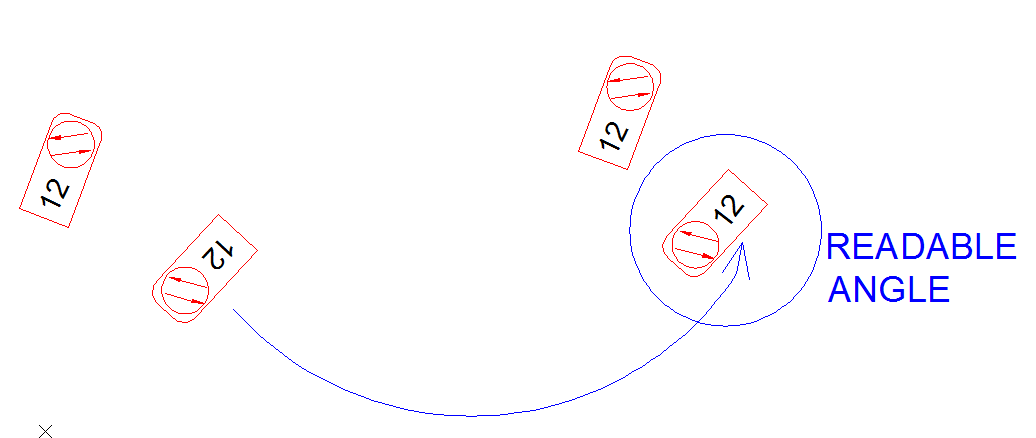

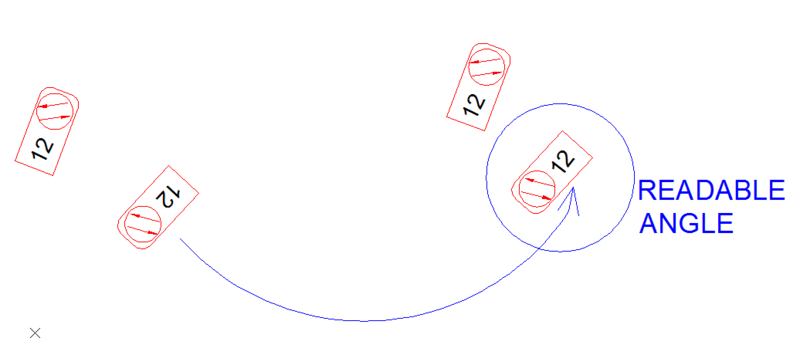

but in some angles Text in getting into inverted position, i need that to be kept in Most readable angle, please check the below screenshot.





i tried with the above provided solution but it just places the angle of the Block in the place of a text.

Could you please help me resolve it.



[Lee Mac]

Quickly written:

(defun c:fixatt ( / i s )
    (if (setq s (ssget "_:L" '((0 . "INSERT") (66 . 1))))
        (repeat (setq i (sslength s))
            (foreach  a (vlax-invoke (vlax-ename->vla-object (ssname s (setq i (1- i)))) 'getattributes)
                (if (and (vlax-write-enabled-p a) (= :vlax-false (vla-get-invisible a)))
                    (vla-put-rotation a (LM:readable (vla-get-rotation a)))
                )
            )
        )
    )
    (princ)
)

;; Readable  -  Lee Mac
;; Returns an angle corrected for text readability.

(defun LM:readable ( a )
    (   (lambda ( a )
            (if (and (< (* pi 0.5) a) (<= a (* pi 1.5)))
                (LM:readable (+ a pi))
                a
            )
        )
        (rem (+ a pi pi) (+ pi pi))
    )
)

(vl-load-com) (princ)



Edited November 9, 2020 by Lee Mac

[amb2301]

1 hour ago, Lee Mac said:

Quickly written:

(defun c:fixatt ( / i s )
    (if (setq s (ssget "_:L" '((0 . "INSERT") (66 . 1))))
        (repeat (setq i (sslength s))
            (foreach  a (vlax-invoke (vlax-ename->vla-object (ssname s (setq i (1- i)))) 'getattributes)
                (if (and (vlax-write-enabled-p a) (= :vlax-false (vla-get-invisible a)))
                    (vla-put-rotation a (LM:readable (vla-get-rotation a)))
                )
            )
        )
    )
    (princ)
)

;; Readable  -  Lee Mac
;; Returns an angle corrected for text readability.

(defun LM:readable ( a )
    (   (lambda ( a )
            (if (and (< (* pi 0.5) a) (<= a (* pi 1.5)))
                (LM:readable (+ a pi))
                a
            )
        )
        (rem (+ a pi pi) (+ pi pi))
    )
)

(vl-load-com) (princ)





Thank you so much Sir, i worked like a charm

Thank you so much for all the special things you do Sir.

[Dana W]

23 hours ago, amb2301 said:

Hi Dana W,

                Thanks for looking on this Thread,

Actually i want the Text inside that Block to be Rotated as per the block angle, i can able to that by applying rotational action inside Dynamic block,

but in some angles Text in getting into inverted position, i need that to be kept in Most readable angle, please check the below screenshot.





i tried with the above provided solution but it just places the angle of the Block in the place of a text.

Could you please help me resolve it.



OK, I thought you needed the "font" (text) to show the angle of the block, since the text attribute already stays at the most readable angle (parallel with the reader) in the block.

[Darshan]

hi,

Thanks for looking on this Thread

I looking for different block attribute text width is different I want to make them right (from 0.65 to 0.80)

Is there is any way to do that quickly instead of picking one by one
