Lineweight issue during plotting

[amb2301]

Hi Friends,

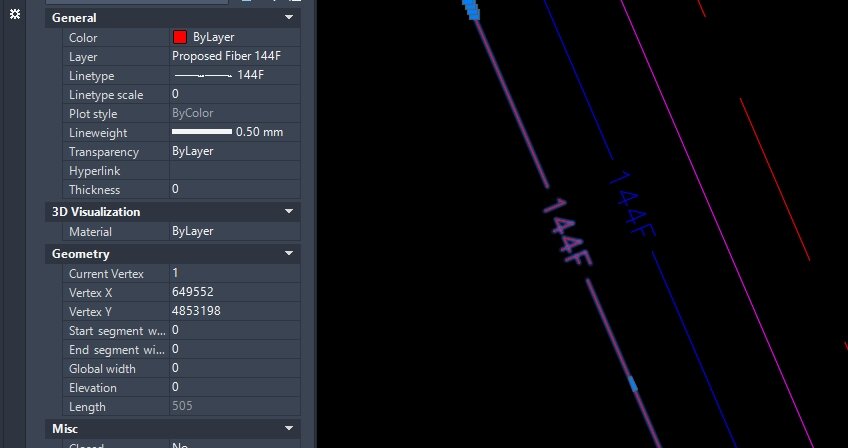

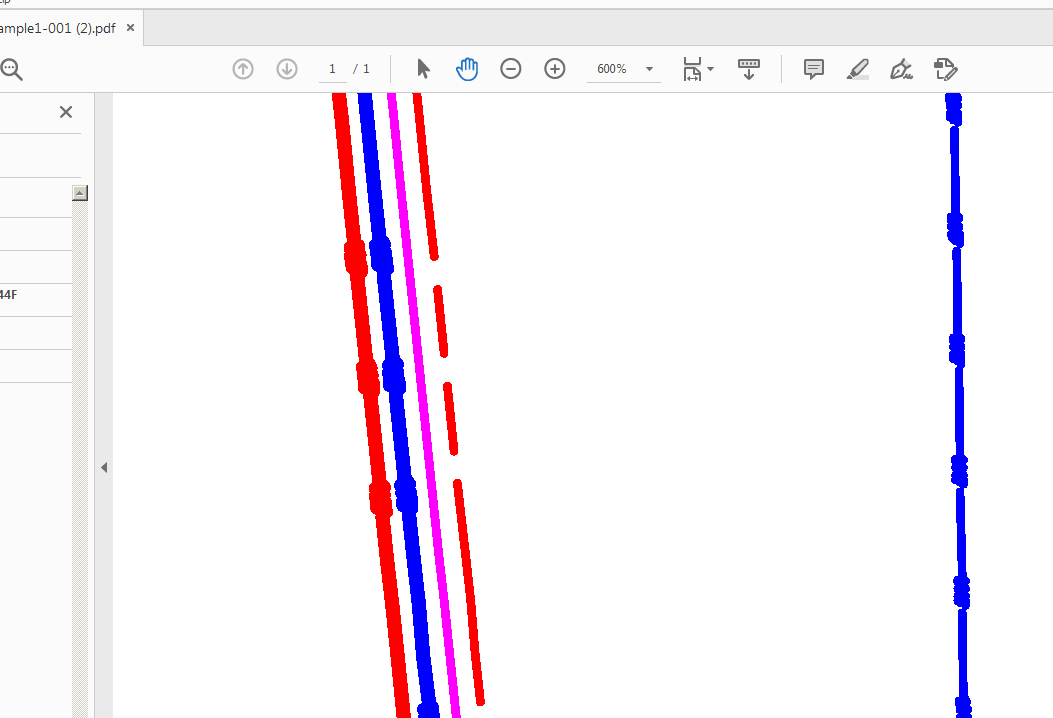

      i have created a new linetype with the text 144F on it, it looks fine in Model view & layout, but while plotting that file into pdf, the text inside that linetype getting blurred & not appearing properly,

could someone help me to resolve this issue.symbol & line types.lin

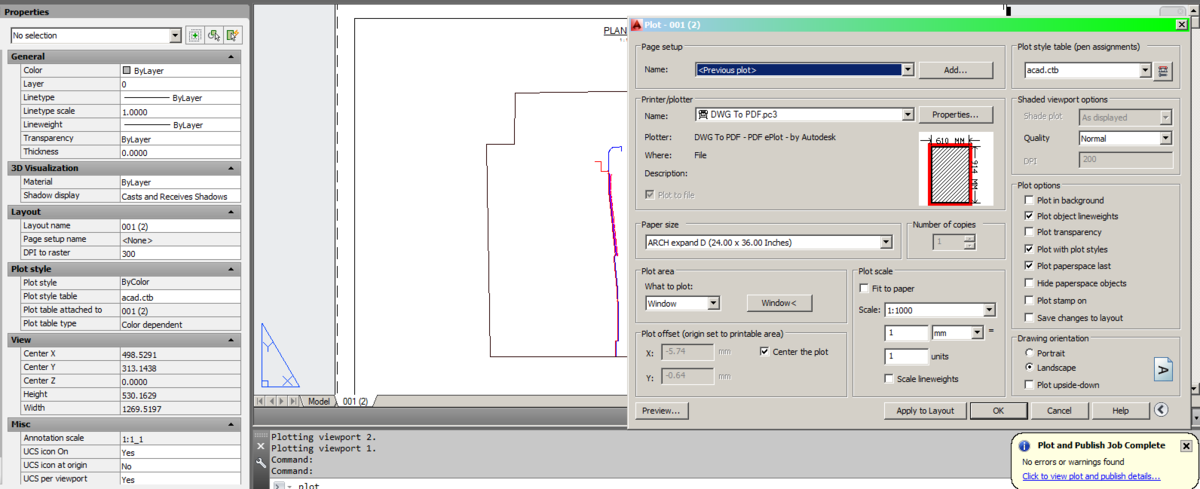

i have attached the required screenshots.



Note: i have created the line type using the TEXT, i m attaching the line type here.

sample1.dwg

Edited November 6, 2020 by amb2301
attachment dwg

[tombu]

Lineweight is applied to shp fonts. I prefer using TrueType fonts in linetypes for that reason. Experiment some characters like underscores (and a few TrueType fonts) which appear as lines in TrueType fonts are often displayed with lineweight but shouldn't affect your example. You could simply change the lineweight if that's an option.



Most users & offices have different opinions of what font is used for STANDARD text style. I'd only use text styles that identify the font like "Swiss Light" "Arial Narrow" or "Romans". That way your text and linetypes should display the same for other users.

[pkenewell]

This may sound like a simple question, but have you checked the lineweight setting of those objects?



EDIT - LOL tombu beat me to it!

Edited November 6, 2020 by pkenewell

[amb2301]

Thanks Tombu & pkenewell for looking on this post, i will try changing the font style in linetype & get back to you

[amb2301]

Hi tombu,

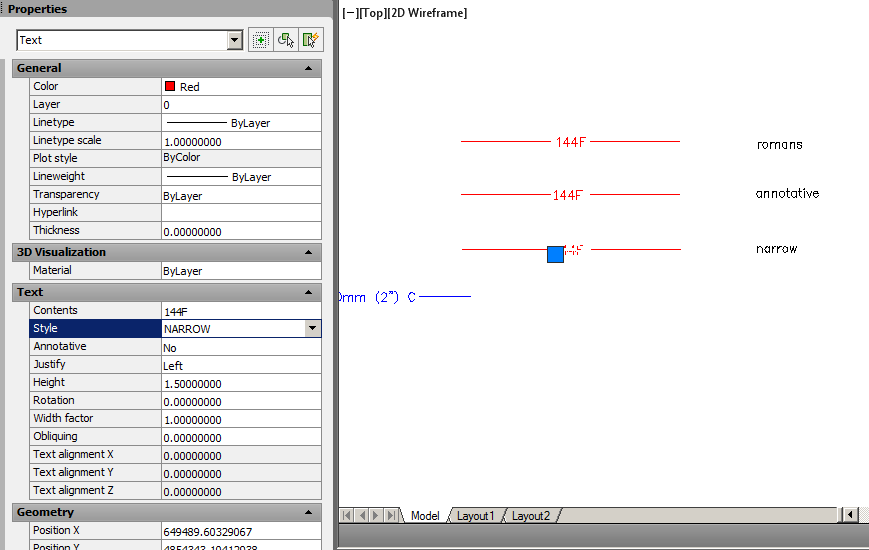

 i have created a new line type & tried creating with different font styles like ROMAN & NARROW, But still while plotting its not appearing clearly.

could you please help me on it.



please check the screenshots.

[pkenewell]

@amb2301 Look at the OBJECT lineweight in Properties. The lineweight is set to 0.5mm. It will come out thick regardless of what you use. Change the object lineweight.





[amb2301]

Thanks pkenewell,

yes, i m aware of the lineweight set to 0.5mm, because after plotting , i m expecting the PDF out like as shown below,

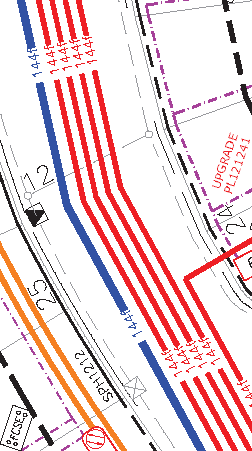

In 100% view of PDF file, the text are appearing clearly & line weight also appears properly, i m trying the same from my dwg to pdf, but i cant





[pkenewell]

Sorry - can't think of another way to help you. the shx font should've been the way to go, but apparently not.

[amb2301]

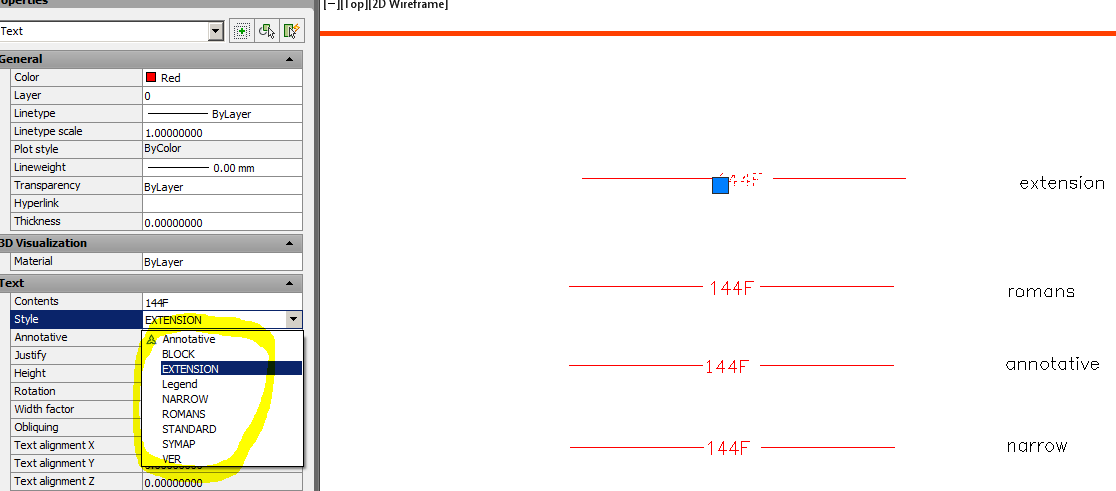

Im getting only this much of font styles, which one i have to use it, i tried with almost all type of fonts for creating linetypes, still in pdf its not appearing properly.

Edited November 6, 2020 by amb2301

[Roy_043]

Change the Standard text style to a TTF font.

[ronjonp]

Try the attached file. I changed the font in your '144F' linetype to Arial.

sample1.dwg

[amb2301]

Hi ronjonp, Thanks for looking on it,

i plot the file provided by you, but still the 144f text not appearing the PDF, please check the attached plotted file.

please hep me to resolve it.



sample1 (1)-001 (2).pdf

[amb2301]

Hi Roy_043, Thanks for looking on it.

     how to change it, i have only following font styles.

[ronjonp]

25 minutes ago, amb2301 said:

Hi ronjonp, Thanks for looking on it,

i plot the file provided by you, but still the 144f text not appearing the PDF, please check the attached plotted file.

please hep me to resolve it.



sample1 (1)-001 (2).pdf 22.12 kB · 0 downloads

Don't think I can help you with this one. Sorry.

[amb2301]

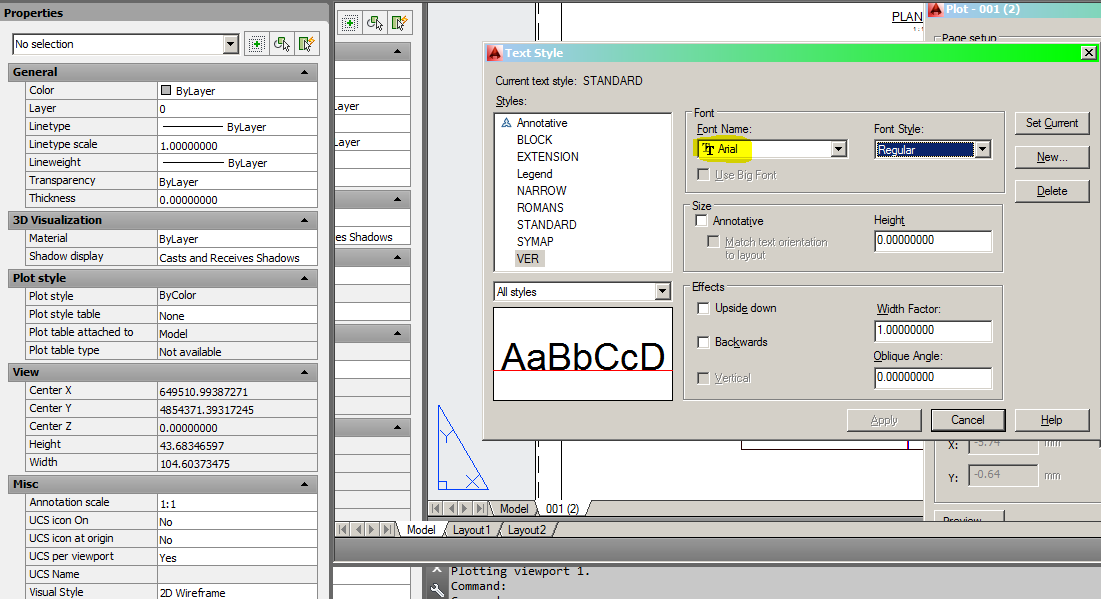

even i tried with following TT Arial font, still the same happens

[amb2301]

1 hour ago, Roy_043 said:

Change the Standard text style to a TTF font.





Thanks Roy_043 & Ronjonp,  I tried with different TTF font, it got resolved.



Thank you so much for your Help!!!

[tombu]

22 hours ago, amb2301 said:

Thanks Tombu & pkenewell for looking on this post, i will try changing the font style in linetype & get back to you

You have to use Text Styles in linetypes. You have to assign a font to a Text Style and then use the Text Style in the linetype.



Sadly complex linetypes were introduced in R13 and the concept of referencing fonts directly like you can in Mtext wasn't introduced until R14.

https://forums.augi.com/showthread.php?133959-Font-referencing-Background-Masking-in-Complex-Linetypes

[amb2301]

okay, Thanks for the info Tombu
