Lisp program to check for bends, tees, reducers in a pipe sytem

[Mohammed Tambasho]

Hi guys am actually rookie in autolisp and I need to develop a program to check fo bends, tees and reducers in a pipe system

[ronjonp]

10 hours ago, Mohammed Tambasho said:

Hi guys am actually rookie in autolisp and I need to develop a program to check fo bends, tees and reducers in a pipe system

You have to start somewhere  ... post your code and a sample drawing and maybe you'll get some help.

[BIGAL]

Like ronjonp are you using plain Autocad or mep etc.

[Mohammed Tambasho]

(defun c:pipes ( / ss i a o l)
  (if
    (setq ss (ssget '((0 . "3DSOLID"))))
    (progn
      (repeat (setq i (sslength ss))
        (if
          (setq a (pipe_geom (ssname ss (setq i (1- i)))))                          ; this function checks the geometry of each part to see if it is cylindrical
          (if
            (setq o (vl-some '(lambda (x) (if (equal (car a) (car x) 1e-5) x)) l))
            (setq l (subst (list (car a) (+ (cadr o) (cadr a))) o l))
            (setq l (cons a l))
          )
        )
      )

      (if
        (setq l (vl-sort l '(lambda (a b) (< (car a) (car b)))))                       ; sorts all the cylindrical solids found by order of increasing diameter
        (ins_table_pipescounting l)
      )
    )
  )
  (princ)
  )

(defun pipe_geom (e / i v r l)
  (setq e (vlax-ename->vla-object e)
        v (vlax-get e 'Volume)
        i ((lambda (x) (if
                         (equal (car x) (cadr x) (* 0.001 (car x)))
                         (list (caddr x) (car x))
                         (if
                           (equal (car x) (caddr x) (* 0.001 (car x)))
                           (list (cadr x) (car x))
                           (if
                             (equal (cadr x) (caddr x) (* 0.001 (cadr x)))
                             (list (car x) (cadr x))
                             )
                           )
                         )
             )
            (vlax-get e 'PrincipalMoments)
            )
        )
  (if i
    (progn
      (setq r (sqrt (/ (* 2.0 (car i)) v))
            l (/ v (* pi r r)))
      (if
        (equal (/ (cadr i) (/ (* v (+ (* 3.0 r r) (* l l))) 12.0)) 1.0 1e-5)
        (list (* 2.0 r) l)
      )
    )
  )
)

(defun ins_table_pipescounting (l / acobj acdoc space ht o tab i row col)
  (setq acObj (vlax-get-acad-object)
        acDoc (vla-get-activedocument acObj)
        space (vlax-get acDoc (if (= 1 (getvar 'cvport)) 'PaperSpace 'ModelSpace))
        ht    (/ 2.2 (cond ((getvar 'cannoscalevalue)) (1.0)))
  )
  (if
    (setq o  (getpoint "\nSpecify table insertion point: "))
    (progn
      (setq tab (vla-addtable space (vlax-3d-point (trans o 1 0)) (+ 2 (length l)) 2 (* 2.5 ht) ht))
      (vlax-put tab 'direction (trans '(1 0 0) 1 0 T))

      (mapcar
        (function
          (lambda (rowType)
            (vla-SetTextStyle tab rowType (getvar 'textstyle))
            (vla-SetTextHeight tab rowType ht)
          )
        )
        '(2 4 1)
      )

      (vla-put-HorzCellMargin tab (* 0.14 ht))
      (vla-put-VertCellMargin tab (* 0.14 ht))

      (setq l (cons (list "Diameter" "Length") l))

      (setq i 0)
      (foreach col (apply 'mapcar (cons 'list l))
        (vla-SetColumnWidth tab i
          (apply 'max
            (mapcar
              '(lambda (x)
                 ((lambda (txb) (+ (abs (- (caadr txb) (caar txb))) (* 2.0 ht)))
                   (textbox
                     (list
                       (cons 1 (vl-princ-to-string x))
                       (cons 7 (getvar 'textstyle))
                       (cons 40 ht)
                     )
                   )
                 )
               )
              col
            )
          )
        )
        (setq i (1+ i))
      )
      (setq l (cons '("PIPES COUNTING") l))

      (setq row 0)
      (foreach r l
        (setq col 0)
        (vla-SetRowHeight tab row (* 1.5 ht))
        (foreach c r
          (vla-SetText tab row col (vl-princ-to-string c))
          (setq col (1+ col))
        )
        (setq row (1+ row))
      )
    )
  )
)

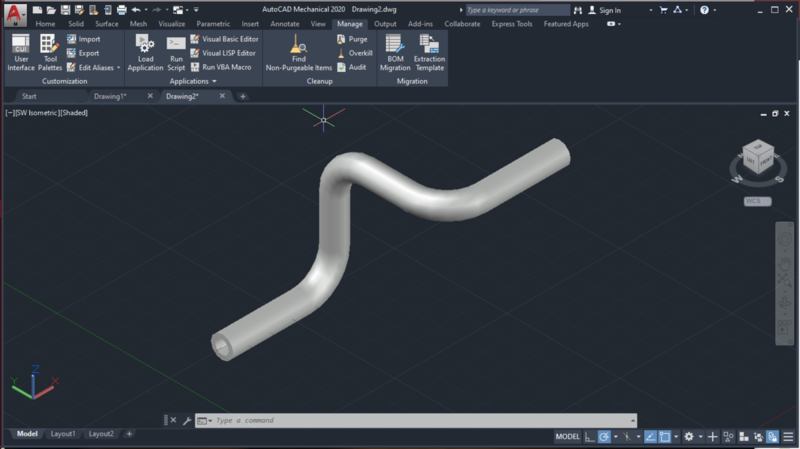

here is a sample drawing and the code. Am  using  Autocad mech.  the code recognizes only full pipes but i need it to recognize hollow pipes.

pipe.dwg

Edited November 4, 2020 by rkmcswain
add [CODE] tags

[Jonathan Handojo]

I'm working in the hydraulic industry as well, so I'm familiar with these terms. First off, what material are they? Copper? PVC? HDPE? Do you need to separate the materials



Also, when you say "hollow", what's the thickness of the pipe/pex you're using? If it was me, I just place blocks on corner points and then count them. And as for pipes, I work using multiline and then I segregate them depending on multiline size.

[Mohammed Tambasho]

hi guys, I am actually writing an autolisp program to calculate head loss in 3D hydraulic networks in Autocad mech but my code apparently has some issues. I will like some help.

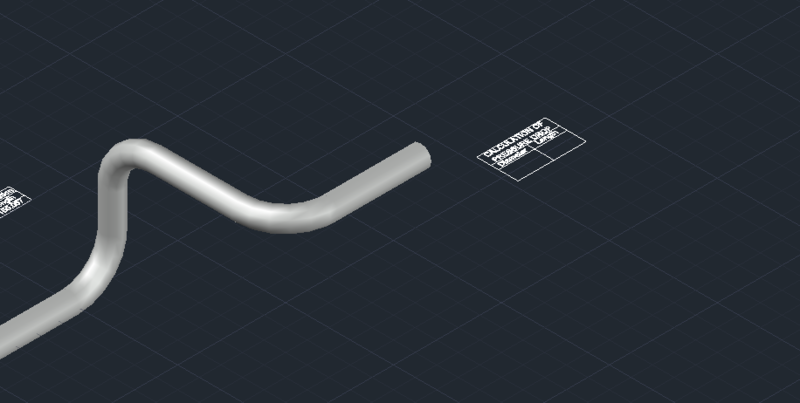

It either returns the error "bad function : TAutocad variable setting rejected: CMDecho nil" or an empty table

Here is the code



(defun c:pipes ( / ss i a o l w b c d)
  (setq w (getreal "\n Specify fluid velocity (m/s): "))
  (setq b (getreal "\n Specify fluid kinematic viscosity (m2/s): "))
  (setq c (getreal "\n Specify duct relative roughness: "))
  (setq d (getreal "\n Specify fluid density (Kg/m3): "))

  (if
    (setq ss (ssget '((0 . "3DSOLID"))))
    (progn
      (repeat (setq i (sslength ss))
        (if
          (setq a (pipe_geom (ssname ss (setq i (1- i)))))
          (if
            (setq o (vl-some '(lambda (x) (if (equal (car a) (car x) 1e-5) x)) l))
            (setq l (subst (list (car a) (+ (cadr o) (cadr a))) o l))
            (setq l (cons a l))
          )
        )
      )

      (if
        (setq l (vl-sort l '(lambda (a b) (< (car a) (car b)))))
        (ins_table_pipescounting l)
      )
    )
  )
  (princ)
  )

(defun pipe_geom (e / i v r l f Re HL)
  (setq e (vlax-ename->vla-object e)
        v (vlax-get e 'Volume)
        i ((lambda (x) (if
                         (equal (car x) (cadr x) (* 0.001 (car x)))
                         (list (caddr x) (car x))
                         (if
                           (equal (car x) (caddr x) (* 0.001 (car x)))
                           (list (cadr x) (car x))
                           (if
                             (equal (cadr x) (caddr x) (* 0.001 (cadr x)))
                             (list (car x) (cadr x))
                             )
                           )
                         )
             )
            (vlax-get e 'PrincipalMoments)
            )
        )
  (if i
    (progn
      (setq r (sqrt (/ (* 2.0 (car i)) v))
            l (/ v (* pi r r)))

      (setq Re (/ (* (* 2.0 r) w) b))
      (cond ((< Re 2000.0) (setq f (/ 64 Re)))
        (and ((> Re 2000.0) (< Re 4000.0)) (alert "\nFluid flow is transitional. \nFriction factor can not be calculated"))
        ((> Re 4000.0) (setq f (/ 0.25 (expt (log (+ (/ c (* 3.7 (* 2.0 r))) (/ 5.74 (expt Re 0.9)))) 2.0))))
    )
      (setq HL (/ (* f d l (expt w 2)) (* 2 2 r)))


      (if
        (equal (/ (cadr i) (/ (* v (+ (* 3.0 r r) (* l l))) 12.0)) 1.0 1e-5)
        (list (* 2.0 r) l HL)
      )
    )
  )
)

(defun ins_table_pipescounting (l / acobj acdoc space ht o tab i row col)
  (setq acObj (vlax-get-acad-object)
        acDoc (vla-get-activedocument acObj)
        space (vlax-get acDoc (if (= 1 (getvar 'cvport)) 'PaperSpace 'ModelSpace))
        ht    (/ 2.2 (cond ((getvar 'cannoscalevalue)) (1.0)))
  )
  (if
    (setq o  (getpoint "\nSpecify table insertion point: "))
    (progn
      (setq tab (vla-addtable space (vlax-3d-point (trans o 1 0)) (+ 2 (length l)) 2 (* 2.5 ht) ht))
      (vlax-put tab 'direction (trans '(1 0 0) 1 0 T))

      (mapcar
        (function
          (lambda (rowType)
            (vla-SetTextStyle tab rowType (getvar 'textstyle))
            (vla-SetTextHeight tab rowType ht)
          )
        )
        '(2 4 1)
      )

      (vla-put-HorzCellMargin tab (* 0.14 ht))
      (vla-put-VertCellMargin tab (* 0.14 ht))

      (setq l (cons (list "Diameter" "Length" "head loss") l))

      (setq i 0)
      (foreach col (apply 'mapcar (cons 'list l))
        (vla-SetColumnWidth tab i
          (apply 'max
            (mapcar
              '(lambda (x)
                 ((lambda (txb) (+ (abs (- (caadr txb) (caar txb))) (* 2.0 ht)))
                   (textbox
                     (list
                       (cons 1 (vl-princ-to-string x))
                       (cons 7 (getvar 'textstyle))
                       (cons 40 ht)
                     )
                   )
                 )
               )
              col
            )
          )
        )
        (setq i (1+ i))
      )
      (setq l (cons '("CALCULATION OF PRESSURE DROP") l))

      (setq row 0)
      (foreach r l
        (setq col 0)
        (vla-SetRowHeight tab row (* 1.5 ht))
        (foreach c r
          (vla-SetText tab row col (vl-princ-to-string c))
          (setq col (1+ col))
        )
        (setq row (1+ row))
      )
    )
  )
)

PIPES.LSP
