Alignment sheet Profile Data to excel

bittu

By bittu
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

bittu Rookie

bittu

Posted
Posted

Dear User,

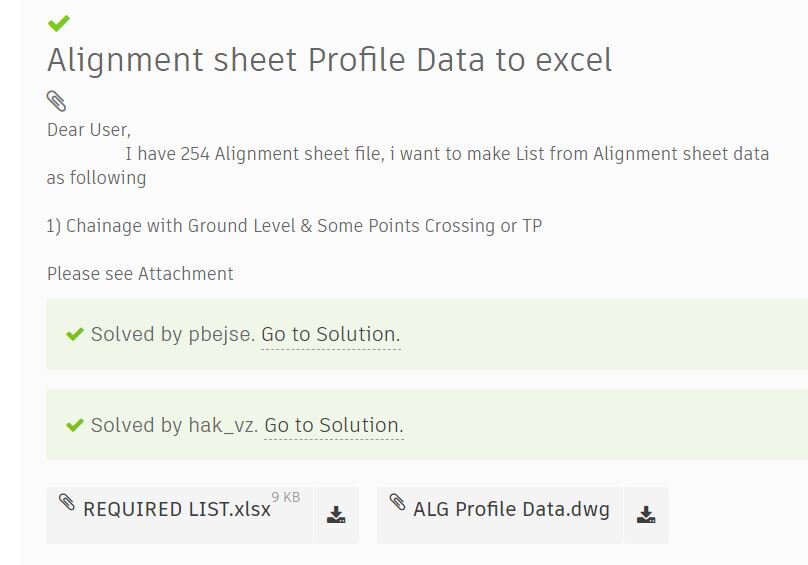

                 I have 254 Alignment sheet file, i want to make List from Alignment sheet data

as following



1) Chainage with Ground Level & Some Points Crossing or TP



Please see Attachment

ALG Profile Data.dwg REQUIRED LIST.xlsx

hosneyalaa Community Regular

hosneyalaa

Posted
Posted
(Defun c:PSS (/	_WriteDataToExcel _SOrtThis chainColl levelColl
	      	ChainAndLevels comments chainColl levelColl crossing
	      	crossingString
	     )

;;;	 		pBe Oct. 2020			;;;

(Defun _WriteDataToExcel (tmpl lst /  newDataFile)
	(if
	  (and tmpl
	  (setq	newDataFile
		 (getfiled
		   "Enter New Data file"
		   (strcat (getvar 'dwgprefix)
			   (vl-filename-base (getvar 'dwgname))
			   ".xlsx"
		   )
		   "xlsx;xls"
		   1
		 )
	  )
	  gc:WriteExcel
	)
	(progn
	(vl-file-delete newDataFile)
	(vl-file-copy tmpl newDataFile)
	(gc:WriteExcel newDataFile "Sheet1" "A3" lst)
	)
	)
	(princ (strcat "\nData saved : " newDataFile))
)

  (Defun _SOrtThis (l)
    (mapcar 'cdr
	    (vl-sort l '(lambda (a b) (< (car a) (car b))))
    )
  )
  (princ "\nSelect LEVELS and CHAINAGE")
  (if
    (and
      	gc:WriteExcel ;;<-- gc:WriteExcel should be loaded
	(or
	  XcelTemplate
	  (setq	XcelTemplate
		 (getfiled
		   "Select Template file"
		   (getvar 'dwgprefix)
		   "xlsx;xls"
		   16
		 )
	  )
	  )
	(setq ChainAndLevels (ssget '((0 . "TEXT") (1 . "*#.#*"))))
	)

     (progn
       (repeat (setq i (sslength ChainAndLevels))
	 (setq ent (entget (ssname ChainAndLevels (setq i (1- i)))))
	 (setq data (cons
		      (cadr (assoc 10 ent))
		      (cdr (assoc 1 ent))
		    )
	 )
	 (if (vl-string-position 43 (Cdr data))
	   (Setq chainColl (cons data chainColl))
	   (setq levelColl (cons data levelColl))
	 )
       )
       (setq ChainAndLevels (mapcar 'list
				    (_SOrtThis chainColl)
				    (_SOrtThis levelColl)
			    )
	     ChainAndLevels (mapcar '(lambda (v)
				       (list (Car v) (distof (Cadr v)))
				     )
				    ChainAndLevels
			    )
       )
       (princ "\nSelect Crossings[Enter for none]")
       (if (setq crossing (ssget '((0 . "TEXT") (1 . "*#+#*"))))
	 (foreach itm (vl-remove-if
			'listp
			(mapcar 'cadr (ssnamex crossing))
		      )
	   (setq crossingString (getpropertyvalue itm "TextString"))
	   (if (setq found
		      (vl-some
			'(lambda (cl)
			   (if (vl-string-search (Car cl) crossingString)
			     cl
			   )
			 )
			ChainAndLevels
		      )
	       )
	     (setq ChainAndLevels
		    (subst (append found (list crossingString))
			   found
			   ChainAndLevels
		    )
	     )
	   )
	 )
       )
;;;	Commented 					;;;
       (foreach	itm ChainAndLevels
	 (print itm)
       )

;;;		Writing data to excel File		;;;

       (_WriteDataToExcel XcelTemplate  ChainAndLevels)

;;;							;;;
     )
	(Vl-some '(lambda (d)
			(if (not (eval (Car d)))
			  (princ (strcat "\n" (cadr d) " not found"))
			)
		      )
		     '((gc:WriteExcel "WriteExcel function")
		       (XcelTemplate "Data Template")
		       (ChainAndLevels "Chainage and Levels data")
		      )
		   )
  )
  (princ)
)







;;-------------------------------------------------------------------------------
;; gc:WriteExcel
;; Writes in an Excel file
;;
;; Arguments : 4
;;   filename   : complete path of the file
;;   sheet      : name of the sheet (or nil for the current sheet)
;;   startRange : name of the start cell (or nil for "A1")
;;   dataList   : list of sub-lists containing the data (one sub-list per row)
;;-------------------------------------------------------------------------------
(defun gc:WriteExcel (filename sheet    startRange        dataList /        *error*  xlApp
                      wBook    save     sheets   active   start    row      col      cells
                      n        cell
                     )
  (vl-load-com)

  (defun *error* (msg)
    (and msg
         (/= msg "Function cancelled")
         (princ (strcat "\nError: " msg))
    )
    (and wBook (vlax-invoke-method wBook 'Close :vlax-False))
    (and xlApp (vlax-invoke-method xlApp 'Quit))
    (and reg (vlax-release-object reg))
    (mapcar (function (lambda (obj) (and obj (vlax-release-object obj))))
            (list cell cells wBook xlApp)
    )
    (gc)
  )

  (setq xlapp (vlax-get-or-create-object "Excel.Application"))

  (if (findfile filename)
    (setq wBook (vlax-invoke-method (vlax-get-property xlapp 'WorkBooks) 'Open filename)
          save  T
    )
    (setq wBook (vlax-invoke-method (vlax-get-property xlapp 'WorkBooks) 'Add))
  )

  (if sheet
    (progn
      (setq sheets (vlax-get-property xlApp 'Sheets))
      (vlax-for s sheets
        (if (= (strcase (vlax-get-property s 'Name)) (strcase sheet))
          (progn
            (vlax-invoke-method s 'Activate)
            (setq active T)
          )
        )
      )
      (or active
          (vlax-put-property (vlax-invoke-method sheets 'Add) 'Name sheet)
      )
    )
  )

  (if startRange
    (setq start (gc:ColumnRow startRange)
          col   (car start)
          row   (cadr start)
    )
    (setq col 1
          row 1
    )
  )

  (setq cells (vlax-get-property xlApp 'Cells))
  (or startRange (vlax-invoke-method cells 'Clear))
  (foreach sub dataList
    (setq n col)
    (foreach data sub
      (setq cell (vlax-variant-value (vlax-get-property cells 'Item row n)))
      (if (= (type data) 'STR)
        (vlax-put-property cell 'NumberFormat "@")
      )
      (vlax-put-property cell 'Value2 data)
      (setq n (1+ n))
    )
    (setq row (1+ row))
  )

  (vlax-invoke-method
    (vlax-get-property
      (vlax-get-property xlApp 'ActiveSheet)
      'Columns
    )
    'AutoFit
  )

  (if save
    (vlax-invoke-method wBook 'Save)
    (if (and
          (< "11.0" (vlax-get-property xlapp "Version"))
          (= (strcase (vl-filename-extension filename) T) ".xlsx")
        )
      (vlax-invoke-method wBook 'SaveAs filename 51 "" "" :vlax-false :vlax-false 1 1)
      (vlax-invoke-method wBook 'SaveAs filename -4143 "" "" :vlax-false :vlax-false 1 1)
    )
  )

  (*error* nil)
)

;;-------------------------------------------------------------------------------
;; gc:ReadExcel
;; Returns a list of sub-lists containing the data of an Excel file (one sub-list per row)
;;
;; Arguments : 4
;;   filename   : complete path of the file
;;   sheet      : name of the sheet (or nil for the current sheet)
;;   startRange : name of the start cell (or nil for "A1")
;;   maxRange   : name of the cell where the reading have to stop,
;;                or "*" for the whole sheet, or nil or "" for the current range
;;-------------------------------------------------------------------------------
(defun gc:ReadExcel (filename  sheet     startRange          maxRange  /         *error*
                     xlApp     wBook wSheet      startCell startCol  startRow  maxCell   maxCol
                     maxRow    reg       cells     col       row       data      sub
                     lst
                    )

  (defun *error* (msg)
    (and msg
         (/= msg "Fonction annulée")
         (princ (strcat "\nErreur: " msg))
    )
    (and wBook (vlax-invoke-method wBook 'Close :vlax-False))
    (and xlApp (vlax-invoke-method xlApp 'Quit))
    (mapcar (function (lambda (obj) (and obj (vlax-release-object obj))))
            (list reg cells wSheet wBook xlApp)
    )
    (gc)
  )

  (setq xlapp (vlax-get-or-create-object "Excel.Application")
        wBook (vlax-invoke-method (vlax-get-property xlApp 'WorkBooks) 'Open filename)
  )

  (if sheet
    (vlax-for ws (vlax-get-property xlapp 'Sheets)
      (if (= (vlax-get-property ws 'Name) sheet)
        (vlax-invoke-method (setq wSheet ws) 'Activate)
      )
    )
    (setq wSheet (vlax-get-property wBook 'ActiveSheet))
  )

  (if startRange
    (setq startCell (gc:ColumnRow startRange)
          startCol  (car startCell)
          startRow  (cadr startCell)
    )
    (setq startRange
           "A1"
          startCol 1
          startRow 1
    )
  )

  (if (and maxRange (setq maxCell (gc:ColumnRow maxRange)))
    (setq maxCol (1+ (car MaxCell))
          maxRow (1+ (cadr MaxCell))
    )
    (setq reg    (if (= maxRange "*")
                   (vlax-get-property wSheet 'UsedRange)
                   (vlax-get-property
                     (vlax-get-property wSheet 'Range startRange)
                     'CurrentRegion
                   )
                 )
          maxRow (+ (vlax-get-property reg 'Row)
                    (vlax-get-property (vlax-get-property reg 'Rows) 'Count)
                 )
          maxCol (+ (vlax-get-property reg 'Column)
                    (vlax-get-property (vlax-get-property reg 'Columns) 'Count)
                 )
    )
  )

  (setq cells (vlax-get-property xlApp 'Cells)
        row maxRow
  )
  (while (< startRow row)
    (setq sub nil
          col maxCol
          row (1- row)
    )
    (while (< startCol col)
      (setq col (1- col)
            sub (cons
                  (vlax-variant-value
                    (vlax-get-Property
                      (vlax-variant-value (vlax-get-property cells 'Item row col))
                      'Value2
                    )
                  )
                  sub
                )
      )
    )
    (setq lst (cons sub lst))
  )

  (*error* nil)

  lst
)

;;-------------------------------------------------------------------------------
;; gc:ColumnRow
;; Returns a list of the column row indices
;; Argument: 1
;;   cell = name of the cell
;; Using example : (gc:ColumnRow "IV987") -> (256 987)
;;-------------------------------------------------------------------------------
(defun gc:ColumnRow (cell / col char row)
  (setq col "")
  (while (< 64 (ascii (setq char (strcase (substr cell 1 1)))) 91)
    (setq col  (strcat col char)
          cell (substr cell 2)
    )
  )
  (if (and (/= col "") (numberp (setq row (read Cell))))
    (list (gc:Alpha2Number col) row)
  )
)

;;-------------------------------------------------------------------------------
;; gc:Alpha2Number
;; Converts a string into an integer
;; Arguments: 1
;;   str = string to convert
;; Using example : (gc:Alpha2Number "BU") = 73
;;-------------------------------------------------------------------------------
(defun gc:Alpha2Number (str / num)
  (if (= 0 (setq num (strlen str)))
    0
    (+ (* (- (ascii (strcase (substr str 1 1))) 64)
          (expt 26 (1- num))
       )
       (gc:Alpha2Number (substr str 2))
    )
  )
)

;;-------------------------------------------------------------------------------
;; gc:Number2Alpha - Convertit un nombre entier en chaîne alphabétique
;; Converts an integer into a string
;; Arguments: 1
;;   num = integer to convert
;; Using example : (gc:Number2Alpha 73) = "BU"
;;-------------------------------------------------------------------------------
(defun gc:Number2Alpha (num / val)
  (if (< num 27)
    (chr (+ 64 num))
    (if (= 0 (setq val (rem num 26)))
      (strcat (gc:Number2Alpha (1- (/ num 26))) "Z")
      (strcat (gc:Number2Alpha (/ num 26)) (chr (+ 64 val)))
    )
  )
)







  • Like 1

bittu Rookie

bittu

Posted
  • Author
Posted
29 minutes ago, hosneyalaa said:

(Defun c:PSS (/	_WriteDataToExcel _SOrtThis chainColl levelColl
	      	ChainAndLevels comments chainColl levelColl crossing
	      	crossingString
	     )

;;;	 		pBe Oct. 2020			;;;

(Defun _WriteDataToExcel (tmpl lst /  newDataFile)
	(if
	  (and tmpl
	  (setq	newDataFile
		 (getfiled
		   "Enter New Data file"
		   (strcat (getvar 'dwgprefix)
			   (vl-filename-base (getvar 'dwgname))
			   ".xlsx"
		   )
		   "xlsx;xls"
		   1
		 )
	  )
	  gc:WriteExcel
	)
	(progn
	(vl-file-delete newDataFile)
	(vl-file-copy tmpl newDataFile)
	(gc:WriteExcel newDataFile "Sheet1" "A3" lst)
	)
	)
	(princ (strcat "\nData saved : " newDataFile))
)

  (Defun _SOrtThis (l)
    (mapcar 'cdr
	    (vl-sort l '(lambda (a b) (< (car a) (car b))))
    )
  )
  (princ "\nSelect LEVELS and CHAINAGE")
  (if
    (and
      	gc:WriteExcel ;;<-- gc:WriteExcel should be loaded
	(or
	  XcelTemplate
	  (setq	XcelTemplate
		 (getfiled
		   "Select Template file"
		   (getvar 'dwgprefix)
		   "xlsx;xls"
		   16
		 )
	  )
	  )
	(setq ChainAndLevels (ssget '((0 . "TEXT") (1 . "*#.#*"))))
	)

     (progn
       (repeat (setq i (sslength ChainAndLevels))
	 (setq ent (entget (ssname ChainAndLevels (setq i (1- i)))))
	 (setq data (cons
		      (cadr (assoc 10 ent))
		      (cdr (assoc 1 ent))
		    )
	 )
	 (if (vl-string-position 43 (Cdr data))
	   (Setq chainColl (cons data chainColl))
	   (setq levelColl (cons data levelColl))
	 )
       )
       (setq ChainAndLevels (mapcar 'list
				    (_SOrtThis chainColl)
				    (_SOrtThis levelColl)
			    )
	     ChainAndLevels (mapcar '(lambda (v)
				       (list (Car v) (distof (Cadr v)))
				     )
				    ChainAndLevels
			    )
       )
       (princ "\nSelect Crossings[Enter for none]")
       (if (setq crossing (ssget '((0 . "TEXT") (1 . "*#+#*"))))
	 (foreach itm (vl-remove-if
			'listp
			(mapcar 'cadr (ssnamex crossing))
		      )
	   (setq crossingString (getpropertyvalue itm "TextString"))
	   (if (setq found
		      (vl-some
			'(lambda (cl)
			   (if (vl-string-search (Car cl) crossingString)
			     cl
			   )
			 )
			ChainAndLevels
		      )
	       )
	     (setq ChainAndLevels
		    (subst (append found (list crossingString))
			   found
			   ChainAndLevels
		    )
	     )
	   )
	 )
       )
;;;	Commented 					;;;
       (foreach	itm ChainAndLevels
	 (print itm)
       )

;;;		Writing data to excel File		;;;

       (_WriteDataToExcel XcelTemplate  ChainAndLevels)

;;;							;;;
     )
	(Vl-some '(lambda (d)
			(if (not (eval (Car d)))
			  (princ (strcat "\n" (cadr d) " not found"))
			)
		      )
		     '((gc:WriteExcel "WriteExcel function")
		       (XcelTemplate "Data Template")
		       (ChainAndLevels "Chainage and Levels data")
		      )
		   )
  )
  (princ)
)








;;-------------------------------------------------------------------------------
;; gc:WriteExcel
;; Writes in an Excel file
;;
;; Arguments : 4
;;   filename   : complete path of the file
;;   sheet      : name of the sheet (or nil for the current sheet)
;;   startRange : name of the start cell (or nil for "A1")
;;   dataList   : list of sub-lists containing the data (one sub-list per row)
;;-------------------------------------------------------------------------------
(defun gc:WriteExcel (filename sheet    startRange        dataList /        *error*  xlApp
                      wBook    save     sheets   active   start    row      col      cells
                      n        cell
                     )
  (vl-load-com)

  (defun *error* (msg)
    (and msg
         (/= msg "Function cancelled")
         (princ (strcat "\nError: " msg))
    )
    (and wBook (vlax-invoke-method wBook 'Close :vlax-False))
    (and xlApp (vlax-invoke-method xlApp 'Quit))
    (and reg (vlax-release-object reg))
    (mapcar (function (lambda (obj) (and obj (vlax-release-object obj))))
            (list cell cells wBook xlApp)
    )
    (gc)
  )

  (setq xlapp (vlax-get-or-create-object "Excel.Application"))

  (if (findfile filename)
    (setq wBook (vlax-invoke-method (vlax-get-property xlapp 'WorkBooks) 'Open filename)
          save  T
    )
    (setq wBook (vlax-invoke-method (vlax-get-property xlapp 'WorkBooks) 'Add))
  )

  (if sheet
    (progn
      (setq sheets (vlax-get-property xlApp 'Sheets))
      (vlax-for s sheets
        (if (= (strcase (vlax-get-property s 'Name)) (strcase sheet))
          (progn
            (vlax-invoke-method s 'Activate)
            (setq active T)
          )
        )
      )
      (or active
          (vlax-put-property (vlax-invoke-method sheets 'Add) 'Name sheet)
      )
    )
  )

  (if startRange
    (setq start (gc:ColumnRow startRange)
          col   (car start)
          row   (cadr start)
    )
    (setq col 1
          row 1
    )
  )

  (setq cells (vlax-get-property xlApp 'Cells))
  (or startRange (vlax-invoke-method cells 'Clear))
  (foreach sub dataList
    (setq n col)
    (foreach data sub
      (setq cell (vlax-variant-value (vlax-get-property cells 'Item row n)))
      (if (= (type data) 'STR)
        (vlax-put-property cell 'NumberFormat "@")
      )
      (vlax-put-property cell 'Value2 data)
      (setq n (1+ n))
    )
    (setq row (1+ row))
  )

  (vlax-invoke-method
    (vlax-get-property
      (vlax-get-property xlApp 'ActiveSheet)
      'Columns
    )
    'AutoFit
  )

  (if save
    (vlax-invoke-method wBook 'Save)
    (if (and
          (< "11.0" (vlax-get-property xlapp "Version"))
          (= (strcase (vl-filename-extension filename) T) ".xlsx")
        )
      (vlax-invoke-method wBook 'SaveAs filename 51 "" "" :vlax-false :vlax-false 1 1)
      (vlax-invoke-method wBook 'SaveAs filename -4143 "" "" :vlax-false :vlax-false 1 1)
    )
  )

  (*error* nil)
)

;;-------------------------------------------------------------------------------
;; gc:ReadExcel
;; Returns a list of sub-lists containing the data of an Excel file (one sub-list per row)
;;
;; Arguments : 4
;;   filename   : complete path of the file
;;   sheet      : name of the sheet (or nil for the current sheet)
;;   startRange : name of the start cell (or nil for "A1")
;;   maxRange   : name of the cell where the reading have to stop,
;;                or "*" for the whole sheet, or nil or "" for the current range
;;-------------------------------------------------------------------------------
(defun gc:ReadExcel (filename  sheet     startRange          maxRange  /         *error*
                     xlApp     wBook wSheet      startCell startCol  startRow  maxCell   maxCol
                     maxRow    reg       cells     col       row       data      sub
                     lst
                    )

  (defun *error* (msg)
    (and msg
         (/= msg "Fonction annulée")
         (princ (strcat "\nErreur: " msg))
    )
    (and wBook (vlax-invoke-method wBook 'Close :vlax-False))
    (and xlApp (vlax-invoke-method xlApp 'Quit))
    (mapcar (function (lambda (obj) (and obj (vlax-release-object obj))))
            (list reg cells wSheet wBook xlApp)
    )
    (gc)
  )

  (setq xlapp (vlax-get-or-create-object "Excel.Application")
        wBook (vlax-invoke-method (vlax-get-property xlApp 'WorkBooks) 'Open filename)
  )

  (if sheet
    (vlax-for ws (vlax-get-property xlapp 'Sheets)
      (if (= (vlax-get-property ws 'Name) sheet)
        (vlax-invoke-method (setq wSheet ws) 'Activate)
      )
    )
    (setq wSheet (vlax-get-property wBook 'ActiveSheet))
  )

  (if startRange
    (setq startCell (gc:ColumnRow startRange)
          startCol  (car startCell)
          startRow  (cadr startCell)
    )
    (setq startRange
           "A1"
          startCol 1
          startRow 1
    )
  )

  (if (and maxRange (setq maxCell (gc:ColumnRow maxRange)))
    (setq maxCol (1+ (car MaxCell))
          maxRow (1+ (cadr MaxCell))
    )
    (setq reg    (if (= maxRange "*")
                   (vlax-get-property wSheet 'UsedRange)
                   (vlax-get-property
                     (vlax-get-property wSheet 'Range startRange)
                     'CurrentRegion
                   )
                 )
          maxRow (+ (vlax-get-property reg 'Row)
                    (vlax-get-property (vlax-get-property reg 'Rows) 'Count)
                 )
          maxCol (+ (vlax-get-property reg 'Column)
                    (vlax-get-property (vlax-get-property reg 'Columns) 'Count)
                 )
    )
  )

  (setq cells (vlax-get-property xlApp 'Cells)
        row maxRow
  )
  (while (< startRow row)
    (setq sub nil
          col maxCol
          row (1- row)
    )
    (while (< startCol col)
      (setq col (1- col)
            sub (cons
                  (vlax-variant-value
                    (vlax-get-Property
                      (vlax-variant-value (vlax-get-property cells 'Item row col))
                      'Value2
                    )
                  )
                  sub
                )
      )
    )
    (setq lst (cons sub lst))
  )

  (*error* nil)

  lst
)

;;-------------------------------------------------------------------------------
;; gc:ColumnRow
;; Returns a list of the column row indices
;; Argument: 1
;;   cell = name of the cell
;; Using example : (gc:ColumnRow "IV987") -> (256 987)
;;-------------------------------------------------------------------------------
(defun gc:ColumnRow (cell / col char row)
  (setq col "")
  (while (< 64 (ascii (setq char (strcase (substr cell 1 1)))) 91)
    (setq col  (strcat col char)
          cell (substr cell 2)
    )
  )
  (if (and (/= col "") (numberp (setq row (read Cell))))
    (list (gc:Alpha2Number col) row)
  )
)

;;-------------------------------------------------------------------------------
;; gc:Alpha2Number
;; Converts a string into an integer
;; Arguments: 1
;;   str = string to convert
;; Using example : (gc:Alpha2Number "BU") = 73
;;-------------------------------------------------------------------------------
(defun gc:Alpha2Number (str / num)
  (if (= 0 (setq num (strlen str)))
    0
    (+ (* (- (ascii (strcase (substr str 1 1))) 64)
          (expt 26 (1- num))
       )
       (gc:Alpha2Number (substr str 2))
    )
  )
)

;;-------------------------------------------------------------------------------
;; gc:Number2Alpha - Convertit un nombre entier en chaîne alphabétique
;; Converts an integer into a string
;; Arguments: 1
;;   num = integer to convert
;; Using example : (gc:Number2Alpha 73) = "BU"
;;-------------------------------------------------------------------------------
(defun gc:Number2Alpha (num / val)
  (if (< num 27)
    (chr (+ 64 num))
    (if (= 0 (setq val (rem num 26)))
      (strcat (gc:Number2Alpha (1- (/ num 26))) "Z")
      (strcat (gc:Number2Alpha (/ num 26)) (chr (+ 64 val)))
    )
  )
)







@hosneyalaa THANKS FOR REPLY....
