Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 (edited) I'm working on my layers now. My way of thinking was like when I was in sawmill equipment, they would give us a layout drawing and we would get prints to make parts, frames, rollers and all the things we needed to build it all. We would lay it out on a floor, as the things were welded, fabricated, machined we put them together in that spot till the mill was all there. That's how I got my idea of how to do it. @f700es There is a .DWG on page 5 of this thread, I believe. Edited September 25, 2020 by Berzerker 1 Quote Link to comment Share on other sites More sharing options...
f700es Posted September 25, 2020 Share Posted September 25, 2020 4 minutes ago, Berzerker said: @f700es There is a .DWG on page 4 of this thread, I believe. Yeah, I didn't go to the last post before hitting 'reply' Thanks Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 Edit: page 5 Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 Believe or not I went searching for a 3D drawing of a 6X9" speaker on the internet and couldn't find one. So now there is a 3D drawing for a 6X9" speaker even if it's just close. 1 Quote Link to comment Share on other sites More sharing options...
Cad64 Posted September 25, 2020 Share Posted September 25, 2020 18 minutes ago, f700es said: Don't use AutoCAD to render. Yes I know it can do it BUT there are better and easier solutions. Give me your cad file and I'll show you I completely forgot about that program you use. I should have suggested it before jumping through all these hoops with Autocad. Looking forward to seeing your render. 1 Quote Link to comment Share on other sites More sharing options...
f700es Posted September 25, 2020 Share Posted September 25, 2020 I like it. My 20 year old son is in to speakers and such so I'll show him your work. He made a sub box for a friend of his that doesn't have a lot of money and we used the CNC machine at work to carve in the logos on the top. The kid almost cried when he saw it. Any way here's 5 minutes of work in Simlab Composer Lite (free) with materials and a 2 min 30 sec render. 1 Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 You must read minds! I was just searching for a third party renderers. Quote Link to comment Share on other sites More sharing options...
f700es Posted September 25, 2020 Share Posted September 25, 2020 4 minutes ago, Berzerker said: You must read minds! I was just searching for a third party renderers. Yeah they are great. I love AutoCAD and use it everyday but there are better rendering solutions out there. I've seen some GREAT render from AutoCAD as well but I just don't think all the extra effort if worth it imo. Simlab Composer is a great tool. The free 'Lite' version is a great starting point and the 1st tier "pro" version is a great bargain at $199, last year around Christmas they had it on sale for $149. It also comes with integration tools for all the popular CAD programs...including AutoCAD https://www.simlab-soft.com/3d-products/Integration/simlab-composer-AutoCad-integration.aspxhttps://www.simlab-soft.com/3d-products/simlab-composer-trial.aspx Quote Link to comment Share on other sites More sharing options...
Cad64 Posted September 25, 2020 Share Posted September 25, 2020 13 minutes ago, f700es said: here's 5 minutes of work in Simlab Composer Lite (free) with materials and a 2 min 30 sec render. Looks great! I'm always impressed by the renders that come out of this free program. 1 Quote Link to comment Share on other sites More sharing options...
f700es Posted September 25, 2020 Share Posted September 25, 2020 In Acad act like layers are going to be materials in Simlab. Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 It says it integrates into AutoCad (?) I can't find where to install it into AutoCad. Quote Link to comment Share on other sites More sharing options...
Cad64 Posted September 25, 2020 Share Posted September 25, 2020 15 minutes ago, Berzerker said: It says it integrates into AutoCad (?) I can't find where to install it into AutoCad. It's a stand-alone program. All you have to do is import your dwg file. I see there is a plug-in available that integrates with Autocad, but it's only available for 2012 and up, so that won't work for you anyway. Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 OK I'm not getting it? I made my layers list up of the different things in the speaker, The Metal shell, the magnet and so forth. I've be able to move a couple of objects to their correct layers. But some I click on and it asks to select what I want on the drawing, I select it and It doesn't move. Everything is on the same layer. I turn layer 0 off and everything disappears. I just want this object on this layer. Quote Link to comment Share on other sites More sharing options...
Cad64 Posted September 25, 2020 Share Posted September 25, 2020 For the purpose of moving objects to their correct layer, you might want to switch to 2DWireframe instead of Realistic, or whatever visual style you currently have set. That should make it easier to select objects. Quote Link to comment Share on other sites More sharing options...

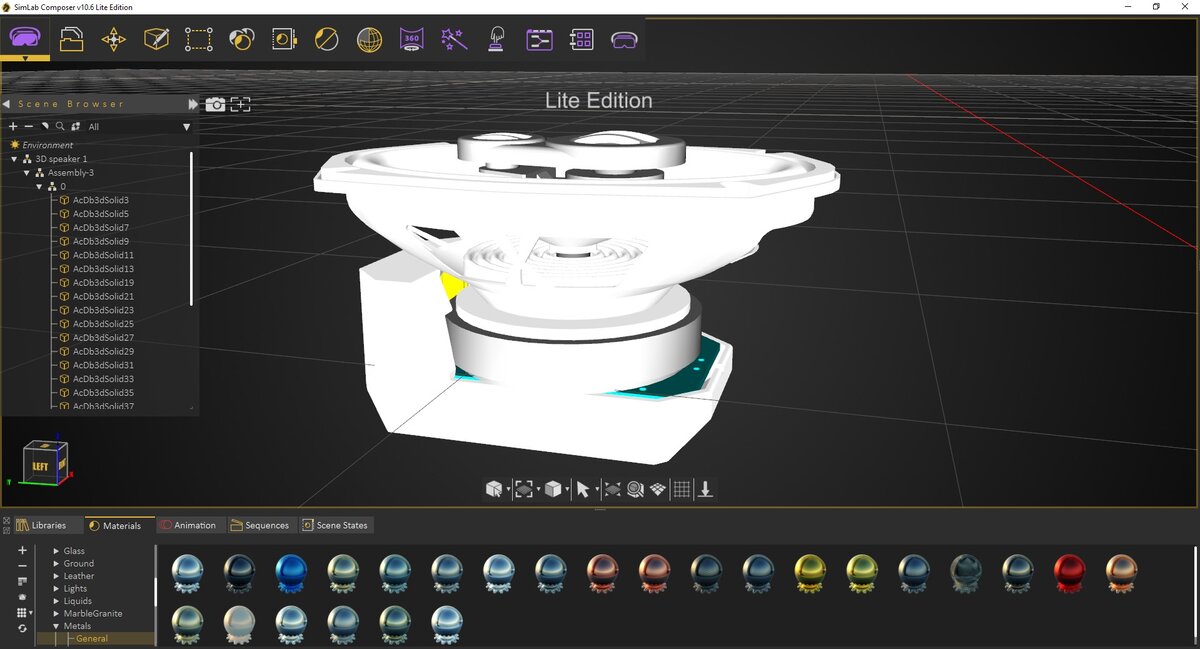

f700es Posted September 25, 2020 Share Posted September 25, 2020 Sorry didn't see you Acad version my bad. Yes, it's a stand a lone program and it can open your cad file. Here's what it looks like with your file in it.... Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 Yeah it didn't work. Got my layers right finally. I can turn off, on, freeze and thaw, attach materials by layer...etc. I'll look for an older render program. Quote Link to comment Share on other sites More sharing options...
f700es Posted September 25, 2020 Share Posted September 25, 2020 Well you can still use it, you'll just have to break faces in SimLab and apply materials to those faces. Not a deal breaker. Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 (edited) Now I have learned how to my make my own commands and a Icon and place it in a toolbar. No need to type "perspective and sunstatus" in anymore Edited September 25, 2020 by Berzerker Quote Link to comment Share on other sites More sharing options...
Berzerker Posted September 25, 2020 Author Share Posted September 25, 2020 (edited) Trying to figure out can I use a toggle button in Toolbar palette instead of the simple click and then it displays the changes at the bottom? Edited September 25, 2020 by Berzerker Quote Link to comment Share on other sites More sharing options...
Cad64 Posted September 25, 2020 Share Posted September 25, 2020 1 hour ago, Berzerker said: Trying to figure out can I use a toggle button in Toolbar palette instead of the simple click and then it displays the changes at the bottom? The code below will work as a toggle. You will just need to tie it to a button and then one click will set Perspective and Sun Status to 1 and a 2nd click will set them both to 0. It's working for me as a command call from the prompt but I'm not sure how to run it from a button. I guess you will have to figure that out on your end. (defun c:STATUSTOGGLE (/) (if (=(getvar "perspective")1)(command "_perspective" "0")(command "_perspective" "1")) (if (=(getvar "sunstatus")1)(command "_sunstatus" "0")(command "_sunstatus" "1")) (princ) ) Quote Link to comment Share on other sites More sharing options...
