Posted

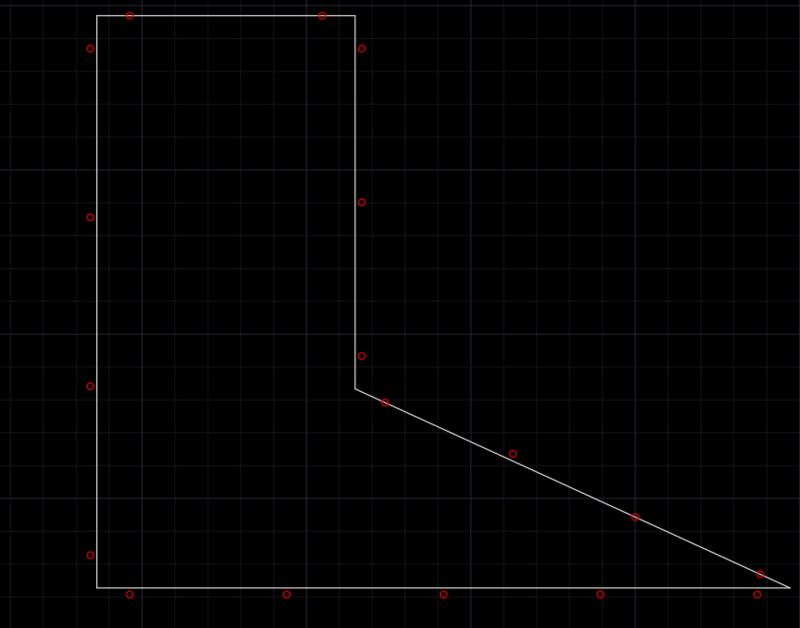

OK, try the attached version. Tested on a completely non-orthoganal polyline.







moveco.lsp

  • Like 1
Posted

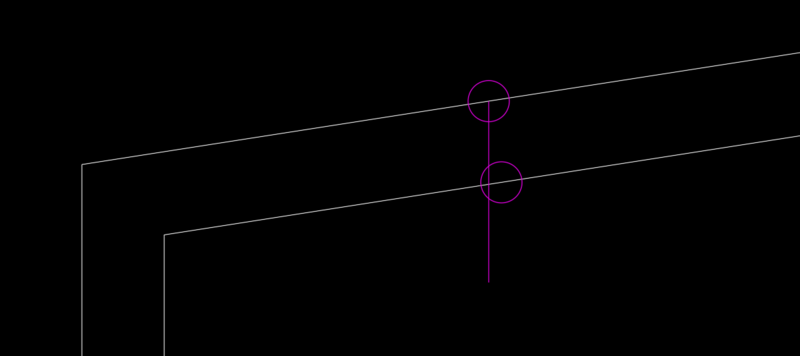

Glad I could help. I tried to calculate the point, but I was a bit brain dead, and the number of conditions kept growing; so it was easier to use the ray and find the closest intersection point.

  • Like 1
Posted (edited)

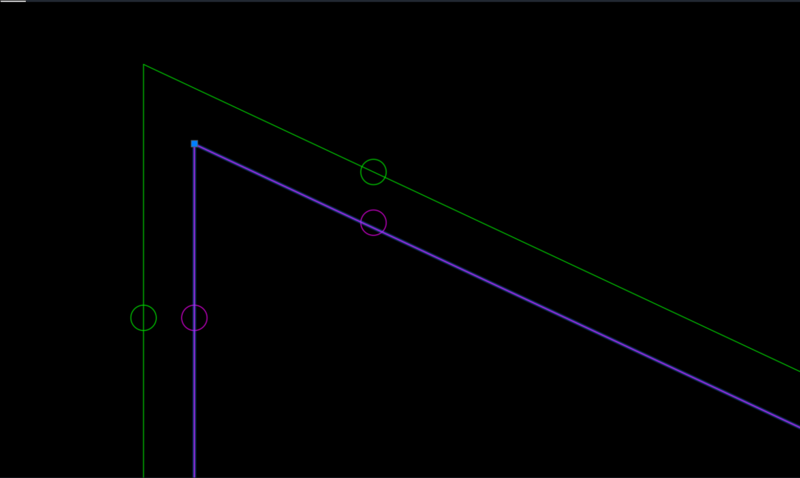

hi  dlanorh



Allow me to



An idea for  Lisp who wrote it



use

function to check if a polyline is counter clockwise

After the line

(setq   c_pt (vlax-curve-getclosestpointto obj i_pt))



And

 (setq angP (angle '(0.0 0.0 0.0) (vlax-curve-getfirstderiv obj (vlax-curve-getparamatpoint obj c_pt))))

;;;                 (setq   ang (angle i_pt c_pt))
                  (setq c_pttt (polar c_pt (+ angP (/ pi 2.)) dst))
                  (entmake (list (cons 0 "CIRCLE") ;***
               (cons 6 "BYLAYER")
               (cons 8 "0")
               (cons 10 c_pttt) ;***
               (cons 39 0.0)
               (cons 40 10) ; radius
               (cons 62 256)
               (cons 210 (list 0.0 0.0 1.0))))



Then delete the circle
Please accept my suggestion











Edited by hosneyalaa
  • Like 1
