measuring a distance along a line

[P_c]

Gday,

Here's my immediate problem, im putting chainage lines off the centerline of a road and i need to find out how far to come around the curve in the road. eg i start a one end of a curve and i need to put a chainage line 5m around the curve.



whats the best way to do that? Help!



Pauly.

[P_c]

It's ok. Dont Panic Pauly, take a deep breath!



I found a way,which included drawing an arc using the center point of the curve on the road then specifying the lenght:)



But if anybody knows an even easier way to do it dont be afraid to jump in!

[eldon]

Use the command MEASURE, and make sure that the POINT is set as a visible mode

[Norts]

OR you can create a block containing the information you wish to show as your chainage. then use measure, but use block, then your distance along the curve you wish to place your chainage at

[Strix]

you could:

OFFSET your curve

DRAW 'POINT' at one end

ARRAY that point

(I think, can't check on this laptop)

[ASMI]

Maybe...



(defun c:cdim(/ cCurve obType lEnt vlaDim pt1
      pt2 dis1 dis2 curMea *error*)

 (vl-load-com)

 (defun *error*(msg)
   (setvar "CMDECHO" 1)
   (if cCurve
     (vla-Highlight cCurve :vlax-false)
     ); end if
   (if vlaDim
     (vla-Delete vlaDim)
     ); end if
   (princ "\n*Cancel* ")
   (princ)
   ); end of *error*

 (if
    (setq cCurve
   (entsel
       "\nSelect curve > ")); end setq
   (progn
     (setq cCurve
     (vlax-ename->vla-object
       (car cCurve))); end setq
     (if
(member
  (setq obType
	 (vla-get-ObjectName cCurve))
  '("AcDbLine" "AcDbPolyline" "AcDb3dPolyline"
    "AcDbSpline" "AcDbArc" "AcDbCircle" "AcDbEllipse")
  ); end member
(progn
  (vla-Highlight cCurve :vlax-true)
  (setvar "OSMODE" 3071)
  (setvar "CMDECHO" 0)
  (setq lEnt(entlast))
  (command "_.dimaligned")
  (princ "\nSelect first extension line point on curve > ")
  (command pause)
  (princ "\nSelect second extension line point on curve > ")
  (command pause)
  (princ "\nSpecify dimension line location")
  (command pause)
  (if
    (not(equal lEnt(entlast)))
    (progn
      (setq vlaDim
	     (vlax-ename->vla-object
	                    (entlast))
	    pt1(vlax-safearray->list
		(vlax-variant-value
		 (vla-get-ExtLine1Point vlaDim)))
	    pt2(vlax-safearray->list
		 (vlax-variant-value
		  (vla-get-ExtLine2Point vlaDim)))
	    ); end setq
      (if
	(and
	  (setq dis1
		 (vlax-curve-GetDistAtPoint cCurve pt1))
	  (setq dis2
		 (vlax-curve-GetDistAtPoint cCurve pt2))
	  ); end and
	(progn
	  (if(< dis2 dis1)
	    (setq curMea(- dis1 dis2))
	    (setq curMea(- dis2 dis1))
	    ); end if
	  (vla-put-TextOverride vlaDim
	    (strcat "L = "(rtos(* curMea
				  (getvar "DIMLFAC"))
			          (getvar "DIMLUNIT")
			          (getvar "DIMTDEC"))))
	  ); end progn
	 (progn
	   (princ "\n>>> One one both points not on curve <<< ")
	   (vla-Delete vlaDim)
	  ); end progn
	); end if
      ); end progn
    ); end if
  ); end progn
(princ "\n>>> Invalid object type! <<<")
); end if
     ); end progn
   (princ "\n>>> Nothing selected! <<< ")
   ); end if
   (if cCurve
     (vla-Highlight cCurve :vlax-false)
     ); end if
 (setvar "CMDECHO" 1)
 (princ)
 ); end of c:cdim

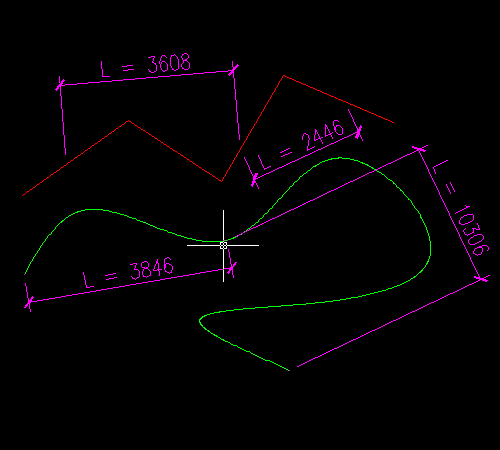

(princ "\nType CDIM for curve dimension ")

[JANINAY]

using array is the best option to place points and label nearby the polyline.

[RobDraw]

Thank you for that. Did you realize that this thread is almost 8 years old?
