TRIM THEN JOIN

[LITOKARDO_BC]

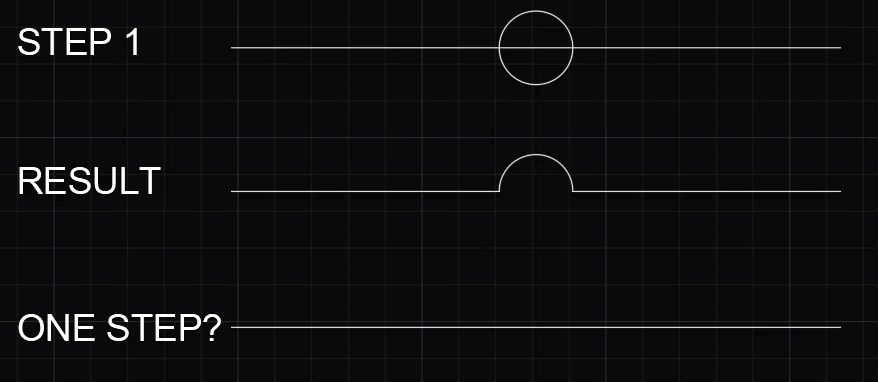

Good morning to all the communication, you could help with a necessary LISP to trim then join. Send example. Thank you

EXAMPLE TRIM TO JOIN.dwg

[LITOKARDO_BC]

2 hours ago, LITOKARDO_BC said:



Good morning to all the communication, you could help with a necessary LISP to trim then join. Send example. Thank you

EXAMPLE TRIM TO JOIN.dwg 75.16 kB · 0 downloads

(defun c:C6()
(setq PT (getpoint "Center"))
(command "circle" PT "0.06")
(command "trim")
)

[ronjonp]

Try this perhaps.

(defun c:hop (/ a b d e ent i o p1 p2 p3)
  ;; RJP » 2020-02-19
  ;; Set below for hop size
  (setq a 0.5)
  (while (setq ent (entsel "\nSelect polyline to add hop: "))
    (cond
      ((= (cdr (assoc 0 (entget (setq e (car ent))))) "LWPOLYLINE")
       (setq p1 (vlax-curve-getclosestpointto e (trans (cadr ent) 1 0)))
       (setq i (fix (vlax-curve-getparamatpoint e p1)))
       (setq b (vla-getbulge (setq o (vlax-ename->vla-object e)) i))
       (setq d (vlax-curve-getdistatpoint e p1))
       (vlax-put (vlax-ename->vla-object (tblobjname "layer" (vla-get-layer o))) 'lock 0)
       (if (and	(setq p2 (vlax-curve-getpointatdist e (+ d a)))
		(setq p3 (vlax-curve-getpointatdist e (- d a)))
	   )
	 (cond
	   ((= (fix (vlax-curve-getparamatpoint e p2)) (fix (vlax-curve-getparamatpoint e p3)) i)
	    (vlax-invoke o 'addvertex (setq i (1+ i)) (mapcar '+ p2 '(0 0)))
	    (vlax-invoke o 'addvertex i (mapcar '+ p3 '(0 0)))
	    (vla-setbulge o i (if (< (angle '(0 0 0) p2) (angle '(0 0 0) p3)) -1. 1.)
	    )
	   )
	   ((princ "\nVertex overlap! Pick another point..."))
	 )
       )
      )
      (princ "\nObject needs to be a lwpolyline...")
    )
  )
  (princ)
)



[LITOKARDO_BC]

41 minutes ago, ronjonp said:

Try this perhaps.

(defun c:hop (/ a b d e ent i o p1 p2 p3)
  ;; RJP » 2020-02-19
  ;; Set below for hop size
  (setq a 0.5)
  (while (setq ent (entsel "\nSelect polyline to add hop: "))
    (cond
      ((= (cdr (assoc 0 (entget (setq e (car ent))))) "LWPOLYLINE")
       (setq p1 (vlax-curve-getclosestpointto e (trans (cadr ent) 1 0)))
       (setq i (fix (vlax-curve-getparamatpoint e p1)))
       (setq b (vla-getbulge (setq o (vlax-ename->vla-object e)) i))
       (setq d (vlax-curve-getdistatpoint e p1))
       (vlax-put (vlax-ename->vla-object (tblobjname "layer" (vla-get-layer o))) 'lock 0)
       (if (and	(setq p2 (vlax-curve-getpointatdist e (+ d a)))
		(setq p3 (vlax-curve-getpointatdist e (- d a)))
	   )
	 (cond
	   ((= (fix (vlax-curve-getparamatpoint e p2)) (fix (vlax-curve-getparamatpoint e p3)) i)
	    (vlax-invoke o 'addvertex (setq i (1+ i)) (mapcar '+ p2 '(0 0)))
	    (vlax-invoke o 'addvertex i (mapcar '+ p3 '(0 0)))
	    (vla-setbulge o i (if (< (angle '(0 0 0) p2) (angle '(0 0 0) p3)) -1. 1.)
	    )
	   )
	   ((princ "\nVertex overlap! Pick another point..."))
	 )
       )
      )
      (princ "\nObject needs to be a lwpolyline...")
    )
  )
  (princ)
)









https://drive.google.com/file/d/126bvy7_lAzTiZ81TAvlJb2Cx24vCLupH/view?usp=sharing

[LITOKARDO_BC]

THANK YOU FOR THE SOON ANSWER, IT IS POSSIBLE TO INDICATE THE ARC DIAMETER, AND PRESISE THE POINT OF INTERSECTION. SEND A GIF BY GOOGLE DRIVE. THANKShttps://drive.google.com/file/d/126bvy7_lAzTiZ81TAvlJb2Cx24vCLupH/view?usp=sharing   Quote Edit

Quote





Edited February 19, 2020 by LITOKARDO_BC

[ronjonp]

Try this to set the hop size .. I don't have time at the moment to do the precision for you.

(defun c:hop (/ a b d e ent i o p1 p2 p3)
  ;; RJP » 2020-02-19
  ;; Set below for hop size
  (setq	a (/ (cond ((setq a (getdist "\nEnter hop size: ")))
		   (1)
	     )
	     2.
	  )
  )
  (while (setq ent (entsel "\nSelect polyline to add hop: "))
    (cond
      ((= (cdr (assoc 0 (entget (setq e (car ent))))) "LWPOLYLINE")
       (setq p1 (vlax-curve-getclosestpointto e (trans (cadr ent) 1 0)))
       (setq i (fix (vlax-curve-getparamatpoint e p1)))
       (setq b (vla-getbulge (setq o (vlax-ename->vla-object e)) i))
       (setq d (vlax-curve-getdistatpoint e p1))
       (vlax-put (vlax-ename->vla-object (tblobjname "layer" (vla-get-layer o))) 'lock 0)
       (if (and	(setq p2 (vlax-curve-getpointatdist e (+ d a)))
		(setq p3 (vlax-curve-getpointatdist e (- d a)))
	   )
	 (cond
	   ((= (fix (vlax-curve-getparamatpoint e p2)) (fix (vlax-curve-getparamatpoint e p3)) i)
	    (vlax-invoke o 'addvertex (setq i (1+ i)) (mapcar '+ p2 '(0 0)))
	    (vlax-invoke o 'addvertex i (mapcar '+ p3 '(0 0)))
	    (vla-setbulge
	      o
	      i
	      (if (< (angle '(0 0 0) p2) (angle '(0 0 0) p3))
		-1.
		1.
	      )
	    )
	   )
	   ((princ "\nVertex overlap! Pick another point..."))
	 )
       )
      )
      (princ "\nObject needs to be a lwpolyline...")
    )
  )
  (princ)
)



[LITOKARDO_BC]

OK NO PROBLEM. THANKS A LOT. IT WAS A LOT OF HELP.
