help for small change in big lisp routine required

[shortkrish]

 Dear all,



I have lisp dcl and data files working together to draw steel sections.



I have done all the sections modified to indian standards originally it was written for british standards and it is free of copy rights. Since the author has changed to catia 3 dacades before.



Please find attached images of error, dialog box and lisp files,data files and dcl files. This may looks like a big job. If any lisp expert available he can do it seconds. As I have done whole lot of things with minimum lisp knowledge.



Thanks



Krish



stl_ipn.dat stl_rsj.dat stl_deflt.dat STL.LSP stl_rtee.dat stl_ub.dat stl_rhs.dat stl_shs.dat stl_uc.dat stl_ursa.dat stl_ersa.dat stl_chs.dat stl_rsc.dat stl_pfc.dat stl_ipe.dat rec.dwg stl_passwd.dat stl_pipe.dat stl_steeub.dat stl_steeuc.dat stl_u.dat stl_ubp.dat stl_upn.dat stl_wash.dat README.TXT stl.dcl stl.slb stl_cap.dat stl_csk.dat stl_cub.dat stl_cuc.dat stl_hd.dat stl_he.dat stl_hex.dat stl_hl.dat stl_hp.dat stl_hx.dat

[roy437]

I need indian standard  and british standard for IPN 250. There could be a difference between the two standards.

[marko_ribar]

Grace, God, you attached so much files to your post... Do you know you could use zip and pack them all in single file? Even if someone tries to help you I believe this is too much from you asking someone to download that much files...

[dlanorh]

15 hours ago, shortkrish said:

 Dear all,



I have lisp dcl and data files working together to draw steel sections.



I have done all the sections modified to indian standards originally it was written for british standards and it is free of copy rights. Since the author has changed to catia 3 dacades before.



Please find attached images of error, dialog box and lisp files,data files and dcl files. This may looks like a big job. If any lisp expert available he can do it seconds. As I have done whole lot of things with minimum lisp knowledge.



Thanks



Krish







What is the "ERROR", the label on the button? or the references to "UK" and "Euro" ? What should replace them?

[BIGAL]

Check forums/Autodesk and Theswamp before any one else answers. Was asked before I know responded.



Need to replace DAT files and maybe update labels in dcl. Or add a new collection. Look at file from other post.

stl.zip

Edited December 21, 2019 by BIGAL

[Roy_043]

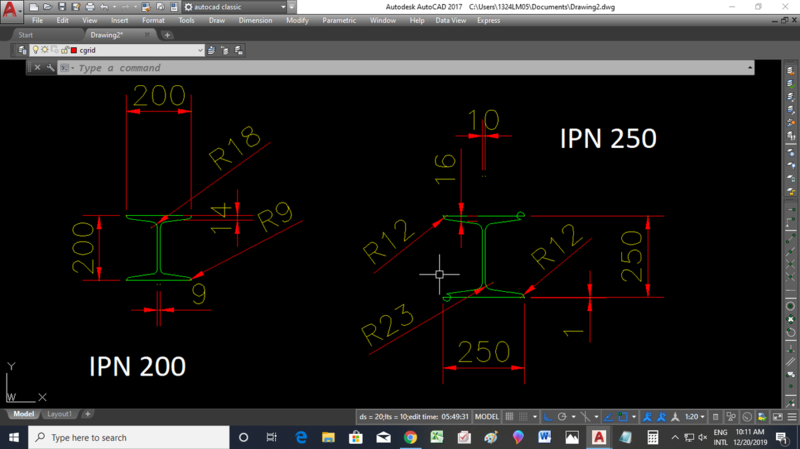

For the error I think you should look at the IPN 250 profile in OP's 2nd image. The flanges have an incorrect 'bulge'.

[dlanorh]

1 hour ago, Roy_043 said:

For the error I think you should look at the IPN 250 profile in OP's 2nd image. The flanges have an incorrect 'bulge'.



Thanks @Roy_043 Totally missed that.
