Calculate x,y/x,y,z for a 2d/3d curve

[roy437]

9 hours ago, lrm said:

If you are concerned about the speed of execution one thing you could easily change is to remove the write statements and instead store the results in an array and then do one write to a file at the end of the program.  The jumping between lisp execution and file writing is time consuming. It's better to limit how often that is done.



It would be interesting to see the average of how many iterations are needed to converge to a solution in the bisection loop for each value of x.



Usually a Newton Raphson numerical algorithm will converge faster than the simple bisection method but I don't see how to use it efficiently in this case.

Thanks Irm,

Here's my code, where I used the Newton Raphson method, execution time for 10000 points = 0.0 seconds  and for bisection method time = 10 seconds.

I use curves C(x(t), y(t), z(t)), where x(t) is  strictly increasing function.

Also, thanks marko-ribar, where I replaced (setq curveObj (vlax-ename-> vla-object ent))  with (setq curveObj ent).

In conclusion, the code is very fast.

; return time in seconds
(defun timer ( / s )
  (setq s (getvar "DATE"))
  (* 86400.0 (- s (fix s)))
)

(defun c:fx ( / c c0 curve-obj delim dx eps fil name_file nz p param_e param_s pe ps p_deriv t1 u x0 x1 x2 xf xff xi )
;
;  Input
;----------------------------------------------------------------------------------------------------------
  (setq
          eps 0.000001
        delim " "
           nz 6    ; number of decimals
  )
  (if (null *r*)
    (setq *r* 1.0)
  )
  (initget 6)
  (if (setq dx (getreal (strcat "\nIncrement dx < " (rtos *r*) " >: ")))
      (setq *r* (* 1.0 dx))
      (setq dx (* 1.0 *r*))
  )
  (setq
         name_file (getstring "\nFile out : ")
         curve-Obj (car (entsel))
               fil (open (strcat (getvar "DWGPREFIX") name_file) "w")
           param_s (vlax-curve-getStartParam curve-Obj)
           param_e (vlax-curve-getEndParam   curve-Obj)
                ps (vlax-curve-getStartPoint curve-Obj)
                pe (vlax-curve-getEndPoint   curve-Obj)
                x1 (car ps)
                x2 (car pe)
  )
  (setq xi (getstring "\nEnter(for ends of curve) or val. xi = "))
  (if (= xi "")
    (if (< x1 x2)
      (setq xi x1  xf x2)
      (setq xi x2  xf x1)
    )
    (setq xi (atof xi)  xf (atof (getstring "\nxf = ")))
  )
;    End input
;----------------------------------------------------------------------------------------------------------
  (setq t1 (timer))
  (setq x0 xi xff (+ xf eps))
  (setq
  	     c0 (* 0.5 (+ param_s param_e))
  	      c c0
  	      u 10000.0
  )
  (while (< x0 xff)
;                   Newton Raphson Method
;-----------------------------------------------------
    (while (> (abs u) eps)
      (setq
                  p (vlax-curve-getPointAtParam curve-Obj c)
            p_deriv (vlax-curve-getFirstDeriv curve-obj c)
                  u (/ (- (car p) x0) (car p_deriv))
                  c (- c u)
      )
    )
;-----------------------------------------------------
    (write-line (strcat (rtos x0 2 nz) delim (rtos (cadr p) 2 nz) delim (rtos (caddr p) 2 nz)) fil)
    (setq x0 (+ x0 dx)  c c0  u 10000.0)
  )
  (close fil)
  (princ "\n")
  (princ (- (timer) t1))
  (princ "\nOK")
  (princ)
)



[marko_ribar]

I am wondering are those methods any good for HELIX curves ??

[roy437]

22 minutes ago, marko_ribar said:

I am wondering are those methods any good for HELIX curves ??



No, because x=x(t) is not  strictly increasing function, for helix curve H(x(t),y(t),z(t)).

[roy437]

31 minutes ago, marko_ribar said:

I am wondering are those methods any good for HELIX curves ??



Come back, only if x=x(t) is strictly increasing function over the studied range.

[BIGAL]

Hi roy437 can you post a dwg it would be interesting to see the different methods how long they take even my dumb method one.

[roy437]

7 hours ago, BIGAL said:

Hi roy437 can you post a dwg it would be interesting to see the different methods how long they take even my dumb method one.

Hi Bigal,

There is a "scr" file. With dx=0.003 result 10613 points, with Newton Raphson time = 0.0 sec. Computer i7-3770, 16GB ram, win 10.



spline
1.929575,0.526062,3
2.929575,0.828203,3.686791
3.929575,1.16478,4.316021
4.929575,1.49978,4.834386
5.929575,1.800282,5.196257
6.929575,2.041652,5.371278
7.929575,2.231827,5.382278
8.929575,2.391255,5.270526
9.929575,2.537813,5.07124
10.929575,2.687656,4.815413
11.929575,2.85593,4.53127
12.929575,3.05736,4.245416
13.929575,3.306661,3.983735
14.929575,3.611157,3.76734
15.929575,3.964756,3.609257
16.929575,4.360148,3.522367
17.929575,4.79007,3.520557
18.929575,5.247164,3.619034
19.929575,5.723369,3.833543
20.929575,6.192307,4.13517
21.929575,6.603904,4.432684
22.929575,6.909234,4.631791
23.929575,7.087666,4.685975
24.929575,7.175662,4.651425
25.929575,7.214014,4.59443
26.929575,7.241124,4.574701
27.929575,7.294542,4.607421
28.929575,7.412062,4.680958
29.929575,7.631974,4.782963
30.929575,7.990371,4.900991
31.929575,8.454167,5.027449
32.929575,8.911867,5.160353
33.767556,9.206093,5.275454



[hanhphuc]

On 12/15/2019 at 10:19 PM, marko_ribar said:

I am wondering are those methods any good for HELIX curves ??

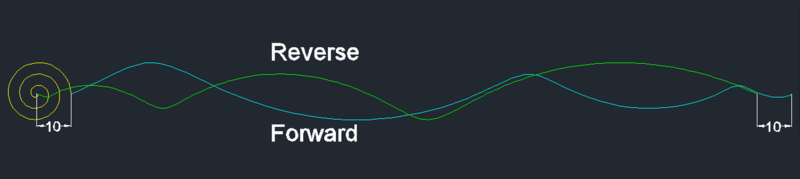

maybe 'stretch' rescale x-direction? something like a wave graph? Just $0.02 idea sorry if not practical





2D illustration purpose only, it does not present actual scale of wave 'frequency' pattern

Edited December 16, 2019 by hanhphuc
new img & comments

[BIGAL]

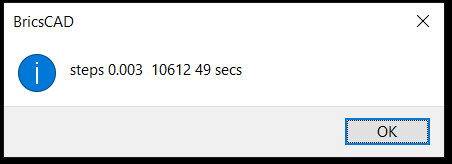

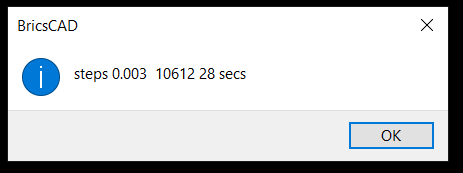

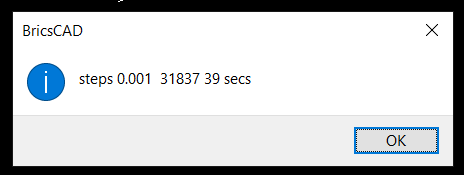

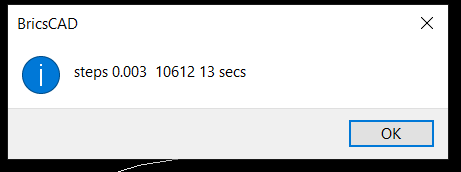

Using roy script even though its a bit slow 10000+ steps still workable did not hit minutes. Might shave a few here and there see images.





Used entmake line





Vla-delete entlast



Not worth the time of trying to shave any more off.



For fun

Edited December 17, 2019 by BIGAL

[roy437]

15 hours ago, BIGAL said:

Using roy script even though its a bit slow 10000+ steps still workable did not hit minutes. Might shave a few here and there see images.





Used entmake line





Vla-delete entlast



Not worth the time of trying to shave any more off.



For fun







With Newton-Raphson method.

[BIGAL]

Yeah a bit of a difference I always knew the trim method would not be fast. Just did it for the fun.
