Set MLEADER ArrowSymbol by lisp

[pkenewell]

1 hour ago, ronjonp said:

There is also this:

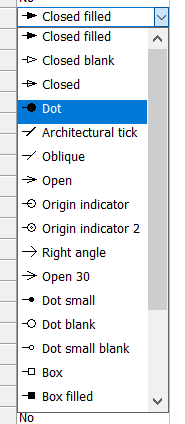

FYI - you can also search for "ArrowheadType Property (ActiveX)" in AutoCAD help. It will give you all the enum variables, which you can use rather than the integers.

[Aftertouch]

On 12/11/2019 at 6:08 PM, ronjonp said:

Quick test and setting the DIMBLK variable as pointed out by @eldon imports the appropriate block. Maybe something like this:

(defun _importarrowheadblock (n)
  (or (tblobjname "block" n) (= 'str (type (vl-catch-all-apply 'setvar (list "DIMBLK" n)))))
)
(if (_importarrowheadblock "_BOXFILLED")
  (vla-put-arrowsymbol newleaderstyle "_BOXFILLED")
)





Hello All,



Thanks all for thinking with me,

Happy so see im not the only one strugling with this one.

Above solution solved my problem.

[EYNLLIB]

On 12/11/2019 at 4:04 AM, eldon said:

Look at the system variable DIMBLK









what program allows you to see this?

[EYNLLIB]

On 12/11/2019 at 4:04 AM, eldon said:

Look at the system variable DIMBLK









what program allows you to see this?

[EYNLLIB]

On 12/11/2019 at 4:04 AM, eldon said:

Look at the system variable DIMBLK









what program allows you to see this?

[EYNLLIB]

On 12/12/2019 at 8:33 AM, ronjonp said:

There is also this:

what program allows you to see this?

[Aftertouch]

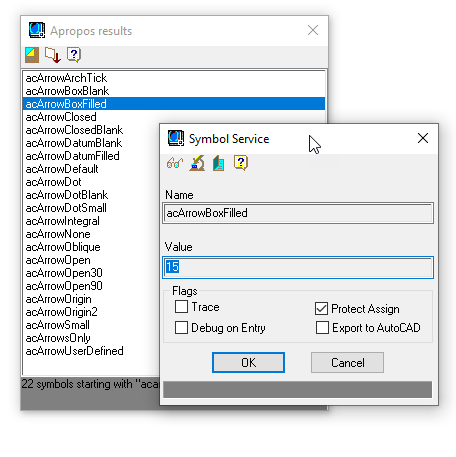

Command: _.sysvdlg

From the Express tools.

[EYNLLIB]

Just now, Aftertouch said:

Command: _.sysvdlg

From the Express tools.





Thank you,



Sorry for the multiple replies I think my internet went wild

[Aftertouch]

@EYNLLIB thy has been forgiven.
