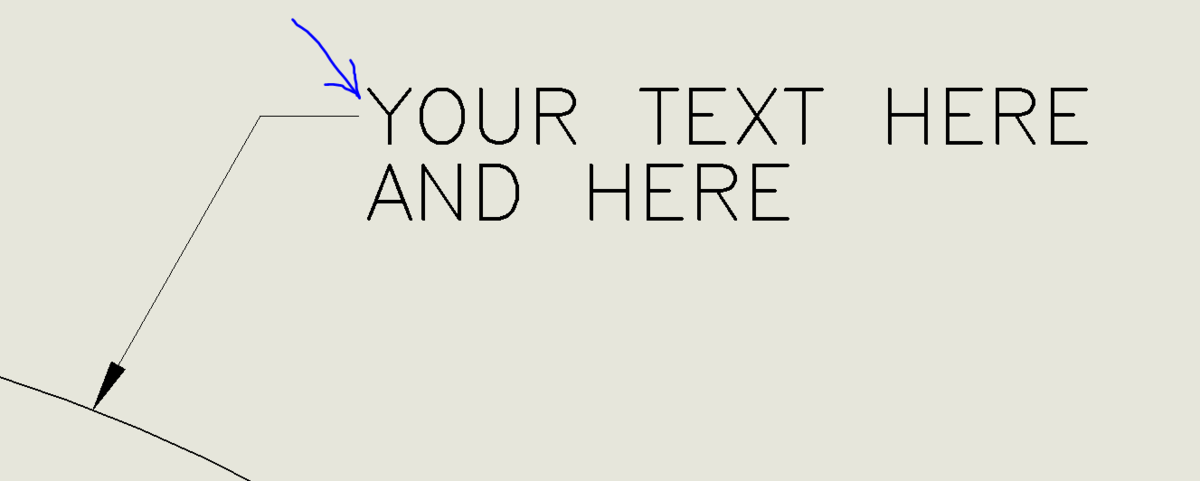

ILoveMadoka Posted October 28, 2019 Share Posted October 28, 2019 Is there a setting to adjust or increase this gap? Solidworks 2018 Font = swromans Quote Link to comment Share on other sites More sharing options...
ILoveMadoka Posted October 31, 2019 Author Share Posted October 31, 2019 Do any of the settings control the spacing between the end of the leader and the start of the text? Solidworks 2018 Quote Link to comment Share on other sites More sharing options...
SLW210 Posted November 1, 2019 Share Posted November 1, 2019 Try Document Properties>Dimensions should be something for Gap Size somewhere. Quote Link to comment Share on other sites More sharing options...
ILoveMadoka Posted November 14, 2019 Author Share Posted November 14, 2019 I just dug through all the settings and I cannot find that spacing anywhere. Arrow size, arrow length, spacing between dimension lines, yes. That break gap? I don't see it.. Anyone? Quote Link to comment Share on other sites More sharing options...
SLW210 Posted November 15, 2019 Share Posted November 15, 2019 Used to just add a space in front and back of the dimension, I thought they had fixed that problem. Quote Link to comment Share on other sites More sharing options...
ILoveMadoka Posted January 6, 2021 Author Share Posted January 6, 2021 Jan 6 2021 Is there a setting in solidworks to adjust this gap distance? Quote Link to comment Share on other sites More sharing options...
BIGAL Posted January 7, 2021 Share Posted January 7, 2021 For autocad (vla-put-LandingGap obj 10) may be something in style settings. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted January 7, 2021 Share Posted January 7, 2021 AFAIK it still hasn't been fixed. You might try a different Font if possible, IIRC it was Font related to some extent. Did you try adding the space front and back? You might try the Solidworks Forum. Quote Link to comment Share on other sites More sharing options...
