manmenman Posted June 26, 2019 Posted June 26, 2019 How to draw a compound circular curve when the drawing have two fixed tangent points and tangent bearing, however one radius is unknow. Quote

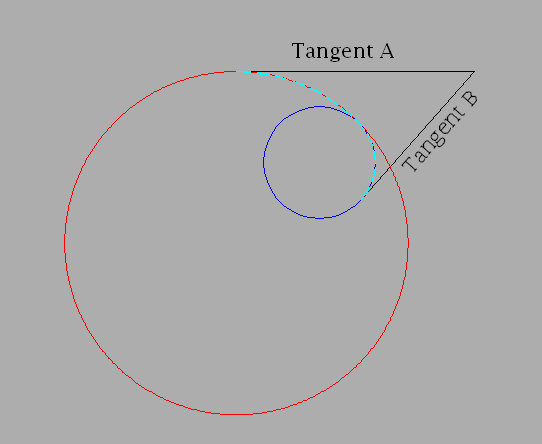

eldon Posted June 26, 2019 Posted June 26, 2019 (edited) I find it easier to draw circles and then trim afterwards. So in this case, draw the two tangents, and the known circle (red circle in picture). Then the blue circle is drawn by using three points, which are Tangent to red circle, Tangent to tangent B and Endpoint of Tangent B. The compound curve is the dashed cyan line. Edited June 26, 2019 by eldon Quote
CyberAngel Posted June 26, 2019 Posted June 26, 2019 Ninja'd! I would never have thought of using two TAN snaps and a point. Quote
ammobake Posted June 27, 2019 Posted June 27, 2019 Just thinking about the geometry like this is why cad is cool. When you think about it, this shape is basically representative of a gravity assist. ChriS Quote
