Connecting endpoints of vertical lines with polyline

[drdownload18]

Can somebody help me create lisp wich will create POLYLINE by connecting endpoints of vertical lines? (1 polyline with vertex on each endpoint of selected lines) Tnx


[Lee Mac]

Quick one:

(defun c:test ( / i l s x )
    (if (setq s (ssget '((0 . "LINE"))))
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      x (entget (ssname s i))
                      l (cons (cons 10 (cdr (assoc (if (< (caddr (assoc 10 x)) (caddr (assoc 11 x))) 11 10) x))) l)
                )
            )
            (entmake
                (append
                    (list
                       '(000 . "LWPOLYLINE")
                       '(100 . "AcDbEntity")
                       '(100 . "AcDbPolyline")
                        (cons 90 (length l))
                       '(070 . 0)
                    )
                    (vl-sort l '(lambda ( a b ) (< (cadr a) (cadr b))))
                )
            )
        )
    )
    (princ)
)

Chooses line end point with greatest y-coordinate; assumes 2D & WCS.

Edited April 9, 2019 by Lee Mac

[drdownload18]

thank you very much, thats' what i needed

[BIGAL]

Quote

Chooses line end point with greatest y-coordinate; assumes 2D & WCS.

Lee any reason to not use ssget "F" then  just get max y of each line in order.



Just drag over lines, it sort of just makes sense to me to use that type of selection method given task.



(defun c:test ( / i l s x pt1 pt2)
(setq pt1 (getpoint "pick 1st point before lines"))
(setq pt2 (getpoint pt1 "pick second point past lines"))
    (if (setq s (ssget "F" (list pt1 pt2) '((0 . "LINE"))))
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      x (entget (ssname s i))
                      l (cons (cons 10 (cdr (assoc (if (< (caddr (assoc 10 x)) (caddr (assoc 11 x))) 11 10) x))) l)
                )
            )
            (entmake
                (append
                    (list
                       '(000 . "LWPOLYLINE")
                       '(100 . "AcDbEntity")
                       '(100 . "AcDbPolyline")
                        (cons 90 (length l))
                       '(070 . 0)
                    )
                     l
                )
            )
        )
    )
    (princ)
)



Nice entmake method, using length l

Edited April 10, 2019 by BIGAL

[Lee Mac]

6 hours ago, BIGAL said:

Lee any reason to not use ssget "F" then  just get max y of each line in order.



Just drag over lines, it sort of just makes sense to me to use that type of selection method given task.



With the original code the use may still use a Fence selection (by typing "F" at the prompt), but may also use any other standard selection method to achieve the same result; I saw no reason to force the user to use a Fence selection, which may not necessarily be suitable in all circumstances.

[BIGAL]

Lee your right did not think about just pressing F so many people are not aware of the basic selection methods available. WP being another usefull.



I took it for granted this is for probbably drawing long sections or cross sections.

Edited April 11, 2019 by BIGAL

[Lee Mac]

No worries

[hosyn]

On 4/10/2019 at 2:39 AM, Lee Mac said:

Quick one:

(defun c:test ( / i l s x )
    (if (setq s (ssget '((0 . "LINE"))))
        (progn
            (repeat (setq i (sslength s))
                (setq i (1- i)
                      x (entget (ssname s i))
                      l (cons (cons 10 (cdr (assoc (if (< (caddr (assoc 10 x)) (caddr (assoc 11 x))) 11 10) x))) l)
                )
            )
            (entmake
                (append
                    (list
                       '(000 . "LWPOLYLINE")
                       '(100 . "AcDbEntity")
                       '(100 . "AcDbPolyline")
                        (cons 90 (length l))
                       '(070 . 0)
                    )
                    (vl-sort l '(lambda ( a b ) (< (cadr a) (cadr b))))
                )
            )
        )
    )
    (princ)
)

Chooses line end point with greatest y-coordinate; assumes 2D & WCS.

HI GUYS

How we can modified it for doing this for pline ??

[Lee Mac]

20 hours ago, hosyn said:

HI GUYS

How we can modified it for doing this for pline ??



Do you mean if the vertical lines are two-vertex 2D polylines?

[hosyn]

18 hours ago, Lee Mac said:



Do you mean if the vertical lines are two-vertex 2D polylines?

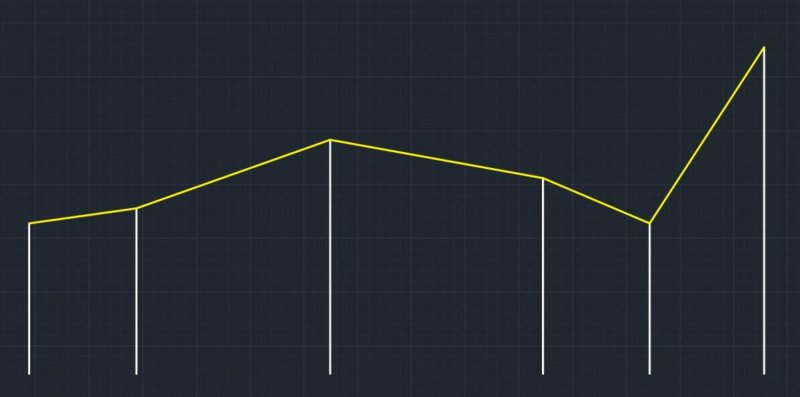

No, just i want modify it for connect two endpoint of any pline indeed following :

Edited July 21, 2021 by hosyn

[hosyn]

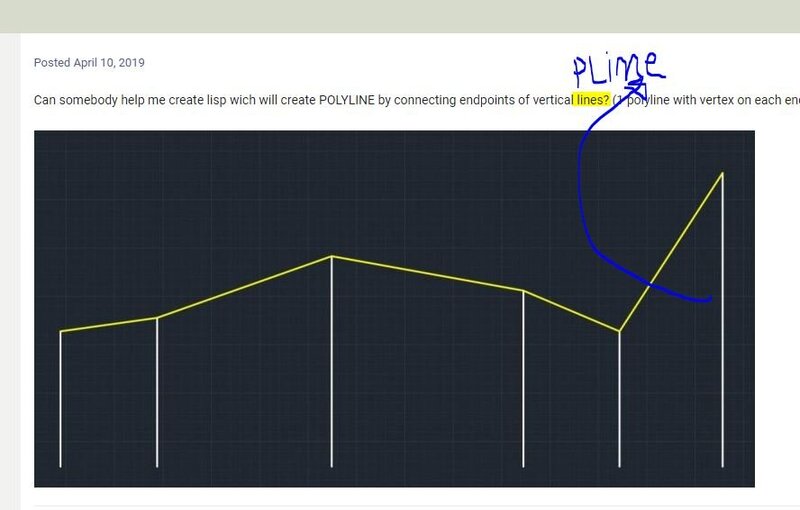

This is a totaly thing , my mean in this ::
