Current Map to DWG

mstg007

By mstg007
in Map 3D

 Share

Recommended Posts

mstg007 Contributor

mstg007

Posted
Posted

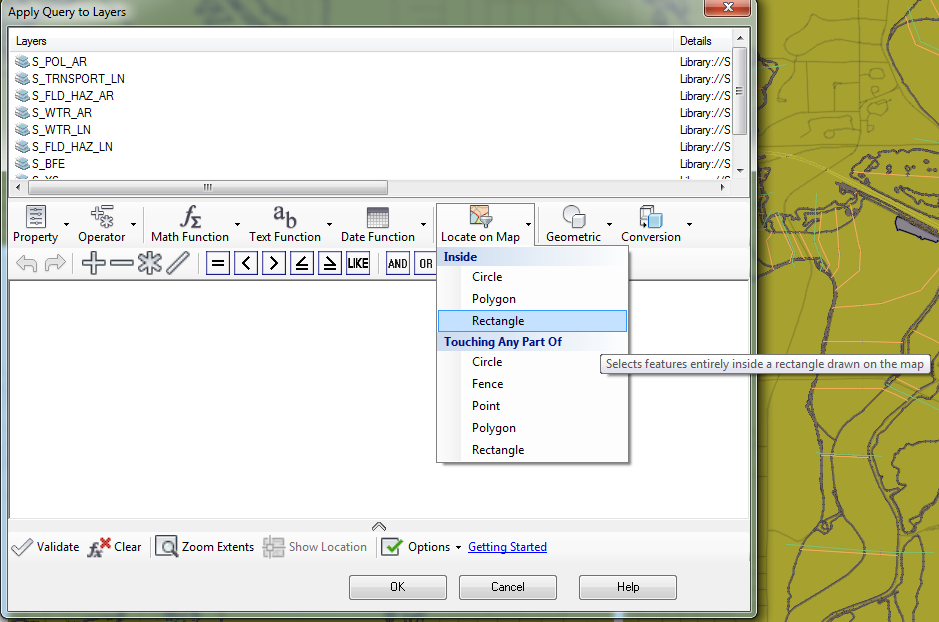

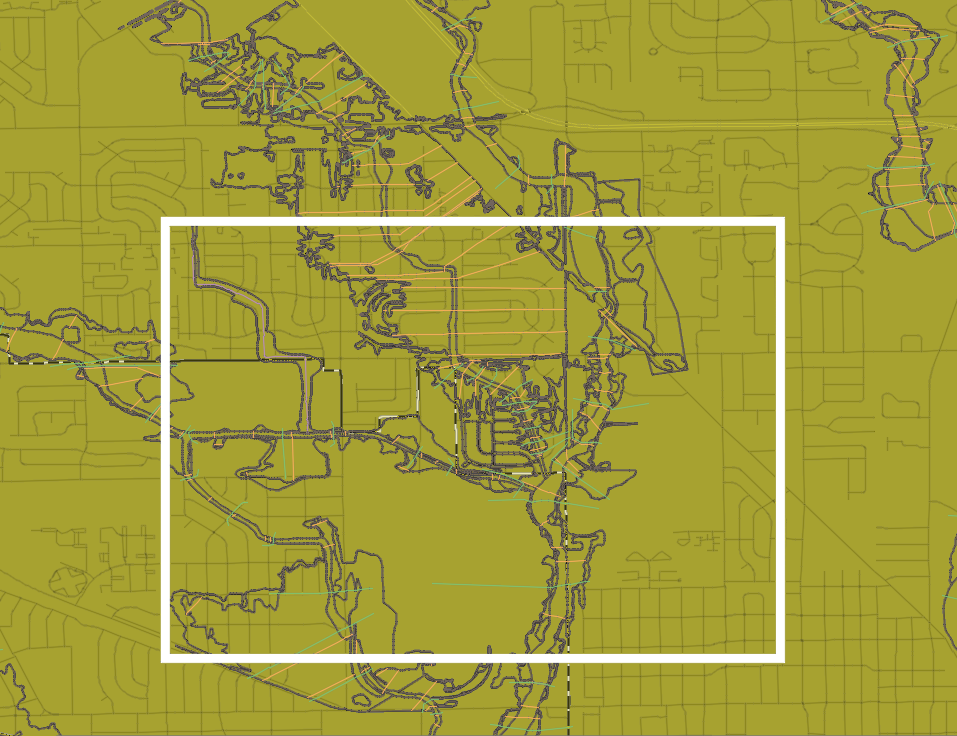

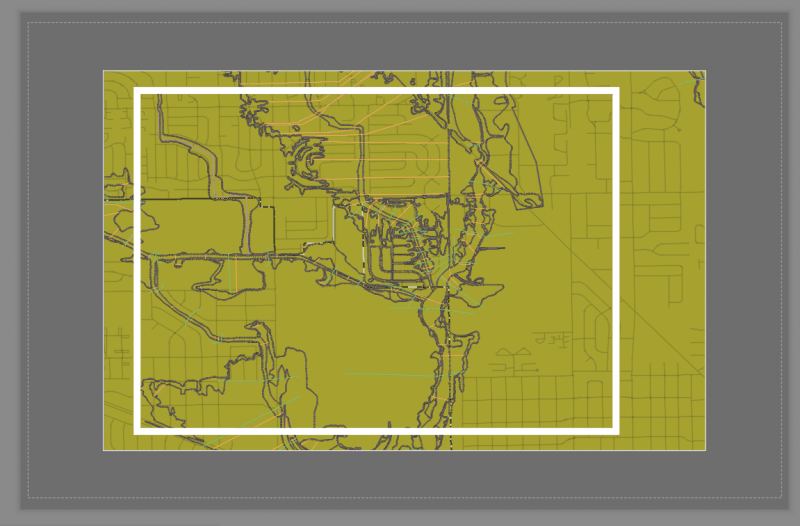

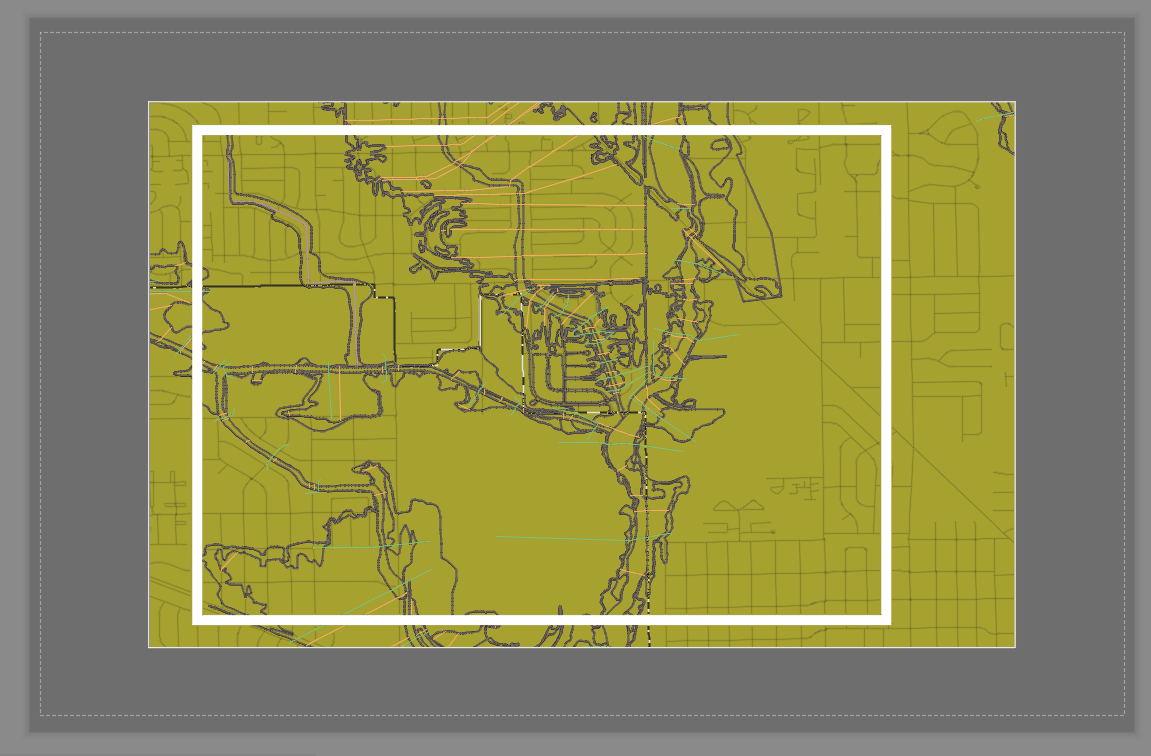

I am trying to figure out how to use the "Current Map to DWG" command within MAP. The data is attached using SDF files. I have my layout tab and viewport they way I would like for the file to be exported / converted to CAD. However, it exports everything within Modelspacel. Is there a way I can export just whats within my viewport only? I have tried to play around with the Query but I cannot get the result I am looking for. lol. All I would like to do is "clip" it, and export just the viewport if possible.



Thanks for any direction!

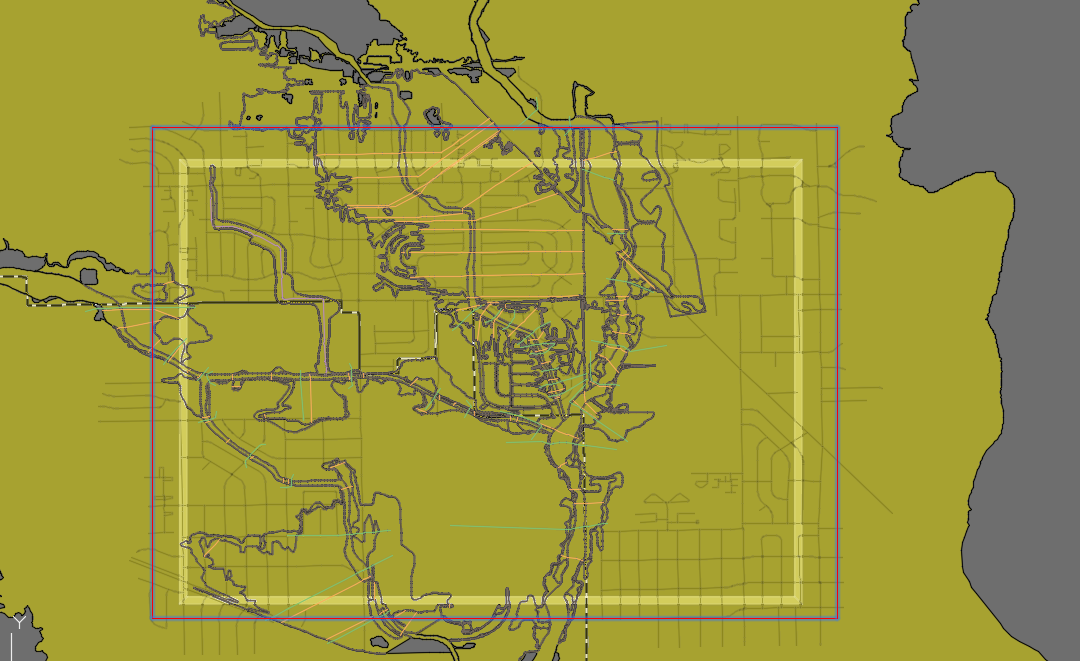

Query Clip.PNG
