Finding Dimensions on a drawing

eung
 Share

Recommended Posts

eung Newbie

eung

Posted
Posted

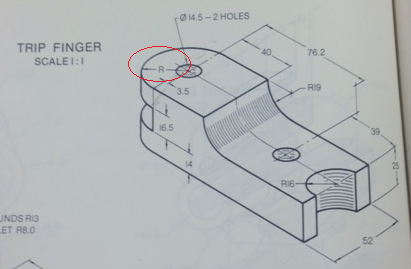

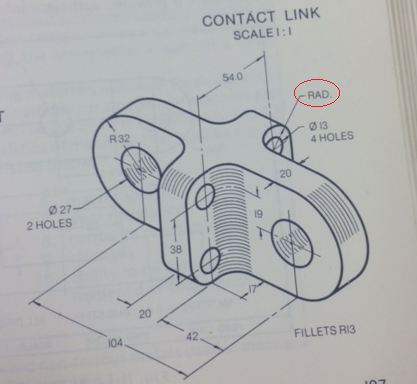

I'd like to know where I can find these two dimensions (the ones circled in red) for a 3D modelling assignment I'm supposed to do. I've been stumped for the past few classes because the models don't look correct.



Thanks in advance!
