Bill Tillman Posted September 4, 2018 Posted September 4, 2018 I have a rectangular shaped hatch, it's for a 1/4" tall by 4" long space. I was wanting to edit it's boundaries but what I see when I select it is only a single blue dot grip in the middle of the hatch. There is nothing at the perimeters like I am expecting. Quote
Cad64 Posted September 4, 2018 Posted September 4, 2018 A single grip means the hatch is associative. If you stretch the rectangle the hatch will move and stretch with the boundary. If the hatch has grips at all the corners then it is not associative. If you stretch the rectangle, the hatch will not move and stretch with the boundary. If you want to see all the grips at the corners, select the hatch and then go into your Properties palette, in the "Pattern" section, and set "Associative" to No. Quote
SLW210 Posted September 5, 2018 Posted September 5, 2018 I get all grips on hatches Associative or not. Can you post the drawing? Is the hatch at 0 elevation? Quote

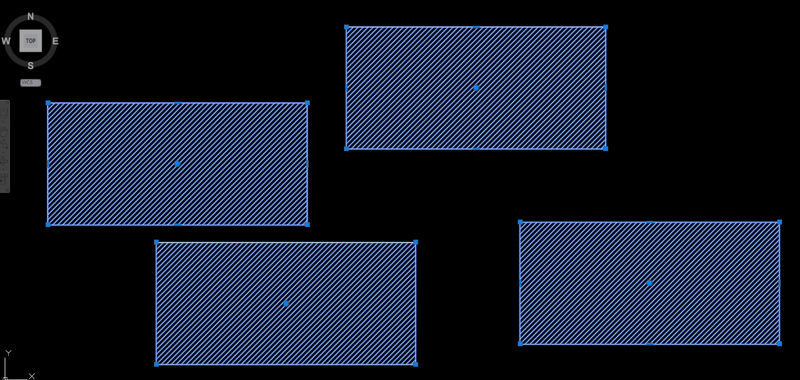

Cad64 Posted September 5, 2018 Posted September 5, 2018 Here's what I get. As you can see, the associative hatch has one grip in the center and the non-associative hatch has grips on all corners. Maybe there's a setting that controls grip display? Quote
Metachik Posted September 21, 2018 Posted September 21, 2018 It sounds like you want to change the hatch boundaries, but not the rectangle, so you've got to lose the hatches association with the rectangle... click on the hatch > right click > hatch edit > untick associative Quote
Macruairidh Posted January 19 Posted January 19 I have autocad 2018 and my grips do not show up on hatch patterns. Associative is off but still no hatch grips Quote
SLW210 Posted January 19 Posted January 19 Try this Hatch and boundary objects are always selected together in AutoCAD products (autodesk.com) Also check GRIPMULTIFUNCTIONAL value. Try posting a drawing if possible. Quote

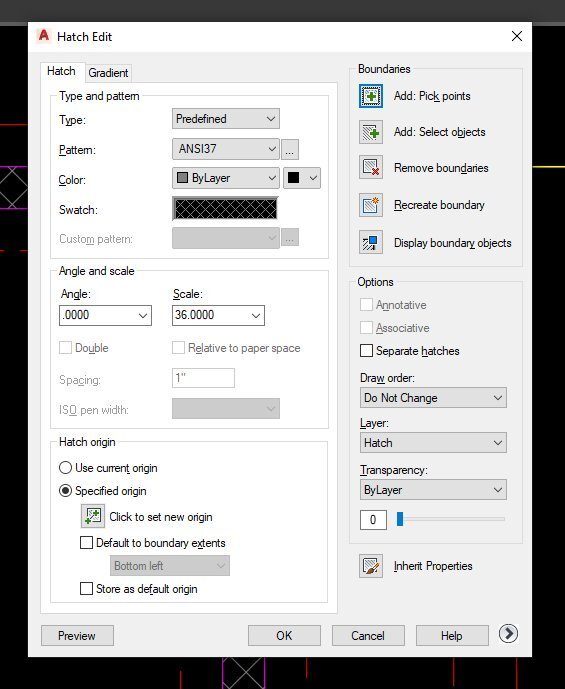

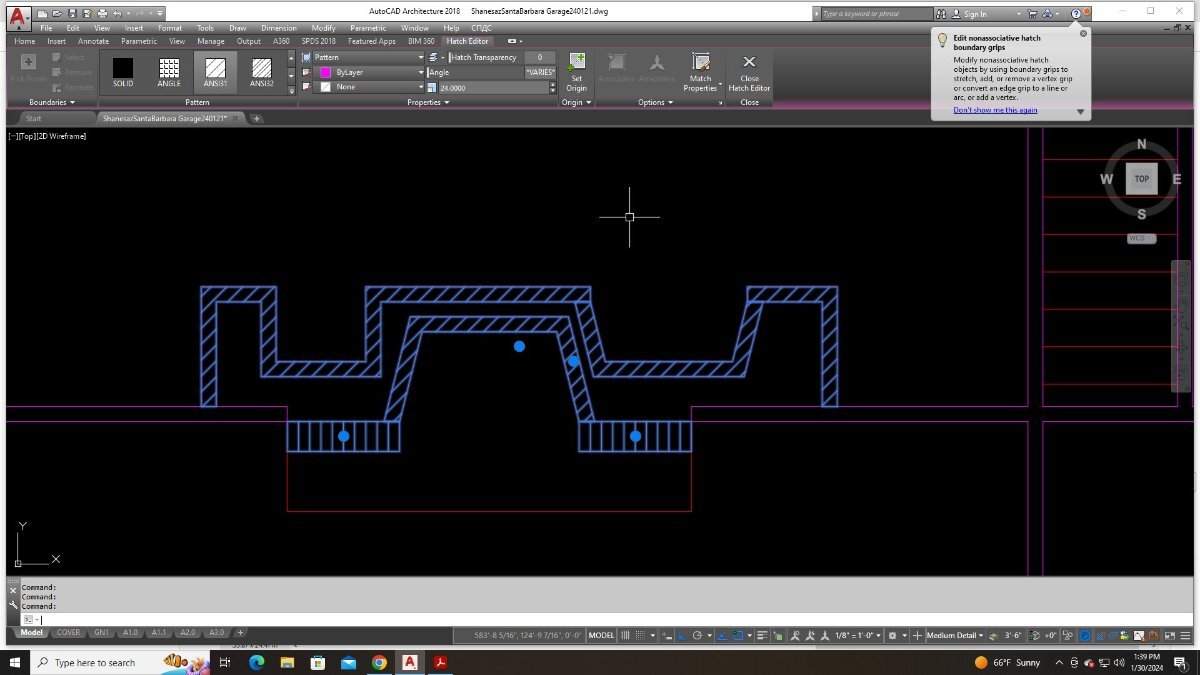

Macruairidh Posted January 21 Posted January 21 What should GRIPMULTIFUNCTIONAL VALUE BE? Mine is set to 3. I have never had this issue in other versions of AutoCAD. I attached my a screenshot of my Hatch Editor Quote

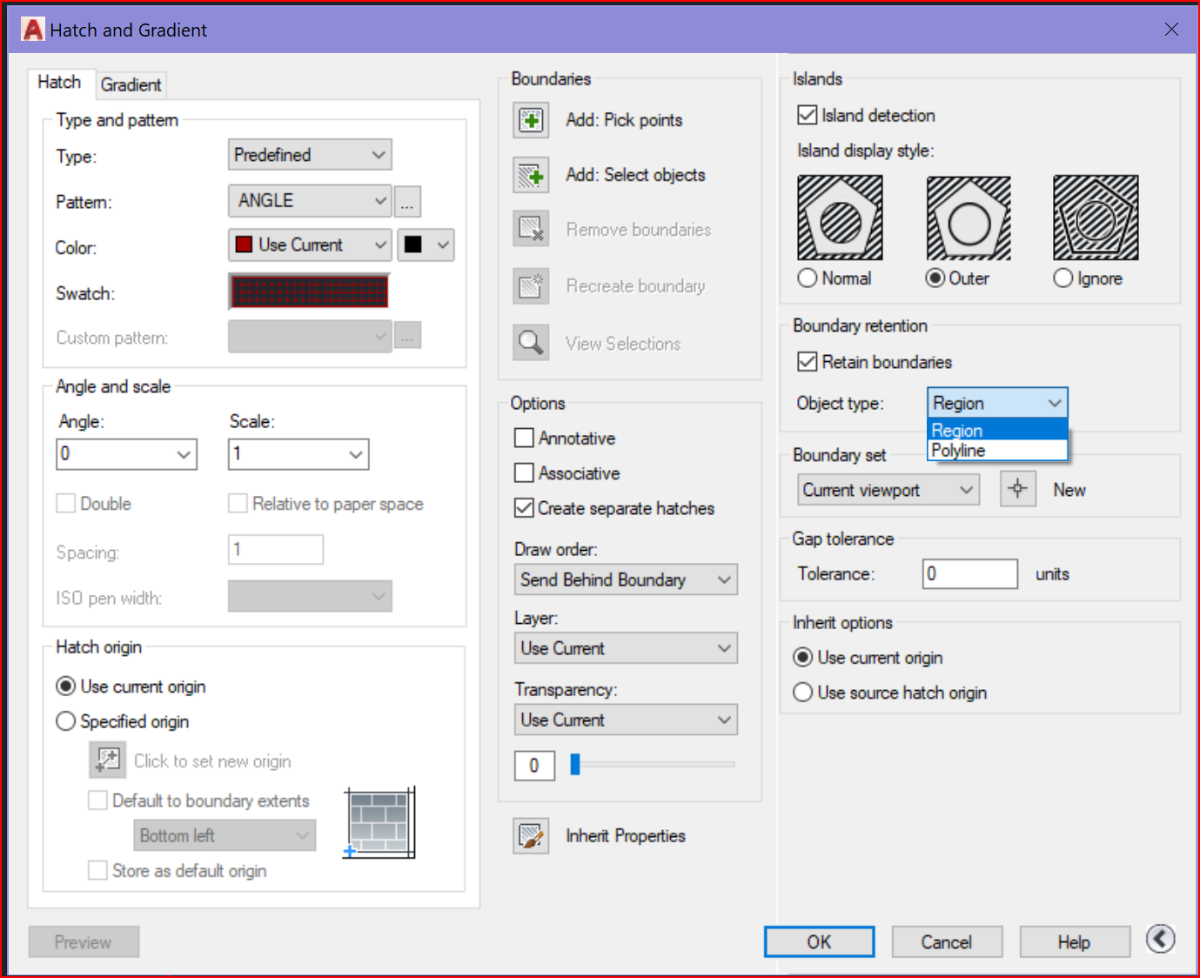

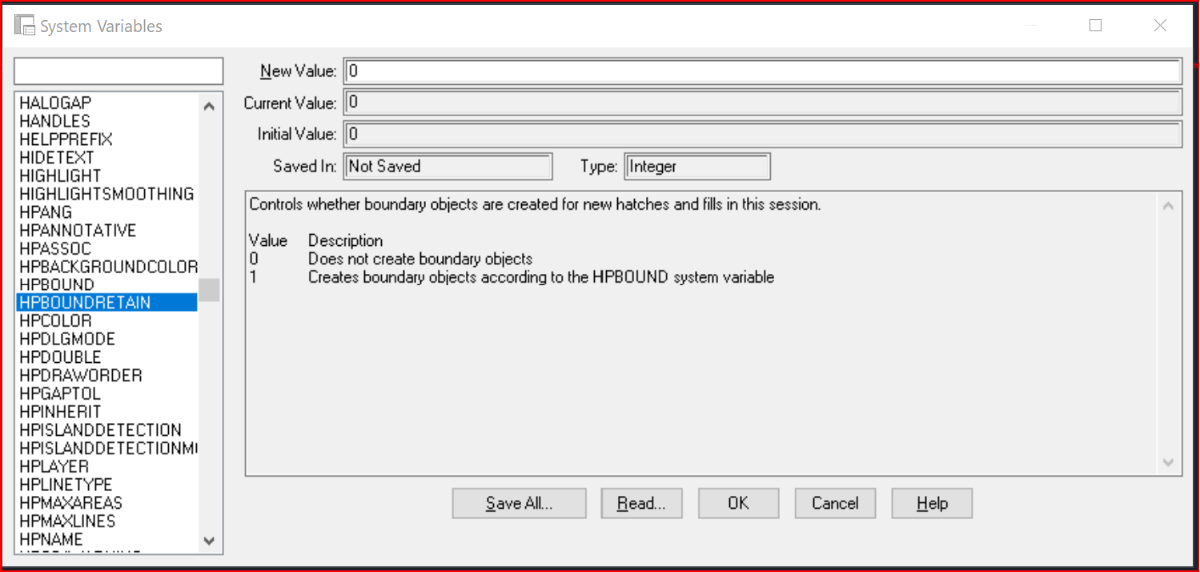

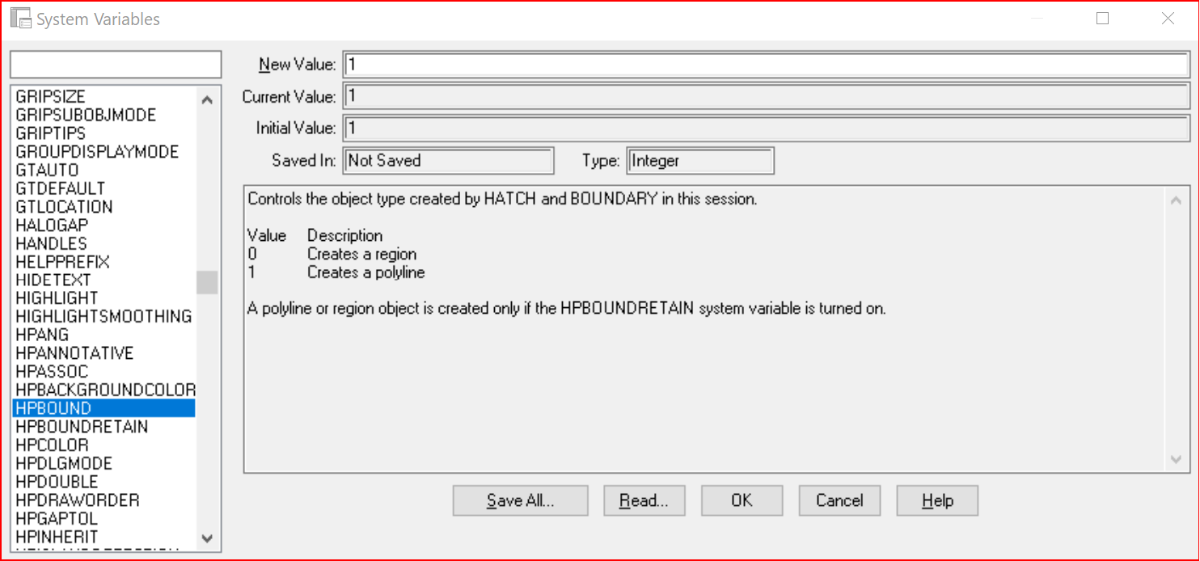

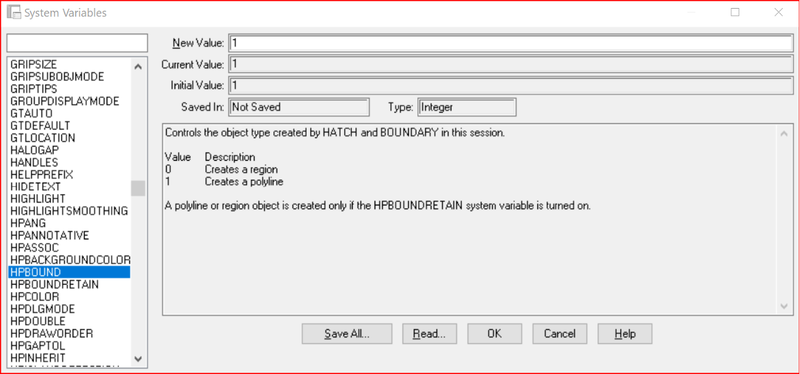

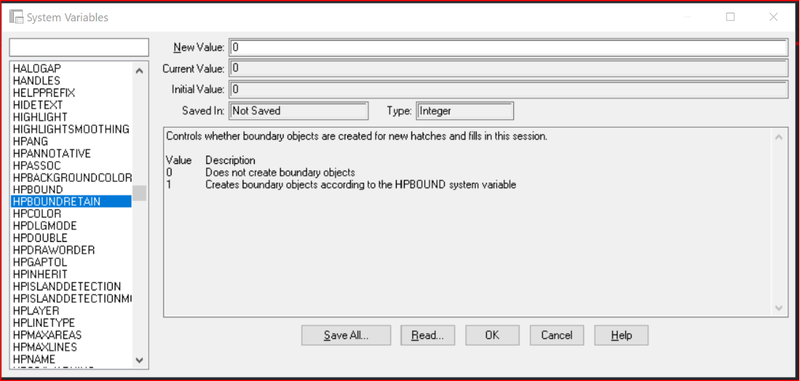

Dadgad Posted January 22 Posted January 22 (edited) Check your HPBOUND System Variable setting, as shown in the screenshot, taken from SYSVDLG (to accessthe belly of the beast). I believe you want it set to "1". You may need to check your HPBOUNDRETAIN variable setting too, and I believe you want it to be set to "1" also. In the screenshot, with the HATCH Settings dialog box fully opened, you can see the Island Detection Settings too, in case neither of the earlier suggestions has gotten you back on the tracks? Edited January 22 by Dadgad additional variable consideration again Quote

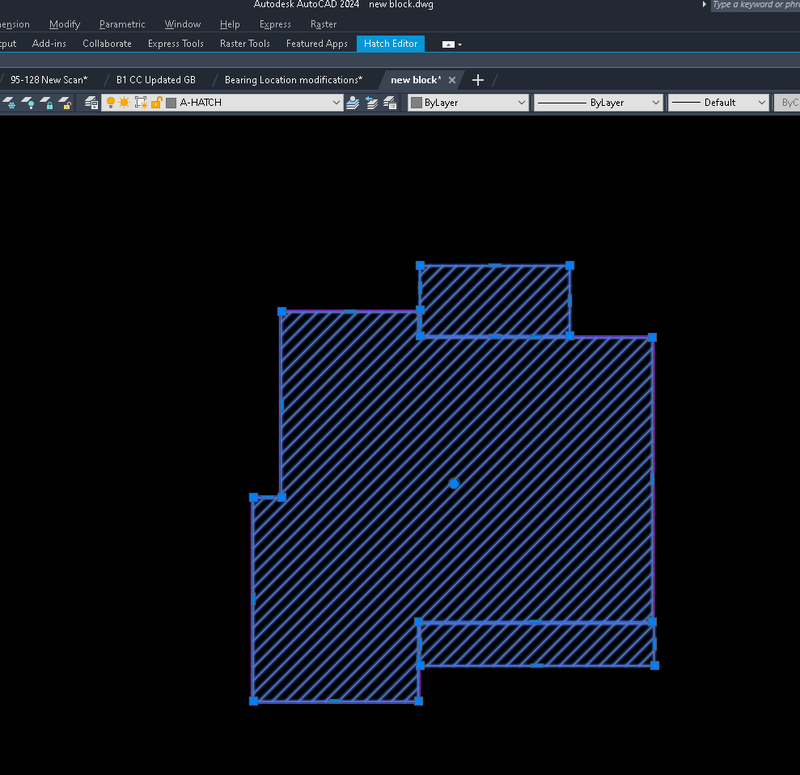

SLW210 Posted January 22 Posted January 22 16 hours ago, Macruairidh said: What should GRIPMULTIFUNCTIONAL VALUE BE? Mine is set to 3. I have never had this issue in other versions of AutoCAD. I attached my a screenshot of my Hatch Editor My Gripmultifuntion is 3 and I get grips on all my hatches, associated or not. You haven't posted a .dwg yet. Quote
SLW210 Posted January 22 Posted January 22 8 hours ago, Dadgad said: Check your HPBOUND System Variable setting, as shown in the screenshot, taken from SYSVDLG (to accessthe belly of the beast). I believe you want it set to "1". You may need to check your HPBOUNDRETAIN variable setting too, and I believe you want it to be set to "1" also. In the screenshot, with the HATCH Settings dialog box fully opened, you can see the Island Detection Settings too, in case neither of the earlier suggestions has gotten you back on the tracks? I get grips no matter those settings values. Quote
Macruairidh Posted January 30 Posted January 30 GRIPS=2; HPBOUND=1; HPBOUNDRETAIN=0; GRIPMULTIFUNCTIONAL=3......Still no Grips Quote
SLW210 Posted January 30 Posted January 30 You still haven't posted a .dwg. Could it be your graphics card/driver? Quote
guran Posted January 30 Posted January 30 On 1/21/2024 at 7:47 PM, Macruairidh said: What should GRIPMULTIFUNCTIONAL VALUE BE? Mine is set to 3. I have never had this issue in other versions of AutoCAD. I attached my a screenshot of my Hatch Editor In Hatch Edit press Recreate boundary Quote
SLW210 Posted January 30 Posted January 30 Should be grips with or without a boundary. With my settings, I get grips on all Hatches, associated or not region boundary or polyline. Macruairidh states no grips on any configuration, not sure a Sysvar will help, with the settings posted, at least on some configurations. Hence the need for a drawing. Quote
Macruairidh Posted January 30 Posted January 30 video card is a AMD Radeon(TM) RX 560 Series. My autocad Architectural 2014 worked fine. Quote
