Where i'm from, When creating topographic maps we are required to include a text inside the drawing that describes the property we are drafting. So for example if there is a square, it is desbribed by its corners (A,B,C,D) and its surface eg Surface = 200sq.m.



Is there someway from inside autocad that dynamically links this information to the text so when something is changed the text is updated?



So if i move a corner and the surface now becomes 220sq.m. it should update on its own so as to premptive a nasty omission



Also i need to define said shape, so it also got control of its corner, and i f i add a vertex it should now say A,B,C,D,E



Can someone help me with this

Posted

Re: area displayed as text automatically. My first thought would be to use something like Lee Mac's Areas to Field lisp routine.



http://lee-mac.com/areastofield.html



Can't help you with the second part of your question.

Posted
Re: area displayed as text automatically. My first thought would be to use something like Lee Mac's Areas to Field lisp routine.



http://lee-mac.com/areastofield.html



Can't help you with the second part of your question.



Thanks thats a nice start got 2 questions though.



-If something changes got to hit regen for text to update. Is there a way for this to happen automatically in case i forget to regen in which case the text remains the same



-How can i add this inside an existing mtext? Lets say i have an mtext sentence, in which i write "The surface of the hereby plost eaquals to [here goes field reference] sq.m."

Posted

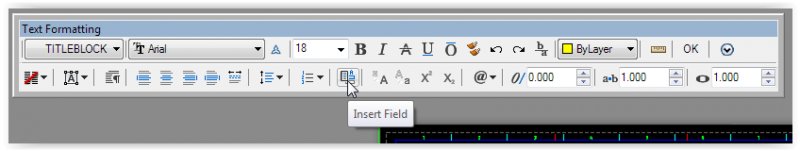

Inside mtext are fields so you pick an object like a pline then drill down a level to area and save.

Screen Shot 03-16-18 at 05.10 PM.jpg

Posted

Yes this worked, but i still need to regen each time i change the polyline shape. Is there a way for changes to happen automatically and the fields to be updated in case i forget to regen

Posted

You would need some form of reactor not my area of expertise. Some one else may suggest something, in mean time RE or make a key do RE like on F12 or an icon on a toolbar.
