change all z of point to 0.0

[new_mem]

Hello,



Can someone tell me the way change all z of point to 0.0 (attached file)







Thanks.

new block.dwg

[Dadgad]

You can do this without a lisp by simply selecting all of the points in Top view, and in Properties set the Z values (which will indicate Varies) to 0.0

[new_mem]

Thanks for repply.



But i mean startpoint or endpoint of ellip in file attached.



Sorry for last post not clear

[Roy_043]

None of the entities in the dwg are coplanar with the XY plane of the WCS.



You can try this:

Set the UCS to the WCS (_UCS > _World) and then use the _Flatten command.

[new_mem]

Hi,



Flatten done then object run to another location.

I mean write code lisp following but ellip not effect:

(defun c:test  ()
 (setq ss (ssget '((0 . "ARC"))))
 (setq n 0)
 (repeat (sslength ss)
   (setq arc (vlax-ename->vla-object (ssname ss n)))
   (setq str (vlax-get arc 'StartPoint))
   (setq end (vlax-get arc 'EndPoint))
   (setq cen (vlax-get arc 'Center))
   (setq str_n (list (car str) (cadr str) 0.0))
   (setq end_n (list (car end) (cadr end) 0.0))
   (setq cen_n (list (car cen) (cadr cen) 0.0))
   (command "_ARC" "C" "_none" cen_n "_none" str_n "_none" end_n)
   (vla-delete arc)
   (setq n (1+ n))
   )
 (princ)

 )

[Roy_043]

Maybe I have misunderstood, but how do you propose to change the Z coordinates of entities without moving them?

Notice that the normal of most entities is (0.00684151 -7.95332e-005 0.999977) instead of (0 0 1). So everything is slightly tilted relative to the XY plane of the WCS.

[new_mem]

Thanks Roy

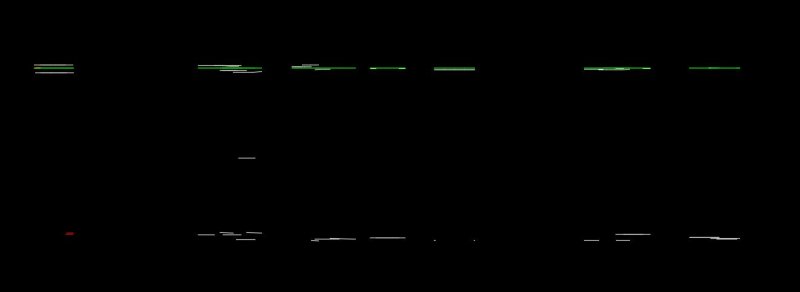

I mean convert object to pline (green) in WCS (file attached). Can you tell me do it ?

new block.dwg

[jamalflash]

Hello,



Can someone tell me the way change all z of point to 0.0 (attached file)







Thanks.



the command

flatten

or the lisp zeroz

[new_mem]

the command

flatten

or the lisp zeroz



Hi,

Zeroz not effec.

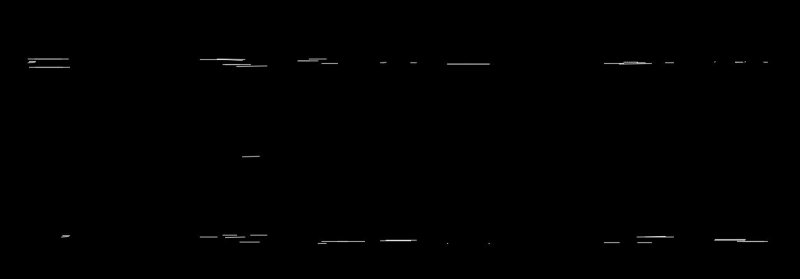

Flatten then object run miscellaneous.

[Roy_043]

Your drawing is very peculiar. Not only are there undesirable 3D effects, the elliptical arcs all seem to have a major and minor radius that is almost equal (in other words: they are virtually circular).



With that in mind here is a function, similar to your suggestion, to create arc replacements in the Z=0 plane for both the arcs and the elliptical arcs:

(vl-load-com)

(defun c:Test  ( / enm idx ss)
 (setq doc (vla-get-activedocument (vlax-get-acad-object)))
 (vla-endundomark doc)
 (vla-startundomark doc)
 (setvar 'cmdecho 0)
 (if (setq ss (ssget '((0 . "ARC,ELLIPSE"))))
   (repeat (setq idx (sslength ss))
     (setq enm (ssname ss (setq idx (1- idx))))
     (if (not (vlax-curve-isclosed enm))
       (progn
         (command
           "_.arc"
           "_non"
           (mapcar '* (vlax-curve-getstartpoint enm) '(1.0 1.0 0.0))
           "_non"
           (mapcar
             '*
             (vlax-curve-getpointatdist
               enm
               (* 0.5 (vlax-curve-getdistatparam enm (vlax-curve-getendparam enm)))
             )
             '(1.0 1.0 0.0)
           )
           "_non"
           (mapcar '* (vlax-curve-getendpoint enm) '(1.0 1.0 0.0))
         )
         (entdel enm)
       )
     )
   )
 )
 (setvar 'cmdecho 1)
 (vla-endundomark doc)
 (princ)
)

The procedure would be:

1. Switch to the WCS.

2. Substitute all (elliptical) arcs using c:Test.

3. Flatten all polylines.

4. Use the _Join command.

5. Some elements will not join to form closed polylines. This is due to inaccuracies.

[new_mem]

Your drawing is very peculiar. Not only are there undesirable 3D effects, the elliptical arcs all seem to have a major and minor radius that is almost equal (in other words: they are virtually circular).



With that in mind here is a function, similar to your suggestion, to create arc replacements in the Z=0 plane for both the arcs and the elliptical arcs:

(vl-load-com)

(defun c:Test  ( / enm idx ss)
 (setq doc (vla-get-activedocument (vlax-get-acad-object)))
 (vla-endundomark doc)
 (vla-startundomark doc)
 (setvar 'cmdecho 0)
 (if (setq ss (ssget '((0 . "ARC,ELLIPSE"))))
   (repeat (setq idx (sslength ss))
     (setq enm (ssname ss (setq idx (1- idx))))
     (if (not (vlax-curve-isclosed enm))
       (progn
         (command
           "_.arc"
           "_non"
           (mapcar '* (vlax-curve-getstartpoint enm) '(1.0 1.0 0.0))
           "_non"
           (mapcar
             '*
             (vlax-curve-getpointatdist
               enm
               (* 0.5 (vlax-curve-getdistatparam enm (vlax-curve-getendparam enm)))
             )
             '(1.0 1.0 0.0)
           )
           "_non"
           (mapcar '* (vlax-curve-getendpoint enm) '(1.0 1.0 0.0))
         )
         (entdel enm)
       )
     )
   )
 )
 (setvar 'cmdecho 1)
 (vla-endundomark doc)
 (princ)
)

The procedure would be:

1. Switch to the WCS.

2. Substitute all (elliptical) arcs using c:Test.

3. Flatten all polylines.

4. Use the _Join command.

5. Some elements will not join to form closed polylines. This is due to inaccuracies.



Yep, that is what i said.

Thank you very much Roy.

But in my test drawing the ellip RED error. Why ?

[Roy_043]

What do you mean by 'error'? In my test the procedure I have outlined works fine on that shape: the result is a closed polyline.

[new_mem]

What do you mean by 'error'? In my test the procedure I have outlined works fine on that shape: the result is a closed polyline.

Hi Roy

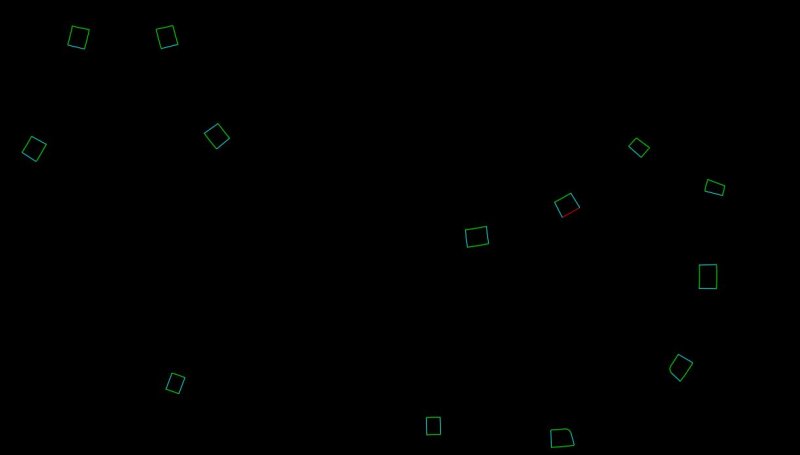

This ellip color red still error.

new block.dwg

[Roy_043]

In BricsCAD this ellipse is replaced successfully. My guess is that the huge coordinates and the very small difference between the StartAngle and EndAngle are causing a problem in AutoCAD: The arc is almost a straight line. You can try improving the c:Test function to account for this specific case.



The BIG question is of course who or what process produced this cr*ppy drawing?

[Grrr]

Heres a similar thread located in the 'Application Archive' section:

http://www.cadtutor.net/forum/showthread.php?2019-Flatten

But I guess is for WCS only.

[new_mem]

In BricsCAD this ellipse is replaced successfully. My guess is that the huge coordinates and the very small difference between the StartAngle and EndAngle are causing a problem in AutoCAD: The arc is almost a straight line. You can try improving the c:Test function to account for this specific case.



The BIG question is of course who or what process produced this cr*ppy drawing?



Thanks for suggestion, Roy.

This drawing following from consultant. Crazy!

Xr-Pool.dwg

[new_mem]

Heres a similar thread located in the 'Application Archive' section:

http://www.cadtutor.net/forum/showthread.php?2019-Flatten

But I guess is for WCS only.



Thanks Grrr, but it still not work for drawing.
