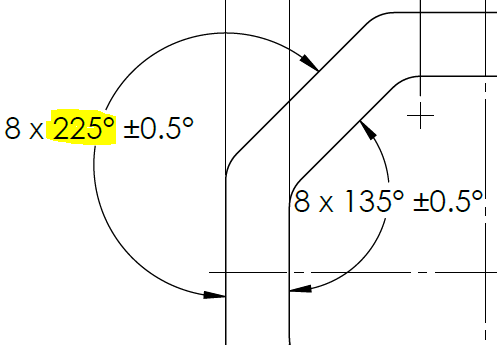

gbradley Posted October 30, 2017 Posted October 30, 2017 I've got a customer who has drawn a 45° angle as 225° I don't know why, but I wanted to draw it that way to please them. I can't figure out how to do it. Any suggestions? Inventor 2017 Quote
ReMark Posted October 30, 2017 Posted October 30, 2017 I'm sure you know how to draw a line at 225 degrees. Is the problem more to do with calling it out as such using the dimensioning capabilities of Inventor? Quote
gbradley Posted October 30, 2017 Author Posted October 30, 2017 Yes, I'd like to use Inventor Dimension tool. Quote

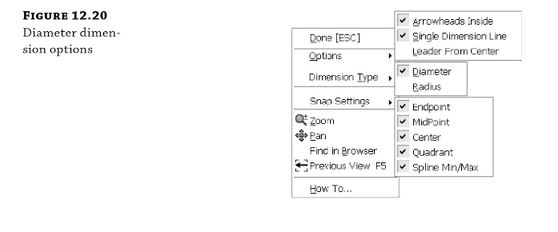

ReMark Posted October 30, 2017 Posted October 30, 2017 Yes, I'd like to use Inventor Dimension tool. Sorry, I am not familiar with it. Is there an option to designate in which direction 0 degrees should be and what direction angles should be turned? After you select the Dimensioning Tool are there any right-click options? Quote

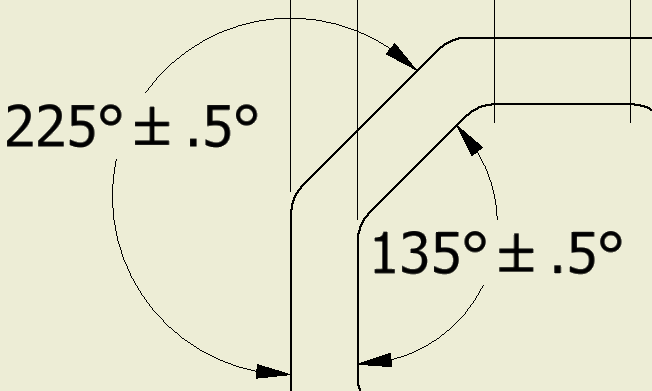

gbradley Posted October 30, 2017 Author Posted October 30, 2017 ... After you select the Dimensioning Tool are there any right-click options? Oh good idea. Right Click Opposite Angle gives me 225° Angle, I just have to figure out how to place it. Quote
ReMark Posted October 30, 2017 Posted October 30, 2017 I got you this far...the rest is up to you. Good luck. Quote
