sanchez Posted September 5, 2017 Posted September 5, 2017 It seems that I am having poor luck in my search for technical information. The company I work for has recently bought out a defunct wire company and is looking to rejuvenate it. If anyone here would be willing to share some prints showing the format used in the design of wire shaping machinery and tools his or her help would be appreciated. Diego Quote
shift1313 Posted September 6, 2017 Posted September 6, 2017 Sanchez, i don't have anything for you but a question. Did you get any manufacturing contacts along with the company? That might be a good place to start. Quote
welldriller Posted September 6, 2017 Posted September 6, 2017 This may not be any help but would not hurt to check out the site below https://www.accessengineeringlibrary.com/browse/handbook-of-die-design-second-edition http://web.mit.edu/2.75/fundamentals/FUNdaMENTALs%20Book%20pdf/FUNdaMENTALs%20Topic%207.PDF Quote

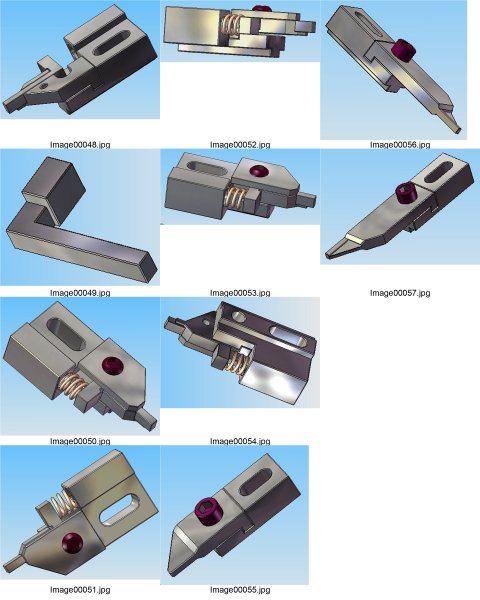

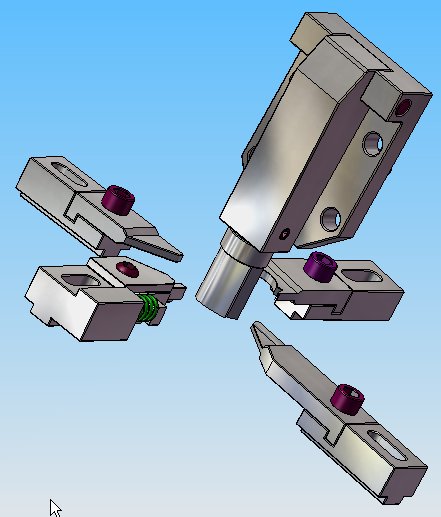

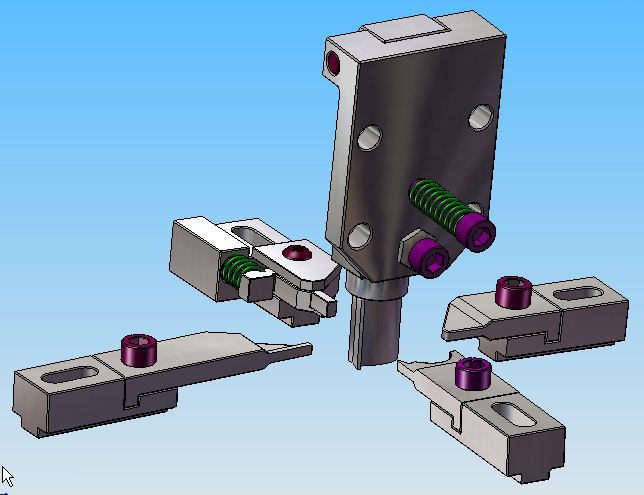

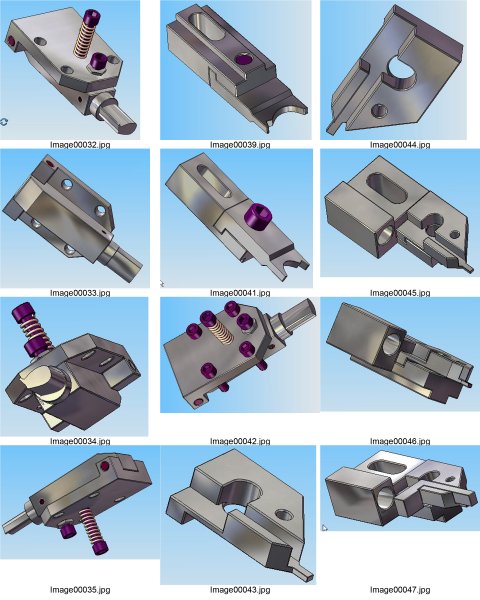

chubarka Posted September 6, 2017 Posted September 6, 2017 Sanchez, With regards to a format that you are looking for, there's nothing carved in stone on this anywhere in the Industry. If you are making 2-D prints in AutoCAD for example, the format that has been in place since the Industrial revolution started is still acceptable, Front, Side, and top views are pretty standard. Since you are on a Solidworks Forum, 3-D Isometric views are fine. I can't give you any AutoCAD or Solidworks files, but you are welcome to the screen shots that I enclose. Hope they are of some help. Chubarka Quote
